SET-UP AND INSTALLATION GRT8100 OPERATOR MANUAL
4-10 Published 3-25-2020, Control # 595-10
Hook block
Sheaves
Boom Nose
Dead End
Upper Boom
Nose Sheaves
Bottom Boom
Nose Sheaves

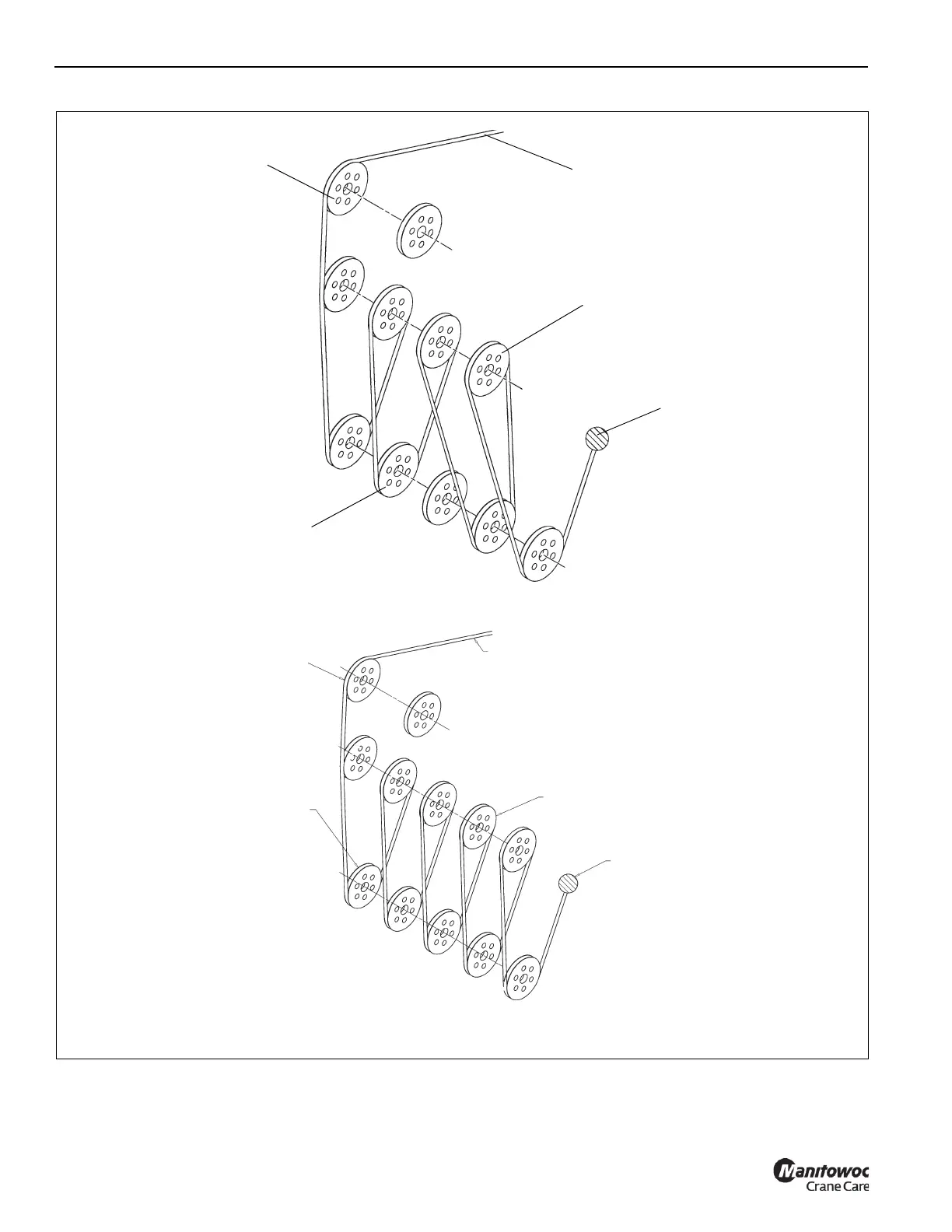

FIGURE 4-11 continued
To M ain Ho is t
EIGHT PARTS LINE
TEN PARTS LINE
Upper Boom
Nose Sheaves
Hook block
Sheaves
Boom Nose
Dead End
Bottom Boom
Nose Sheaves
To Main Hoist
