Manitowoc Grove GRT8100

SET-UP AND INSTALLATION GRT8100 OPERATOR MANUAL
4-14 Published 3-25-2020, Control # 595-10
Hook Block
Dead End
FIGURE 4-11 continued

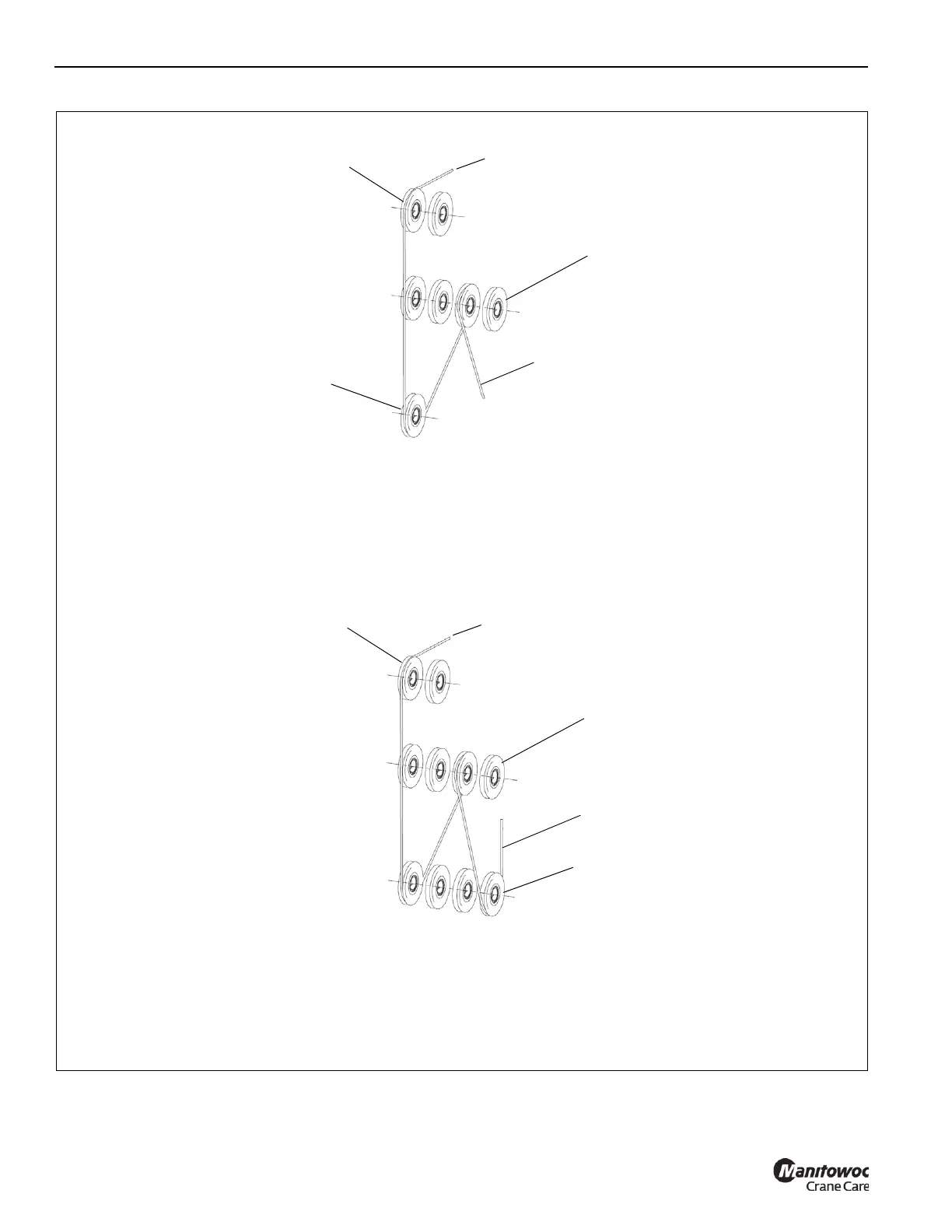

4 Parts Line - 4 Sheave Hook Block
3 Parts Line - 1 Sheave Hook Block
Boom Nose
Dead End
Lower Boom
Nose Sheaves
To Main Hoist
Hook Block
Sheaves
8993-13
Upper Boom Nose
Sheaves
To Main Hoist
Hook Block
Sheaves
Upper Boom Nose
Sheaves
Lower Boom
Nose Sheaves
8993-14
