SET-UP AND INSTALLATION GRT8100 OPERATOR MANUAL
4-20 Published 3-25-2020, Control # 595-10
Hook Block
Dead End
Auxiliary Boom
Nose Sheave
Lower Boom
Nose Sheaves
FIGURE 4-11 continued
To M ain Ho is t

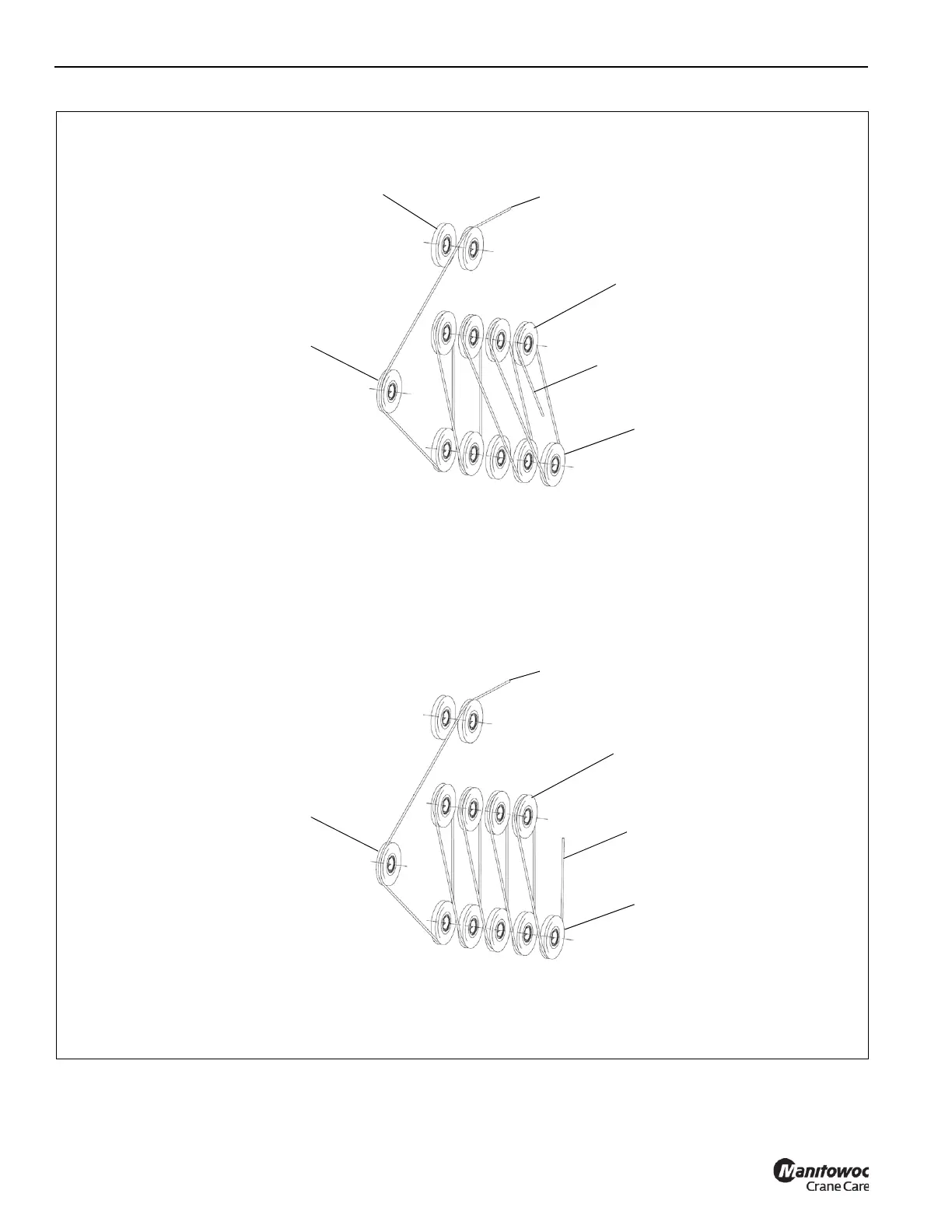

9 Parts Line - 5 Sheave Hook Block with Auxiliary Boom Nose
10 Parts Line - 5 Sheave Hook Block with Auxiliary Boom Nose
Boom Nose
Dead End
Hook Block
Sheaves
Lower Boom
Nose Sheaves
To M ain H ois t
Upper Boom Nose
Sheaves
Hook Block
Sheaves
8993-1
8993-2
Auxiliary Boom
Nose Sheave
