GRT8100 OPERATOR MANUAL SET-UP AND INSTALLATION
4
19. If required, erect the boom extension fly section. Refer to
Erecting Boom Extension Fly Section, page 4-23.
20. Rig hoist cable.
21. If required, set offset. Refer to the applicable procedures
in this section.
1
3
2
4
3
4
5
6
6
7
8
6055

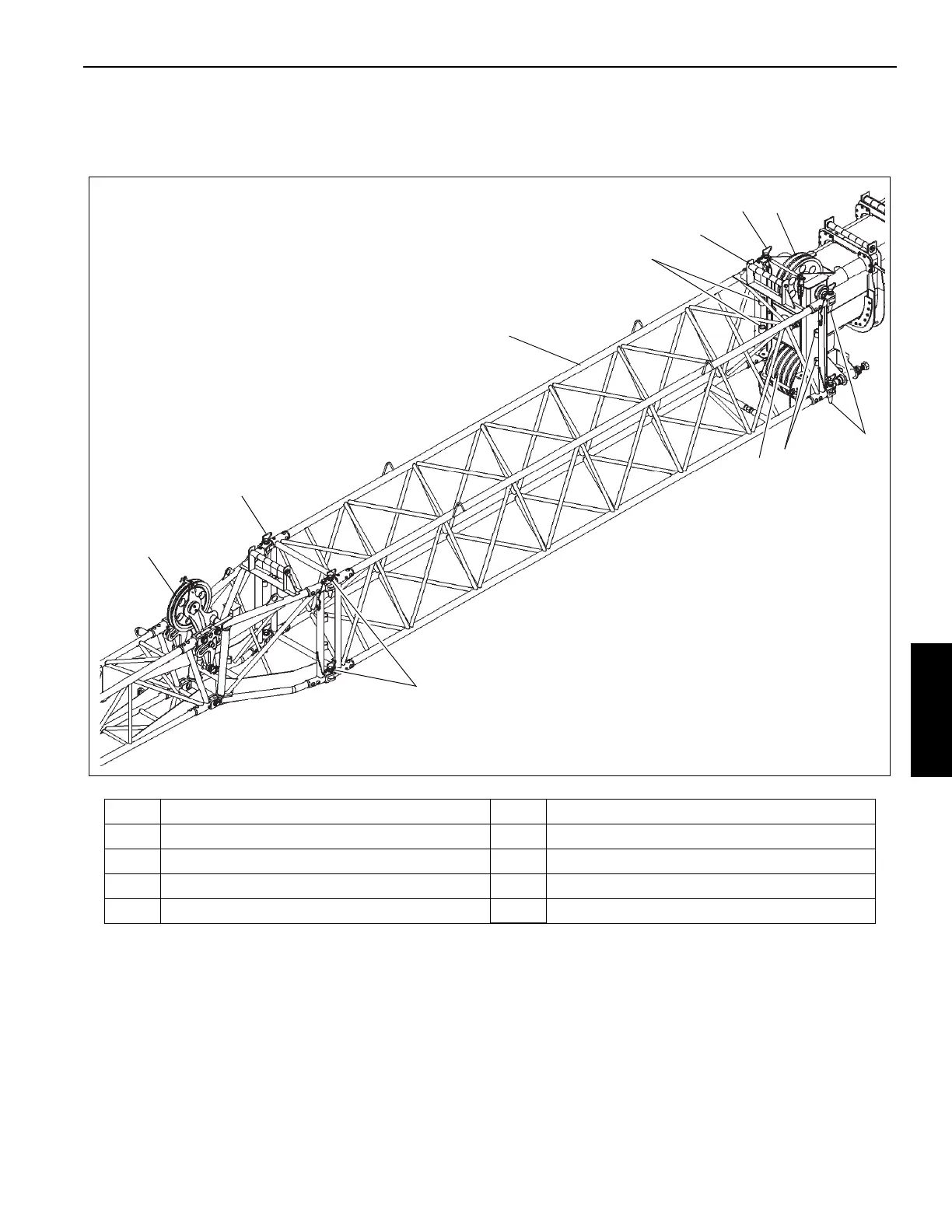

FIGURE 4-21
Item Description Item Description
1 Boom Nose Upper Sheaves 5 6.1 m (20 ft) Insert
2 Cable Roller 6 Boom Extension Base Section Attachment Pins
3 Attachment Pins 7 Boom Nose Lower Sheaves
4 Attachment Pin Stowage Holder 8 Boom Extension Mast Assembly
