OPERATING CONTROLS AND PROCEDURES GRT8100 OPERATOR MANUAL
3-32 Published 3-25-2020, Control # 595-10
When a limitation is active, the Main Screen shows an
indicator for the limitation (in addition to audible alarms and
potentially effects on the crane functions). Figure 3-19 shows
the Main Screen example; the height limitation is active.
There are similar symbols for the other limitations; Table 3-1:
shows the boom up/down (boom angle) limitation active
symbol; the radius limitation active symbol; the swing
limitation active symbol; the wall limitation active symbol. If
there are multiple limitations active (such as a swing
limitation and a height limitation), then the appropriate
symbols are cycled on the display with a time interval.

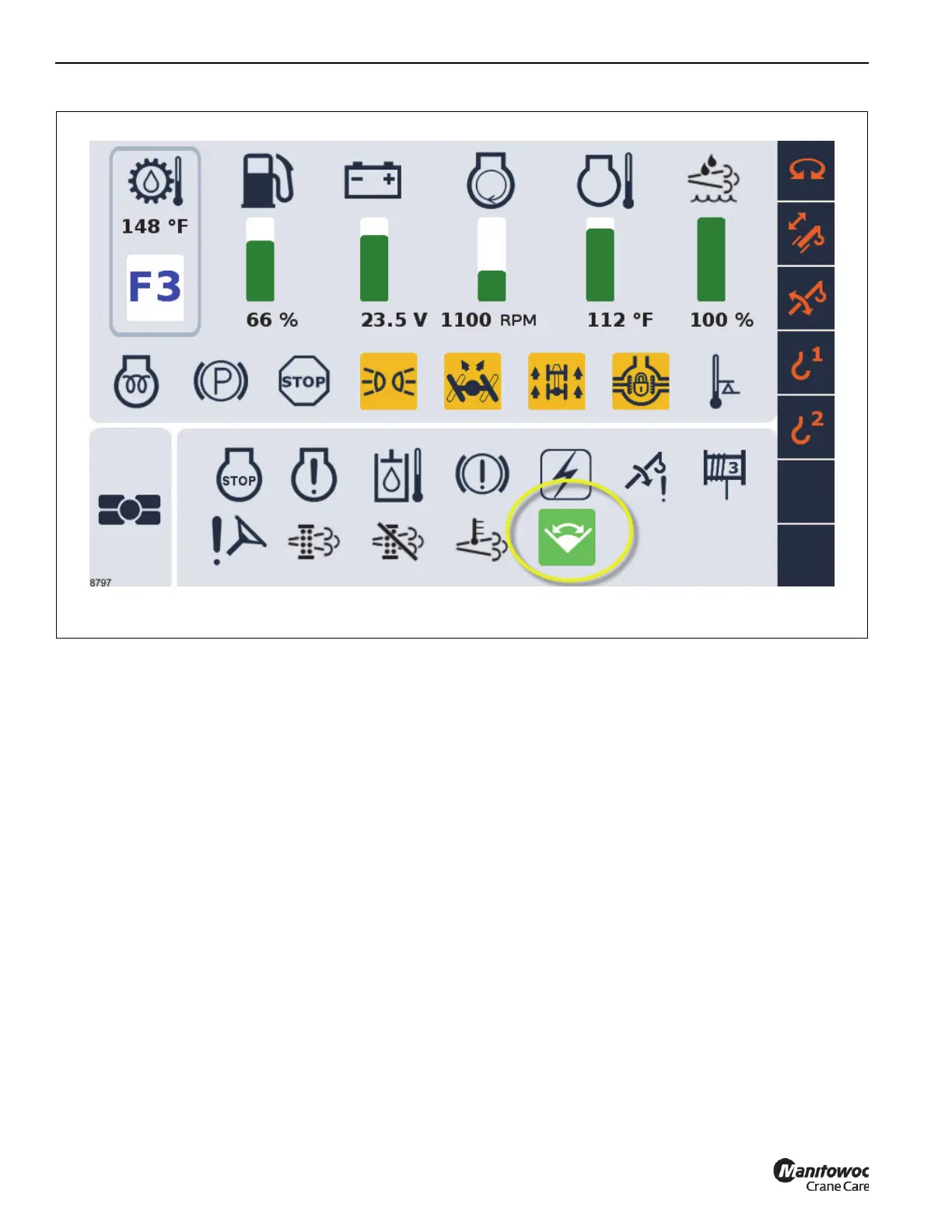

FIGURE 3-18
8797
WRL Limitation is Enabled indicator on Main Screen (green background for symbol)
