Installation and Service Manual
INSTALLATION

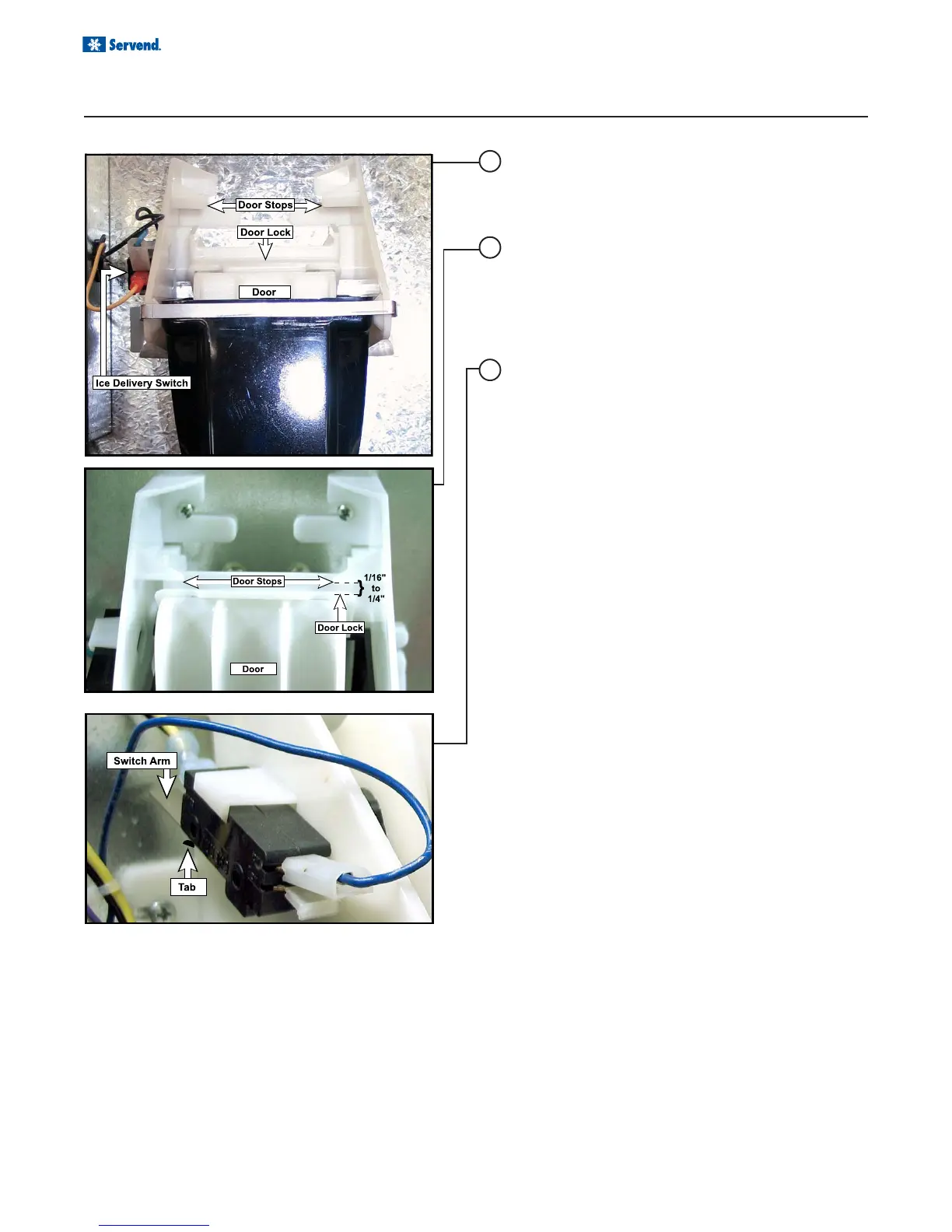

ROCKING CHUTE ICE DELIVERY SWITCH ADJUSTMENT
1 To properly adjust the switch, first unplug the power
cord to the unit then remove the merchandiser. This
will give you access to the ice delivery switch lo-
cated on the left side of the rocking chute.
2 Begin by observing the chute by slowly pushing
against the rocking chute. When the ice delivery
switch clicks, measure the distance from the door
stops on the rocking chute bracket to the door. The
distance between the two should be no more than
1/4", but no less than 1/16".
3 The left side of the rocking chute has a tab that
pushes up on the ice delivery switch. To adjust it,
use needle nose pliers and bend the arm of the
switch up or down in order to change the point where
the tab makes contact with the switch arm.
