25
Installation and Service Manual
Clean and sanitize the ice bin:
1. Unplug unit and remove all ice from the ice bin.
2. Mix a solution of mild detergent to clean the dispenser
bin and components.
3. Wash the ice bin using a sponge and the mild deter-
gent solution.
4. Using the mild detergent solution and a soft bristle brush
or clean cloth, clean the following dispenser parts:
• Entire bin
• Paddle wheel
• Paddle wheel area
• Agitator
• Paddle wheel pin
• Ice Chute
• Rear bushing
• Motor shaft
• Strip lids (where applicable)
5. Rinse all the parts in clean, running water.
6. Prepare 2 gallons of sanitizing solution by mixing a
1
/
2
ounce of household bleach (that contains 5.25% so-
dium hypochlorite) with 2 gallons of 120°F water. The
mixture should not exceed 100 PPM of chlorine. Or
mix a solution of any approved sanitizer, following the
directions for mixing and applying the sanitizer..
7. Sanitize the ice bin and cold plate with the sanitizing
USER MAINTENANCE
MONTHLY CLEANING
solution for at least 10 seconds.
8. Allow to air dry. Do not rinse.
Re-assembling the dispenser parts:
9. Re-assemble parts in the following order:
• Bin liner
• Paddle wheel
• Agitator
• Paddle wheel pin
• Ice chute
• Merchandiser
10. Hand tighten all knurled fasteners.
11. Pour in fresh, sanitary ice and replace the plastic lid
on the top of the dispenser.
12. Plug in the unit’s electrical cord.
13. Check for proper ice dispensing.

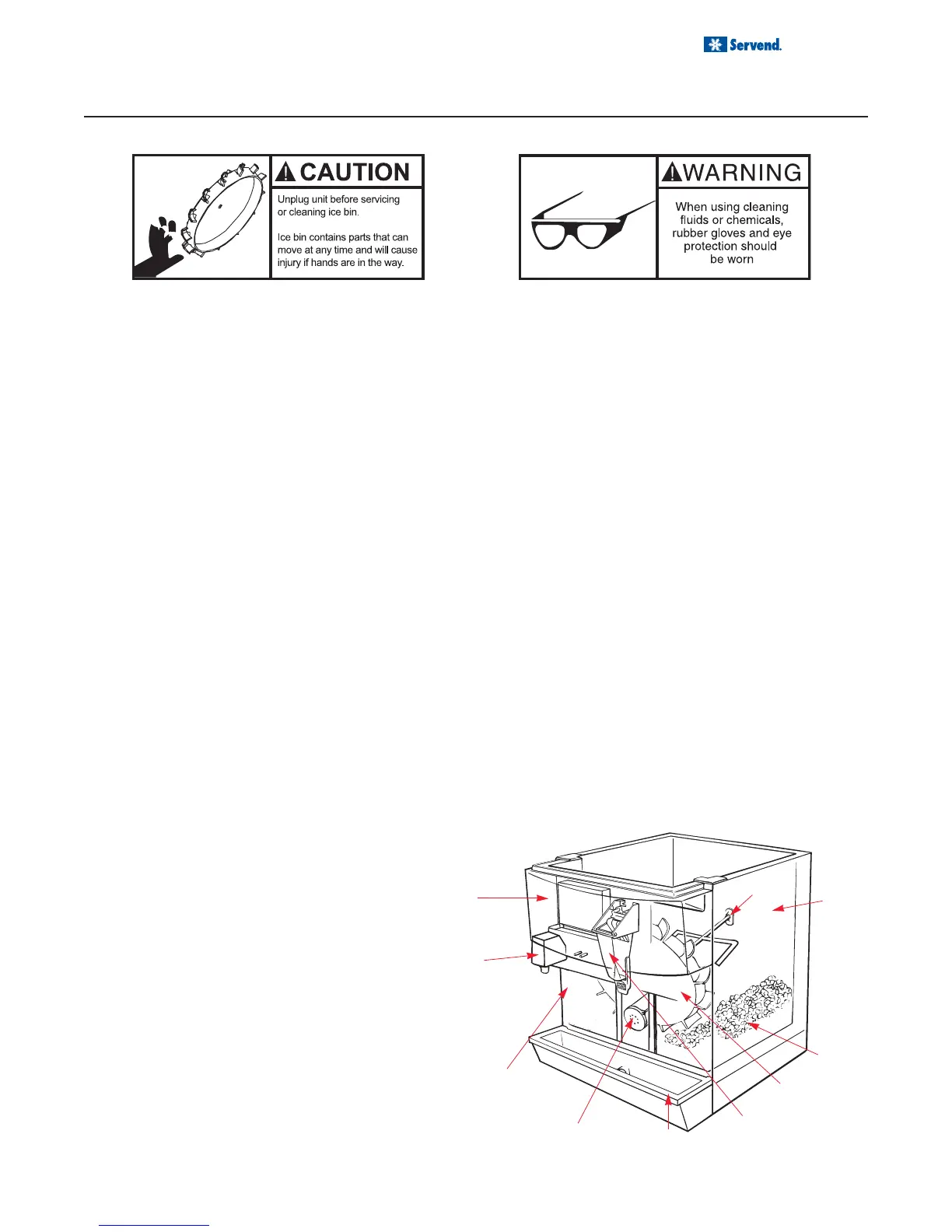

Ice
Paddle wheel
Rocking chute
ice dispense chute
Drain pan
Gear motor
Water line
Beverage valve
(option)
Removable front
merchandiser panel
Ice bin
Agitator
