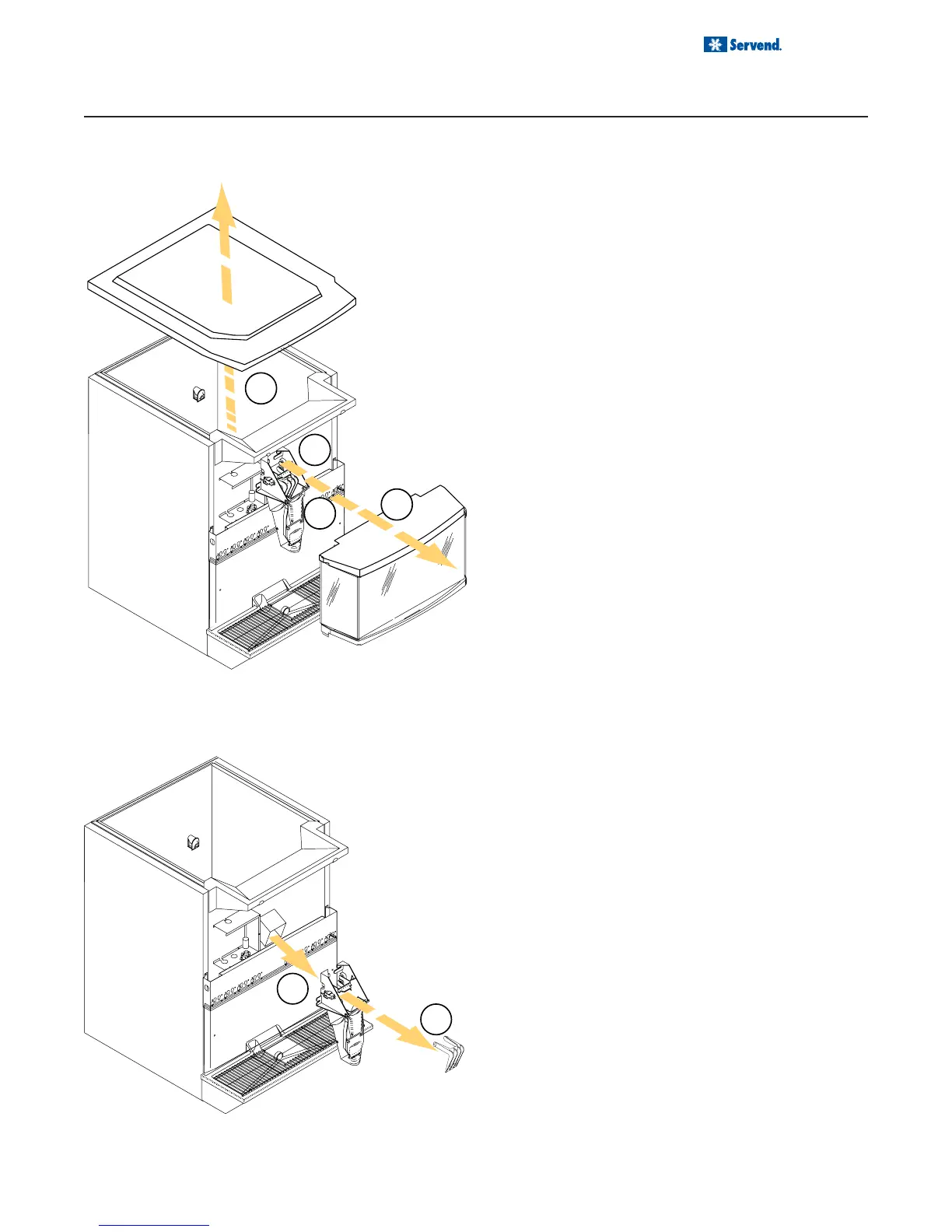

Disassemble the rocking chute:
1. Loosen the two knurled fasteners that hold the mer-
chandiser in place.
2. Remove the merchandiser.
3. Remove outer bracket.
4. Remove door lock.
5. Remove door.
6. Remove ice chute.
7. Model MD-302 has two rocking chutes. Remove both
rocking chutes using the same procedure above.
Disassemble the solenoid style chute:
1. Loosen the knurled fastener on both sides of the
outer chute and remove chute from the dispenser.
