Section 2 Installation
PLUMBING CIRCUIT DIAGRAMS  MODELS 42, 44 AND SC1000

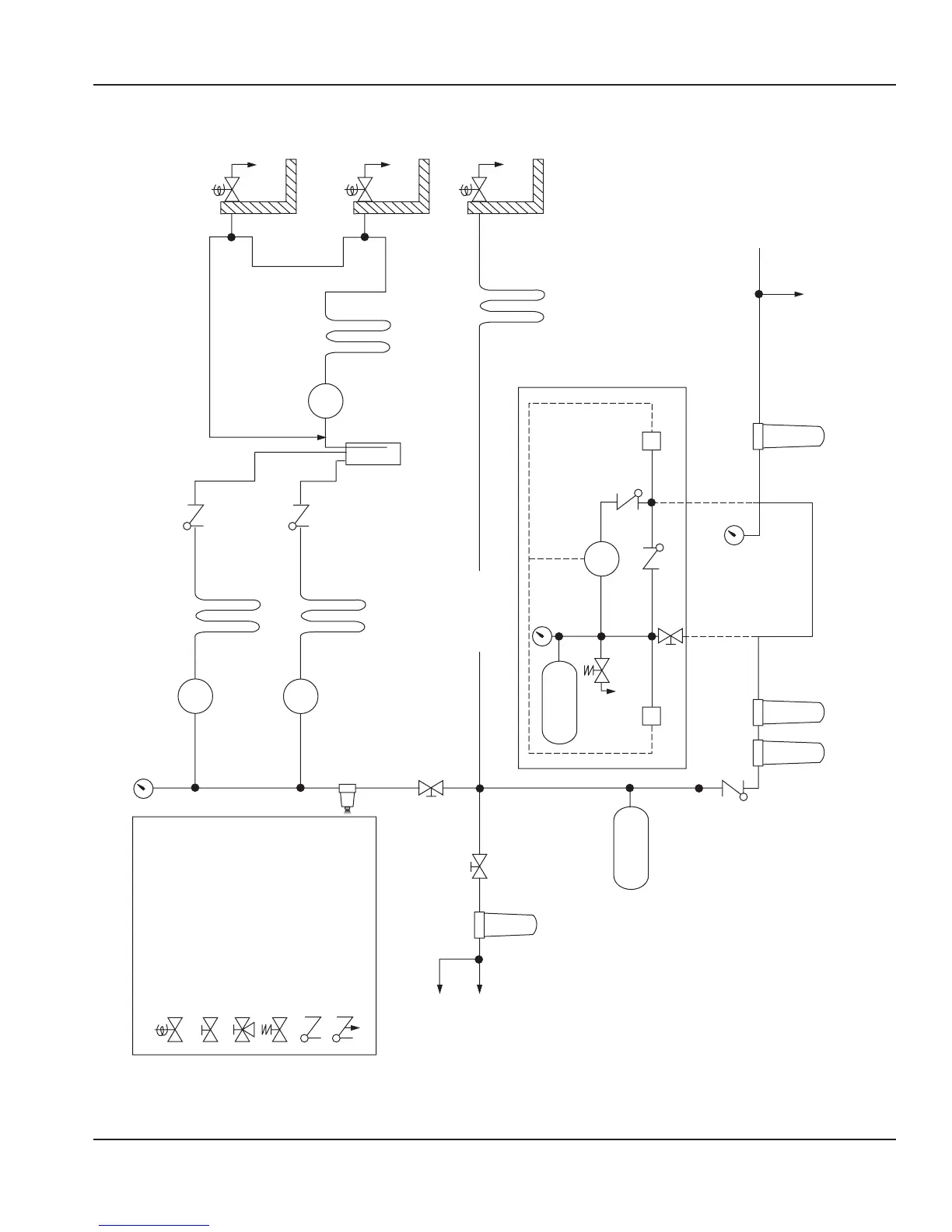

Pressurized Water Circuit Diagram
To Coffee
Machine
To Ice
Machin
e
Legend
Phosphate
Feeder
(optional)
Accumulator
Tank
(optional)
To
Plain Water
Valve
Filtered Water
Pressure Gauge
Primary
Carbonator
Cooling
Coil
Carbonator
Tank
Cooling
Coil
Cooling
Coil
Circulator
Pump
Tower
Tower
Tower
Optional Constant Water
Pressure Booster Module
Booster
Tank
High
Pressure
Switch
H
L
High
Pressure
Gauge
Low
Pressure
Switch
Constant Pressure
Booster Pump
Pump
Pressure Regulator
(55 psi [3.8 bar])
Low
Pressure
Gauge
Fine Filters
(optional)
Coarse Filter
(optional)
To Optional
Water-Cooled
Condenser
Primary
Water Supply
Booster Module
Replacement Line
— Electric Solenoid V
alve
— Manual Ball V
alve
— 3-way Ball V
alve
— Pressure Relief V
alve
— Check V
alve, Ball Type
— Check V
alve,
Vent to Atmosphere
Secondary Carbonator
(Not Used On 42M)
Cooling
Coil
