Manitowoc QM45 Series Technician's Handbook

78 Part Number 80-01111-9 7/10
WATER-COOLED ICE MACHINES
1. Perform steps 1-6 under “Self-contained Air-
cooled Ice Machines” on page 77.
2. Disconnect the incoming water and drain lines
from the water-cooled condenser.
3. Insert a large screwdriver between the bottom
spring coils of the water regulating valve. Pry
upward to open the valve.

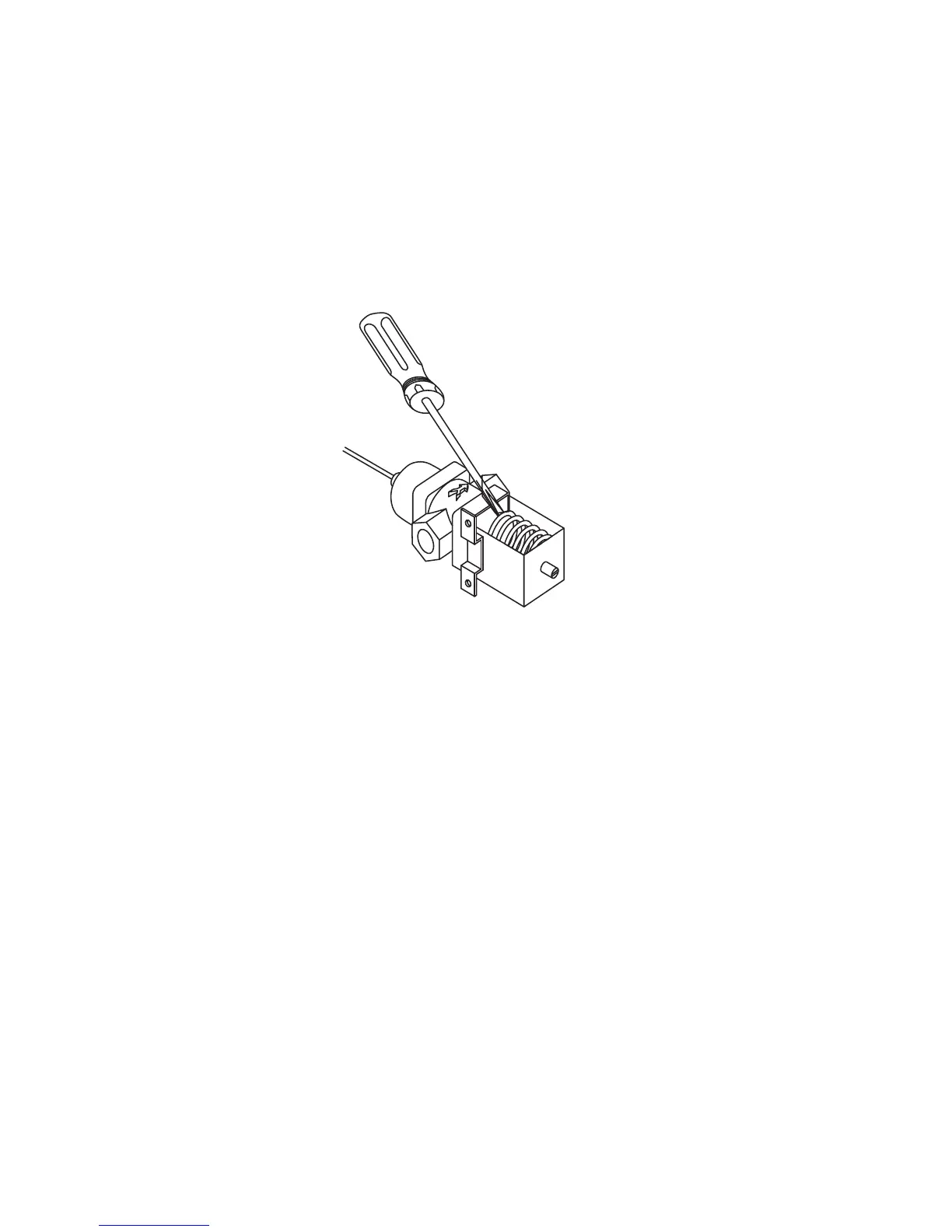

Pry Open the Water Regulating Valve
4. Hold the valve open and blow compressed air
through the condenser until no water remains.
SV1624

Manitowoc QM45 Series Specifications

General

Brand	Manitowoc
Model	QM45 Series
Category	Ice Maker
Language	English
