Maintenance Section 4
14
Part Number 040001360 6/14

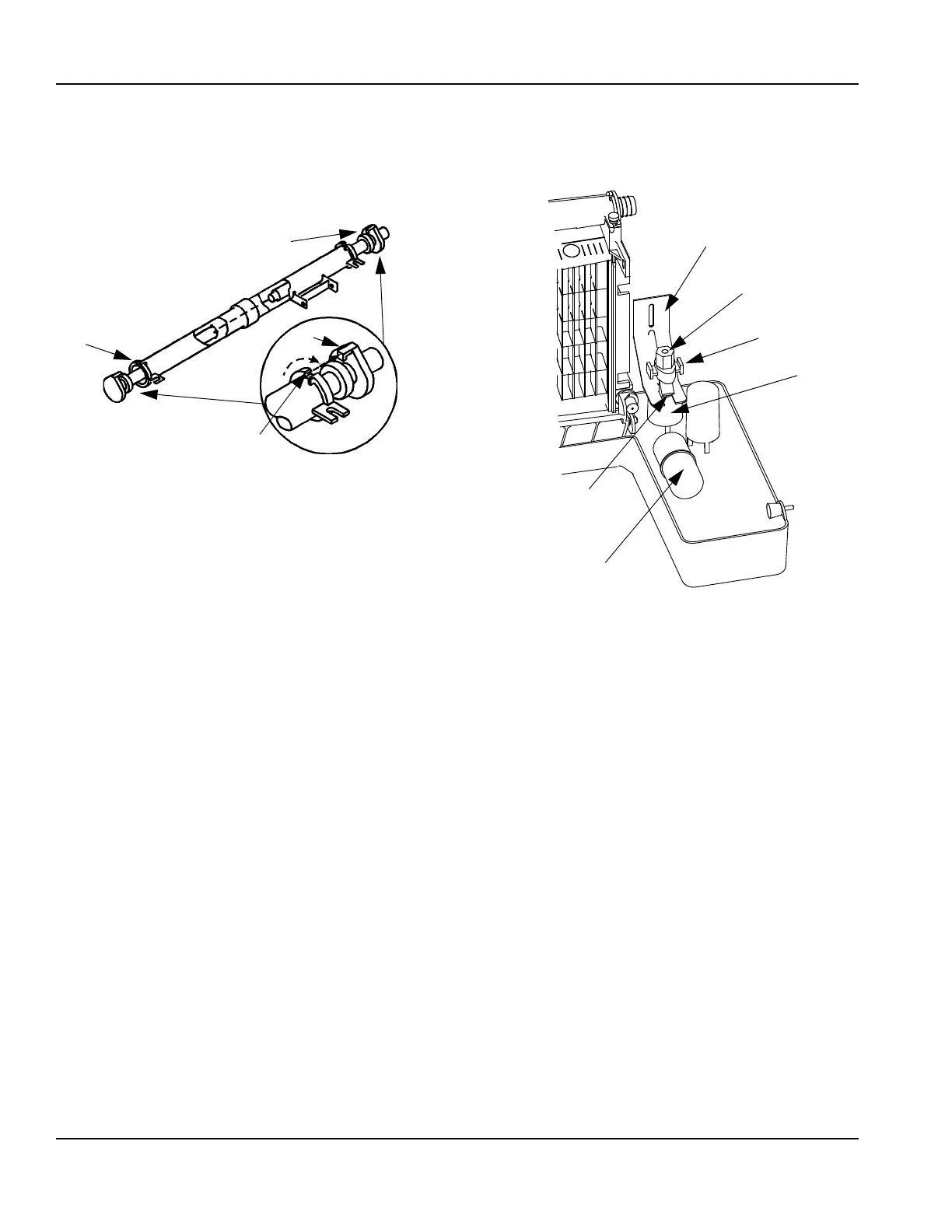

Disassembly
• Twist both of the inner tube ends until the tabs line up
with the keyways.
• Pull the inner tube ends outward.
F. Remove the Float Valve
• Turn the splash shield counterclockwise one or two
turns.
• Pull the float valve forward and off the mounting
bracket.
• Disconnect the water inlet tube from the float valve at
the compression fitting.
• Remove the cap and filter screen for cleaning.
INNER TUBE
TAB
KEYWAY
INNER TUBE
FLOAT VALVE
BRACKET
COMPRESSION
FITTING
CAP AND
FILTER SCREEN
SHUT-OFF VALVE
SPLASH SHIELD
FLOAT
