Section 4 Maintenance
Part Number 040001360 6/14 15

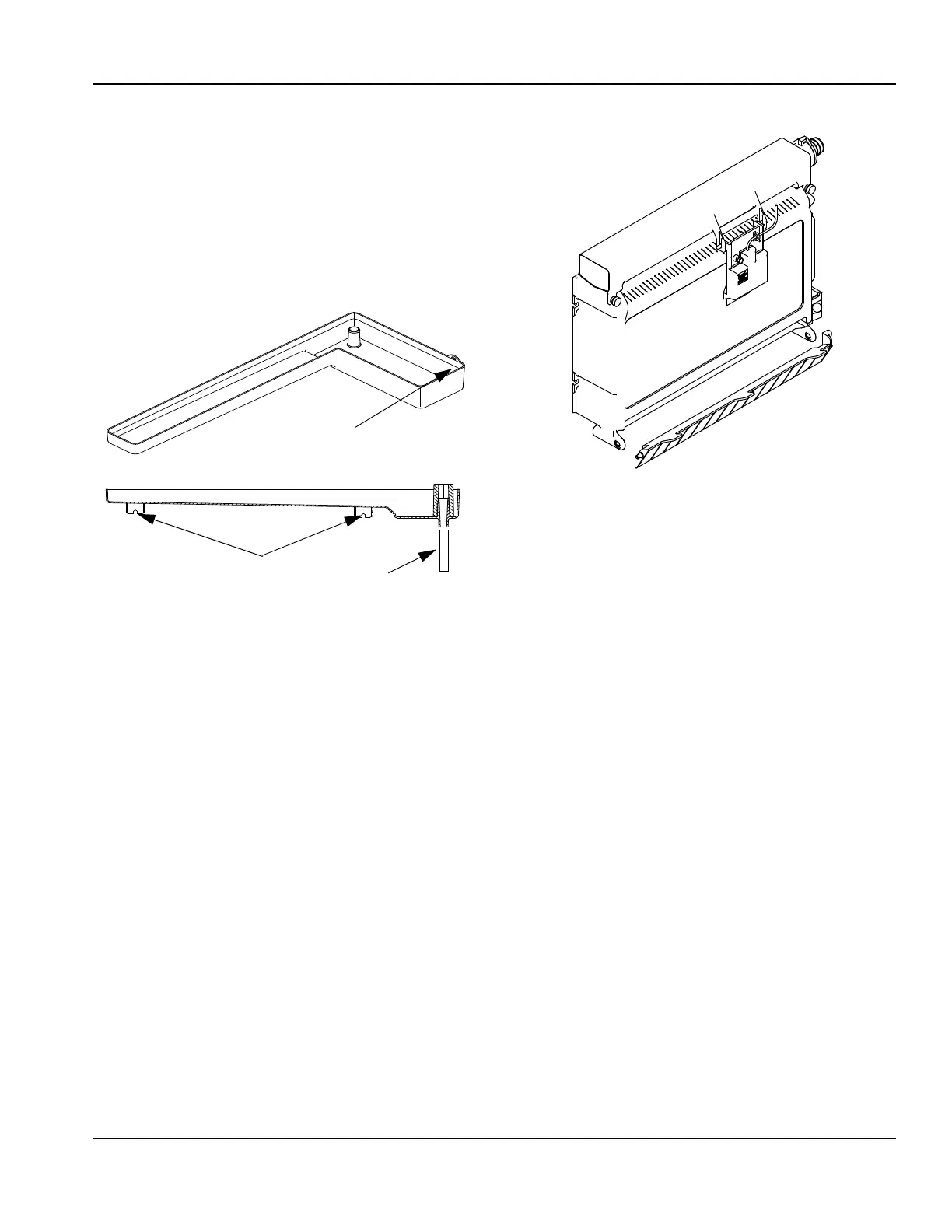

G. Remove the Water Trough
• Apply downward pressure on the siphon tube and
remove from the bottom of the water trough.
• Remove the upper thumbscrew.
• While supporting the water trough remove the two
thumbscrews from beneath the water trough.
• Remove the water trough from the bin area.
H. Remove the ice damper.
• Grasp ice damper and apply pressure toward the left
hand mounting bracket.
• Apply pressure to the right hand mounting bracket
with thumb.
• Pull ice damper forward when the right hand ice
damper pin disengages.
Installation
• Place ice damper pin in left hand mounting bracket
and apply pressure toward the left hand mounting
bracket.
• Apply pressure to the right hand mounting bracket
with thumb.
• Push ice damper toward evaporator until right hand
damper pin engages.
REMOVE
SIPHON TUBE
UPPER
THUMBSCREW
LOWER
THUMBSCREWS
