124 Part Number 000015433_03 5/20

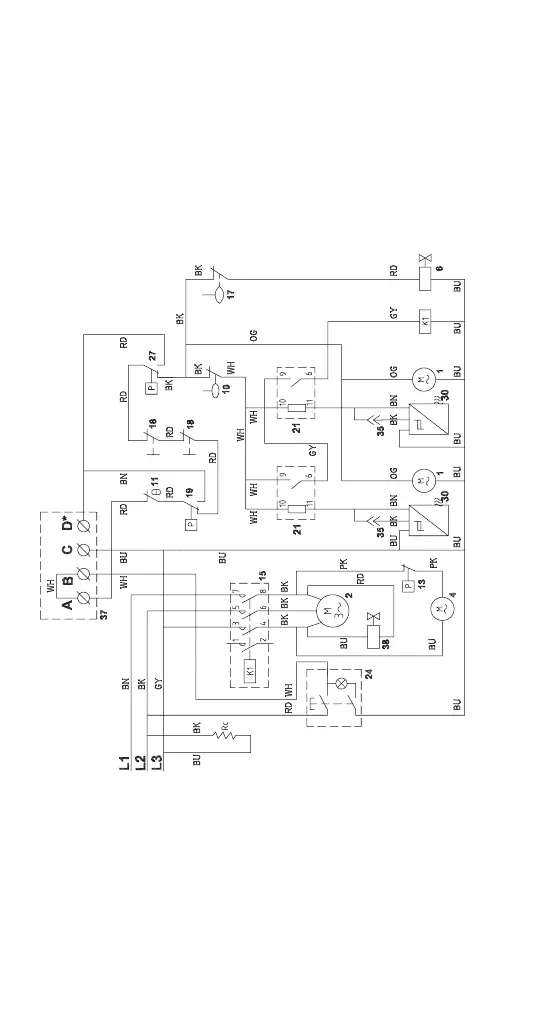

RFF2500A AIR-COOLED
Refer to Nameplate for Voltage Rating
Connections
• A & B connect to a remote panel when used - Jumper
must be removed when remote panel is used
• C & D energize a remote alarm indication when used
241142_02
See page 145 for compressor start component wiring.
