134 Part Number 000015433_03 5/20

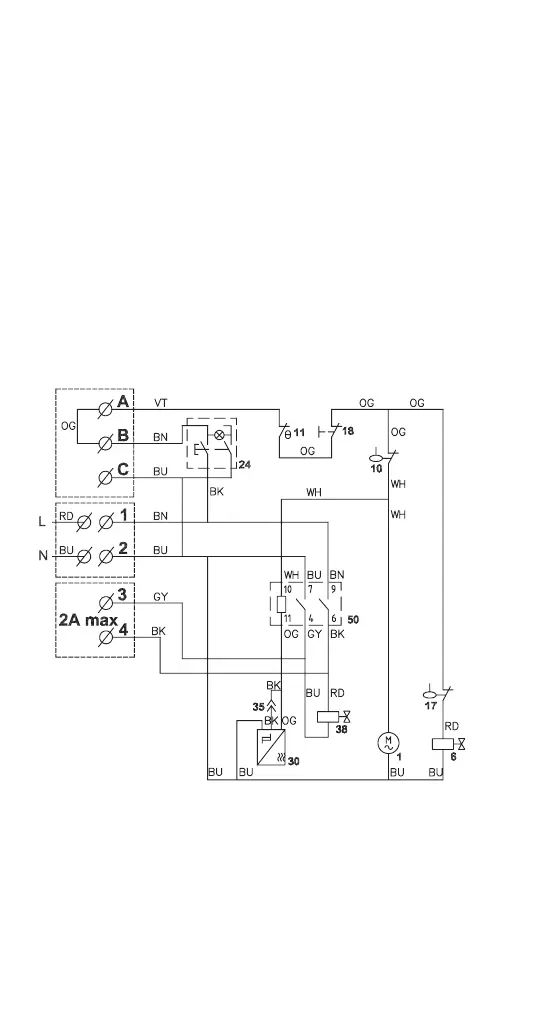

RNF1020C QUIETQUBE HEAD SECTION
Refer to Nameplate for Voltage Rating
Connections
• A, B, & C connect to a remote panel when used -
Jumper must be removed when remote panel is used
• 1 & 2 connect to line voltage
• 3 & 4 energizes remote condensing unit (RCU)
refrigeration - 2 Amp max
• 5 terminal or junction block located on top of the
junction box.
• 6 junction box at rear of ice machine
241151_03
See page 140 for condensing unit wiring diagram.
