Section 2 Installation Instructions
Part Number 000002477 3/08 2-5

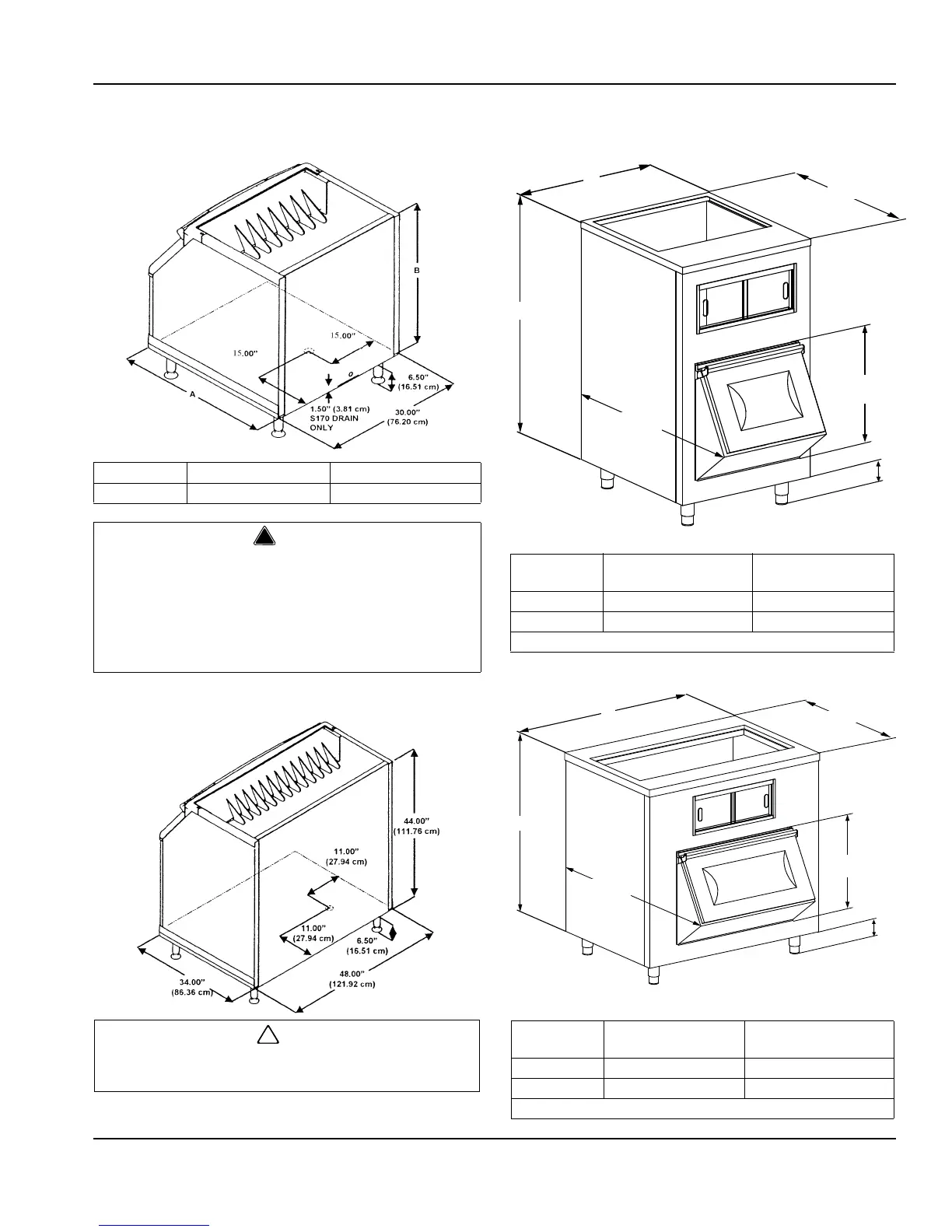

Ice Storage Bin Dimensions
30 INCH (76CM) ICE STORAGE BIN
S970 ICE STORAGE BIN
Large Capacity Ice Storage Bin Dimensions
30 INCH (76 CM)
48 INCH (122 CM) & 60 INCH (152 CM)
Bin Model Dimension A Dimension B
B570 34.0 in (86.3 cm) 44.0 in (111.7 cm)
!
Warning
Manitowoc QuietQube ice machines require the ice
storage bin to incorporate an ice deflector.
Prior to using a non-Manitowoc ice storage system
with other Manitowoc ice machines, contact the
manufacturer to assure their ice deflector is
compatible with Manitowoc ice machines.
!
Caution
30” large capacity bins must be attached to the wall
with the bracket provided with the bin.
Bin Model Dimension A (Width)
Dimension B
(Height)
B750 30 in. (76.2 cm.) 58 in. (147.3 cm.)
B1050 30 in. (76.2 cm.) 78 in. (198.1 cm.)
The bin drain is exactly in the center of the bin.
Bin Model
Dimension A
(Width)
Dimension B
(Height)
B1100 48 in. (121.9 cm.) 55.0 in. (139.7 cm.)
B1400 60 in. (152.4 cm.) 55.0 in. (139.7 cm.)
The bin drain is exactly in the center of the bin.
34” (86.4 cm)
25.25”
(64.1 cm)
6”
(15.2 cm)
A
B
43.6”
(110.81 cm)
A
34” (86.4 cm)
25.25”
(64.1 cm)
6”
(15.2 cm)
B
43.6”
(110.81 cm)
