Manitowoc S model User Manual

Section 2 Installation Instructions
Part Number 000002477 3/08 2-25
Step 6 Open The Valves Prior To Starting The Ice
Machine.
A. Slowly backseat (open-turn counterclockwise)
the suction line shut off valve.
B. Slowly backseat (open-turn counterclockwise)
the liquid line shut off valve.
C. Slowly backseat (open-turn counterclockwise)
the receiver service valve.
NOTE: You will not hear refrigerant flow when the valves
are opened. Refrigerant will not flow until the toggle
switch is placed in the ice position and the solenoid
valve opens.

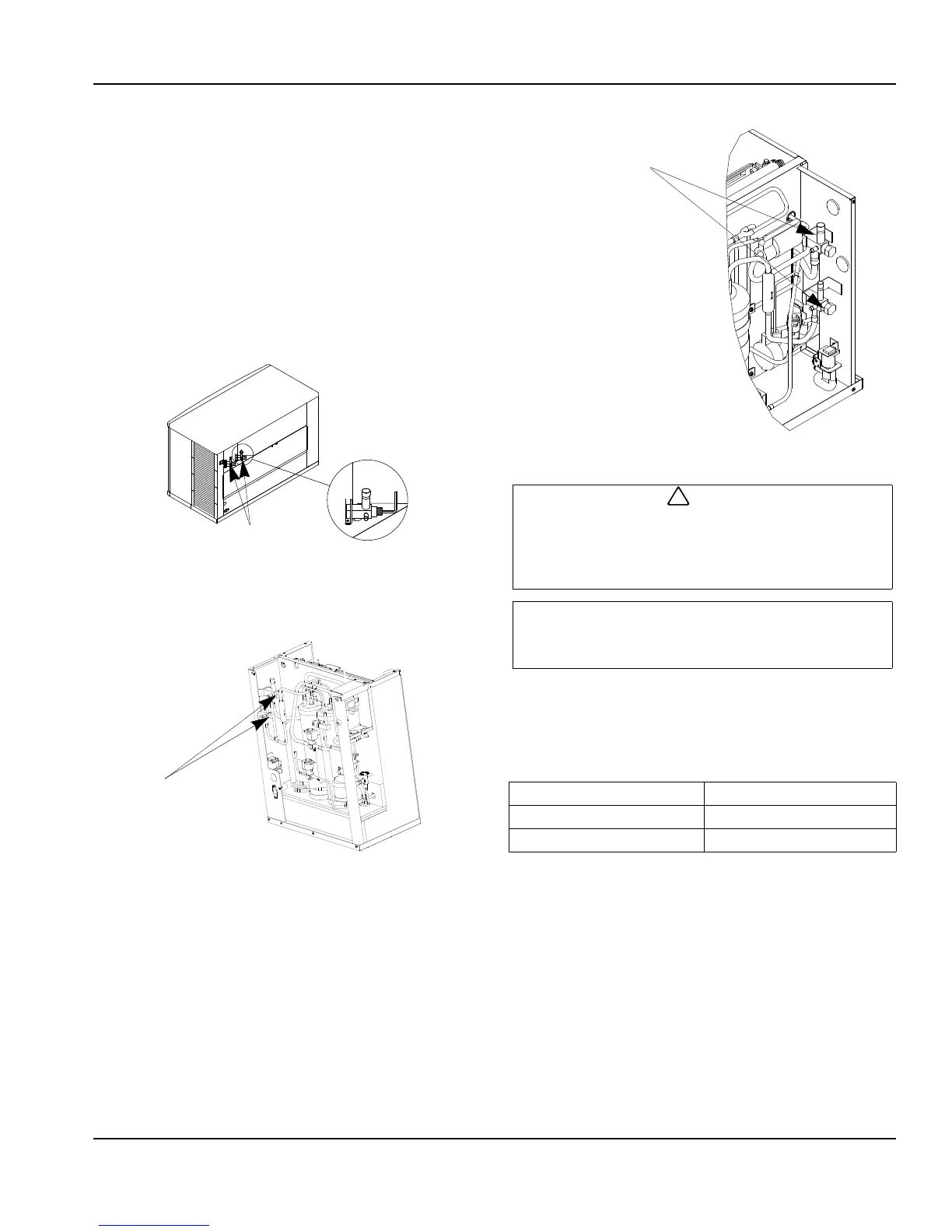

OPEN SUCTION AND LIQUID LINE SHUT OFF VALVES
S0600C/S0850C/S1000C/S1200C
.
OPEN SUCTION AND LIQUID LINE SHUT OFF VALVES
IB0600C/IB0800C/IB1000C
OPEN SUCTION AND LIQUID LINE SHUT OFF VALVES
S1470C/S1870C/S2170C
Verify O-ring in schrader valve caps are intact and
reinstall on shut off valves to prevent refrigerant leakage.
Replace shut off valve access caps and torque to the
following specifications.
Torque Value’s
USE ALLEN WRENCH TO OPEN
(TURN COUNTERCLOCKWISE)
LIQUID AND SUCTION LINE
SHUT OFF VALVES
SV1762
SV3051
USE ALLEN WRENCH
TO OPEN (TURN
COUNTERCLOCKWISE)
LIQUID AND SUCTION
LINE SHUT OFF
VALVES
!
Caution
After opening suction, discharge and receiver service
valves, refrigerant pressure will not be detected until
the toggle switch is placed in the ice position and the
harvest solenoid valve energizes.
Important
All refrigeration valve caps must be reinstalled to
prevent future refrigeration leaks.
Stem 18-20 ft. lbs.
Caps 12-15 ft. lbs.
Schrader Core 1.5-3 in. lbs.
USE ALLEN WRENCH
TO OPEN (TURN
COUNTERCLOCKWISE)
LIQUID AND SUCTION
LINE SHUT OFF
VALVES
