Section 2 Installation Instructions
Part Number 000002477 3/08 2-27
Suction Shut Off Valve Insulation
The pre-formed suction shut-off valve insulation is
located in the plastic bag taped to the water curtain.
A. Verify valve and schrader caps are tightened to
specifications (see Step 6).
B. Place insulation over schrader valve cap and left
side of valve. Position the tab between the
mounting bracket and rear panel.
C. Fold insulation and hold against right hand side
of valve while securing with electrical tape. Seal
the line set insulation to the shut off valve
insulation with electrical tape.

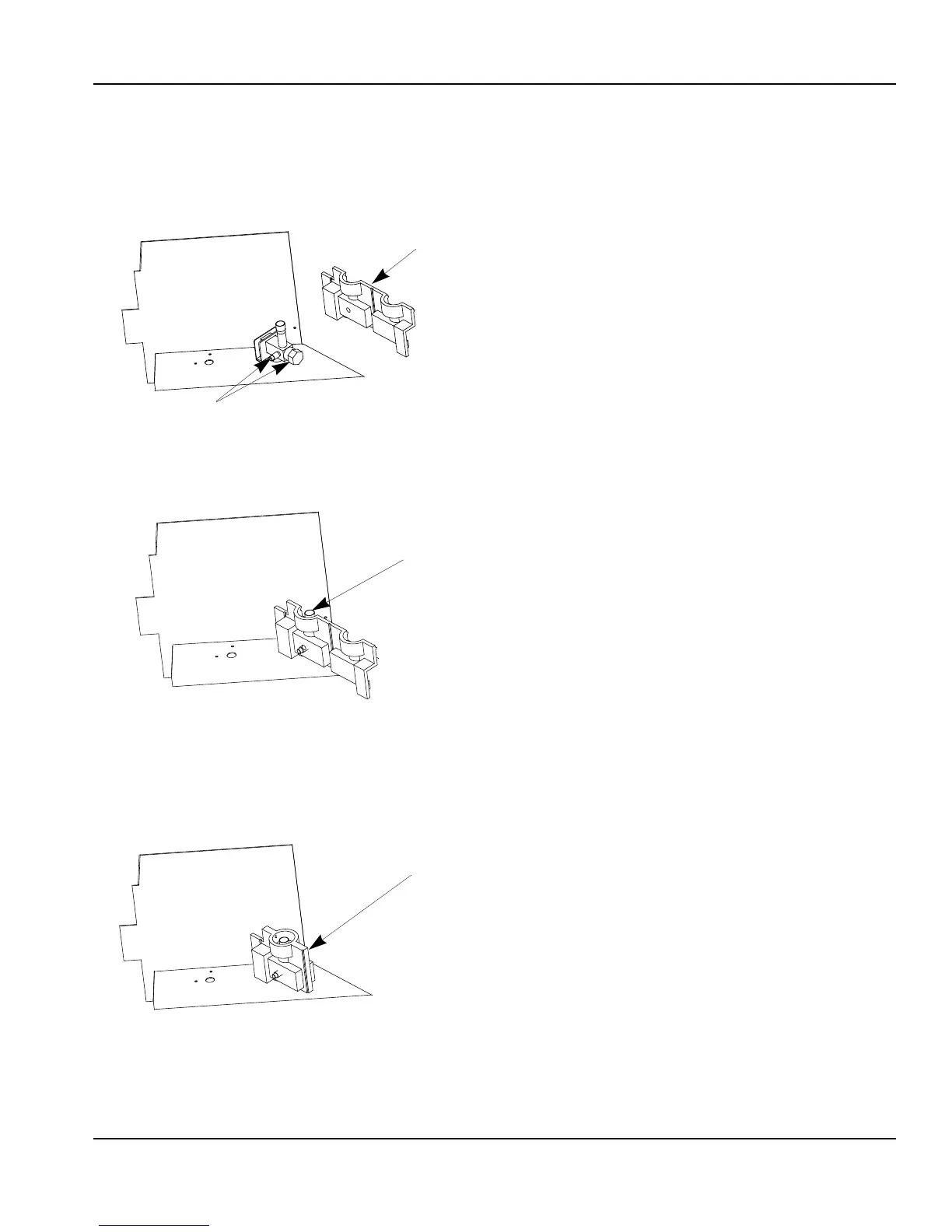

PRE-FORMED
INSULATION
SV3084
TIGHTEN VALVE CAPS
TO SPECIFICATIONS
SV3085
PLACE TAB BETWEEN
VALVE BODY AND PANEL
SV3086
FOLD INSULATION OVER
RIGHT SIDE OF VALVE AND
SECURE WITH
ELECTRICAL TAPE
