Maintenance Section 4
18
Part Number 040001361 05/10
Top Cover
1. Remove two back screws.
2. Slide back and lift cover off.

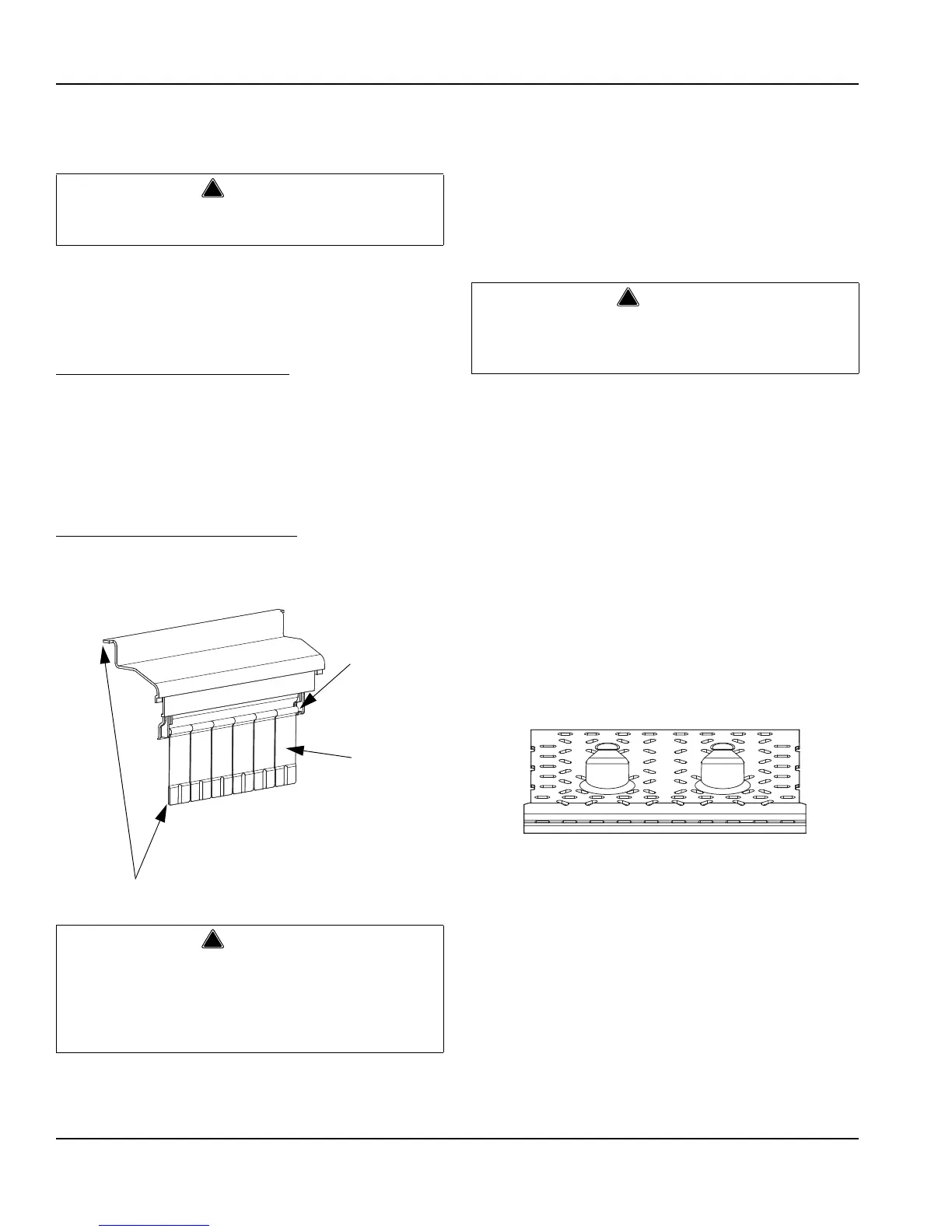

Water Shutters
The water shutter is designed to keep the spraying water
from escaping the evaporator compartment.
To remove just the water shutters:
1. Grasp one end of the water shutter and lift up.
2. Pivot water shutter and disengage remaining end.
3. To re-install into ice machine, grasp one end of the
water shutters, install one end, pivot the opposite
end and pull down into position. Make sure tabs are
secure in grooves.
To remove water shutter assembly:
1. Slide evaporator bucket forward 1/2” (13 mm).
2. Lift shutter assembly straight up.
Bin Light
If the ice machine is shut down for a long period of time
the bin light cover must be cleaned and sanitized. The
light is provided for your convenience. If you experience
operational problems with the light a replacement
appliance bulb can be obtained from your local hardware
store.
Front Grill
1. Remove two screws.
2. Tilt top forward and lift.
Ice Chute
The ice chute is positioned over the spray nozzles and
allows the ice to easily fall into the bin. It must be firmly
positioned over the spray bar, with the front edge inside
the water trough. Spray nozzles must be align with the
spray holes or spray water will fall into the bin.
1. Grab protruding spray hole on one end and lift up
and remove.
2. To re-install ice chute, grasp protruding spray hole
and position over Water Distribution Assembly.
Make sure rear supports are over spray bar, and
front edge is inside of water trough.
Disconnect the electrical power to the ice machine
at the electrical disconnect before proceeding.
Removing the water shutters while the water pump
is running will allow water to spray from ice
machine. Disconnect the electrical power to the ice
machine at the electric service switch box and turn
off the water supply.
Shutter
Assembly
Water
Shutters
Grasp
Water
Shutters
Here
Disconnect the electric power to the ice machine at
the electric service switch box and turn off the water
supply before proceeding.
