Section 4 Maintenance
Part Number 040001361 05/10 19

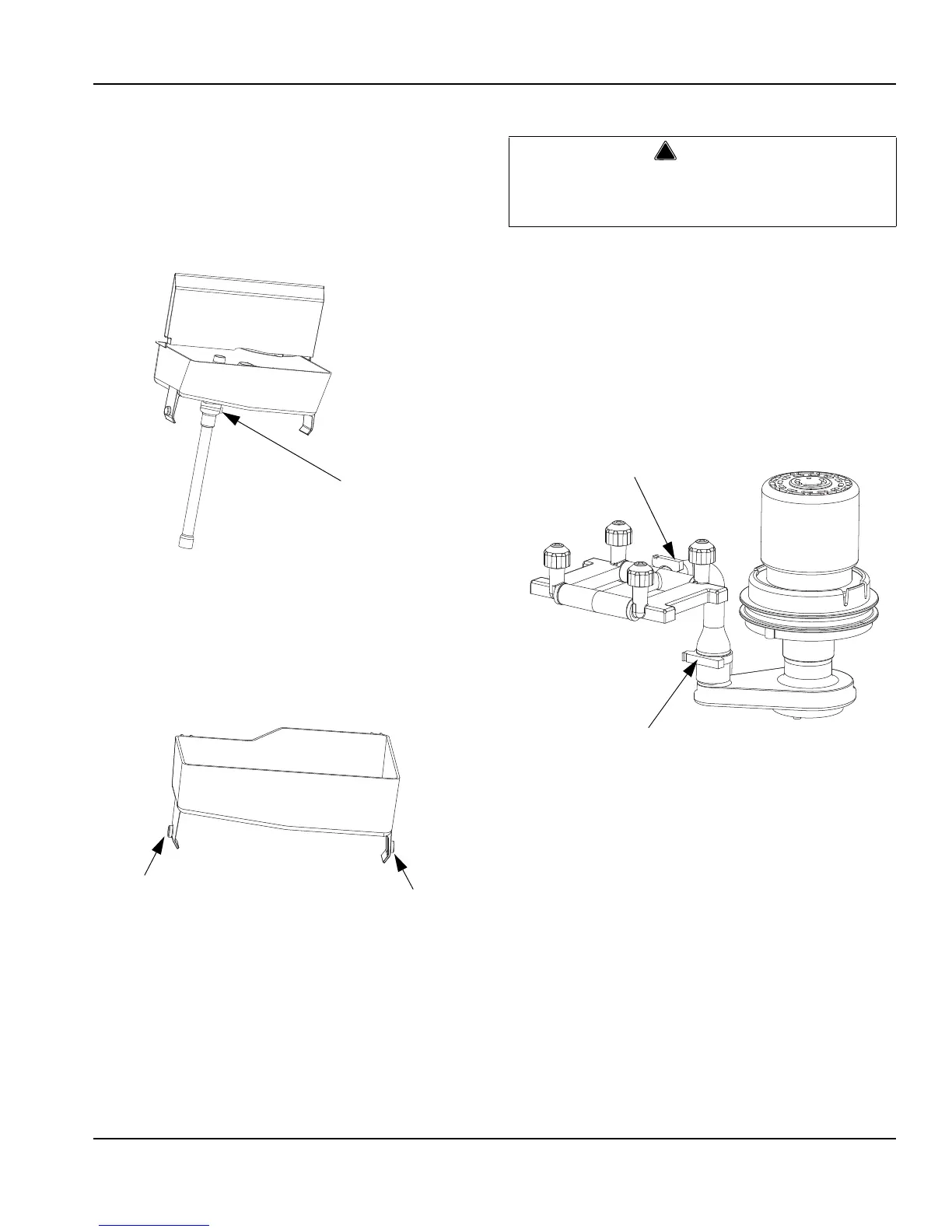

Sump Drain Overflow Tube
1. Remove clamp.
2. Pull down to remove overflow tube and tubing as an
assembly. The sump trough water will drain into the
bin.
3. Remove overflow tube from vinyl tubing by pulling.
Water Trough
1. Depress tabs on right and left side of the water
trough.
2. Allow front of water trough to drop as you pull
forward to disengage the rear pins.
Spray Bar, Water Pump and Hose
1. Remove spray bar clamp and spray bar.
2. Grasp pump and pull straight down until water pump
disengages and electrical connector is visible.
3. Disconnect the electrical connector.
4. Remove the water pump from ice machine.
5. Remove clamp from hose to remove from pump.
6. Do not soak the water pump in cleaner or sanitizer.
Wipe the pump and ice machine base clean.
Disconnect the electric power to the ice machine at
the electric service switch box and turn off the water
supply before proceeding.
