Manitowoc UDE080A

To Next Page

To Previous Page

36 Part Number 000014797 Rev02 05/18

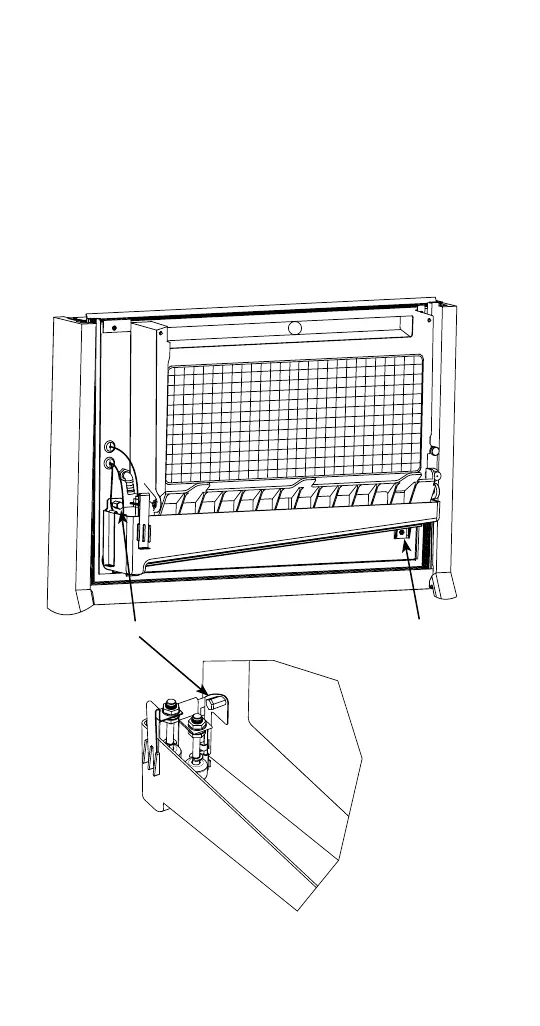

2. Remove the Water Trough Thermistor and Water

Trough

• Remove the upper thumbscrew.

• While supporting the water trough remove the

thumbscrew and thermistor.

• While supporting the water trough remove the

lower thumbscrew from beneath the water

trough.

• Remove the water trough from the bin area.

UPPER THUMBSCREW LOWER THUMBSCREW
