Manitowoc UYF0310W - Tubing Schematic - UDE080;U0140;UF0140; Tubing Schematic - U0190;UF0190;U0240

260 pages

To Next Page

To Previous Page

Part Number 000014797 Rev02 05/18 257



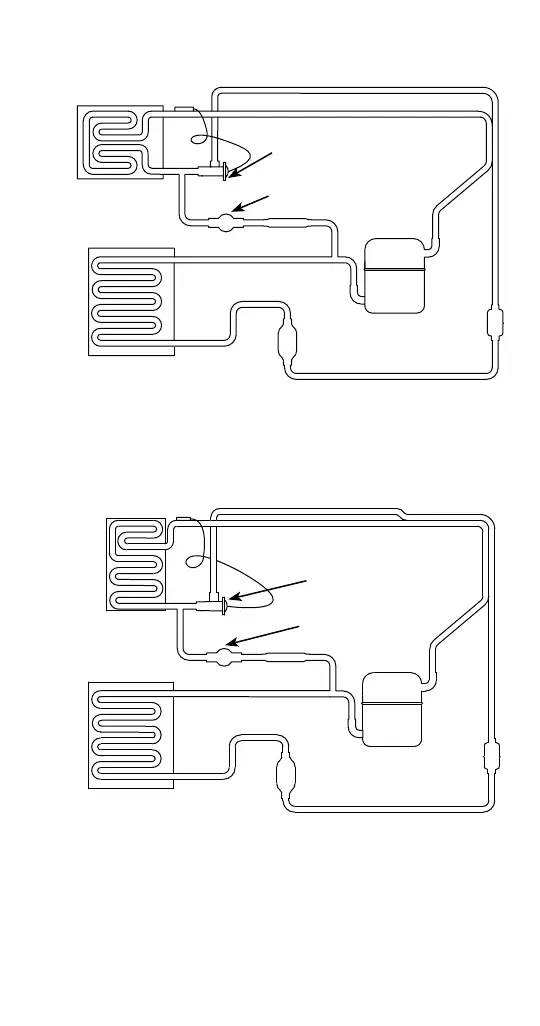

HEAT

EXCHANGER

AIR OR WATER

CONDENSER

DRIER





EXPANSION

VALVE

HARVEST

SOLENOID

EVAPORATOR

COMPRESSOR

STRAINER





HEAT EXCHANGER

AIR OR WATER

CONDENSER

DRIER

RECEIVER



EXPANSION

VALVE

HARVEST

SOLENOID VALVE

EVAPORATOR

COMPRESSOR

STRAINER
