Manitowoc UYF0310W User Manual

Part Number 000014797 Rev02 05/18 59

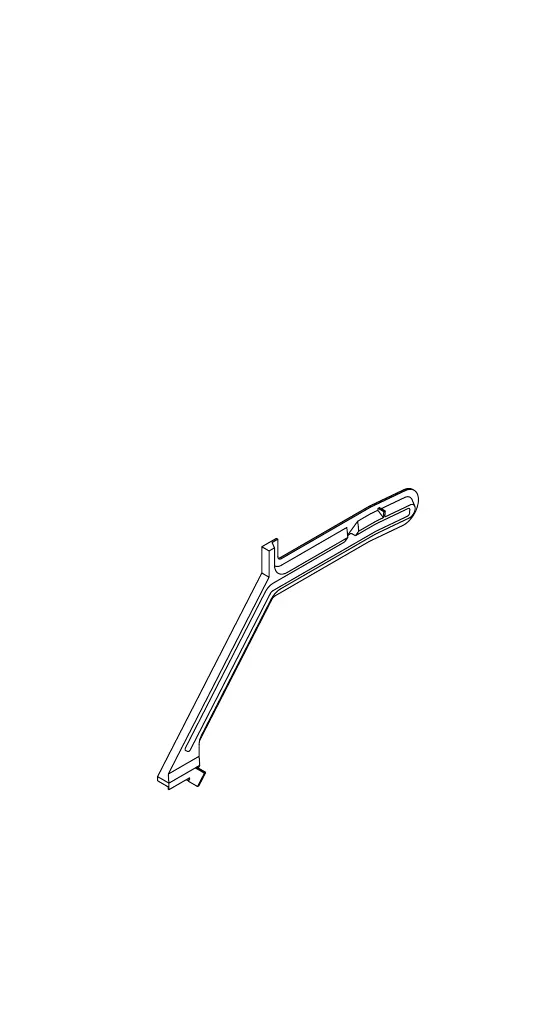

I. Remove the Bin Door
• Grasp the rear of the bin door and pull bin door
forward approximately 5”.
• Slide bin door to the rear while applying upward
pressure (The rear door pins will ride up into the track
slot and slide backward to the stop tab).
• While applying pressure against the bin door pull
down on the rear of each bin door track until the door
pins clear the stop tabs.
• Slide the rear door pins off the end and then below the
door track. Slide bin door forward allowing the back
of the door to lower into the bin. Continue forward
with the bin door until the front pins bottom out in the
track.
• Lift right side of door until the front pins clear the
track, then remove door from bin.
• Remove rollers (4) from all door pins.

Manitowoc UYF0310W Specifications

General

Brand	Manitowoc
Model	UYF0310W
Category	Ice Maker
Language	English
