Mantis 7940 Quick Assembly Sheet

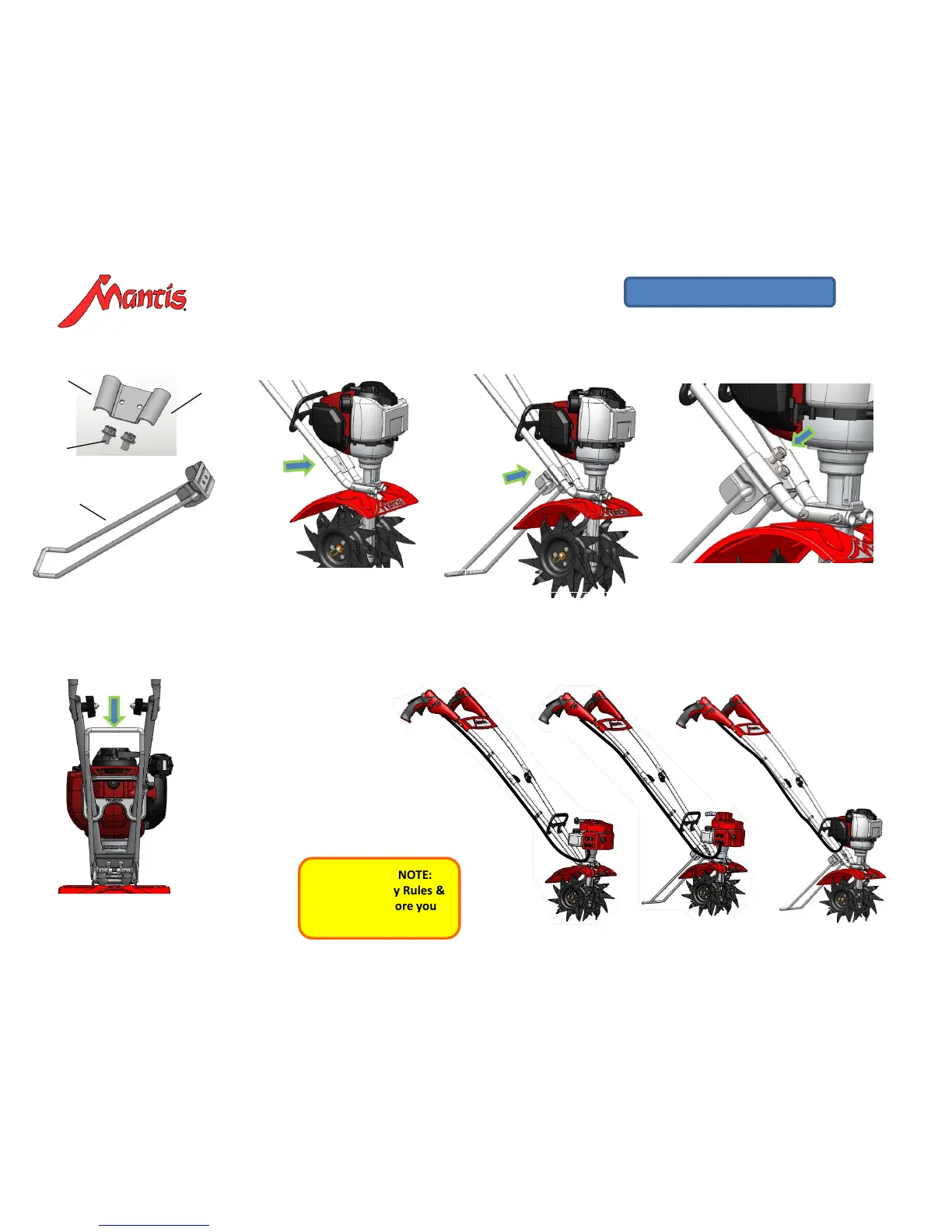

QUICK ASSEMBLY SHEET
Kickstand Assembly for Models 7924, 7925, 7940
Tools Needed: 3/8” wrench.
P/N 430094 , Rev A
IMPORTANT NOTE:
Read the Safety Rules &
Warnings before you
use your Mantis tiller
Place the Bottom Bracket of
the Kickstand Stand
Assembly T49 under the
Lower Handles and line up
the holes in both brackets.
Step 9
Insert two screws through the
holes in the Top Bracket and into
the threaded inserts of the Lower
Bracket. Tighten with the 3/8”
wrench.
Step 10
©2014 Schiller Grounds Care, Inc.
Lean the Tiller Handles against a sturdy
surface, so the tiller is supported in the
upright position. Place the Top Bracket
over the Lower Handles and below the
Carry Handle.
Step 8
Top Bracket
Tighten Hardware
Bottom Bracket
Place the Kickstand in the
folded position. The
Kickstand should be centered
between the Lower Handles.
If not, loosen the screws
slightly, adjust as necessary
and retighten the screws.
Step 11
Kickstand Position
Hardware
T50- Kickstand bracket
and hardware bag
T49- Kickstand
Stand Assembly
T49
T50
Top
Bracket
¼-20 x 0.5”
Flange
Screw
Models
7920,7921
Models
7924,7925
Model
7940
