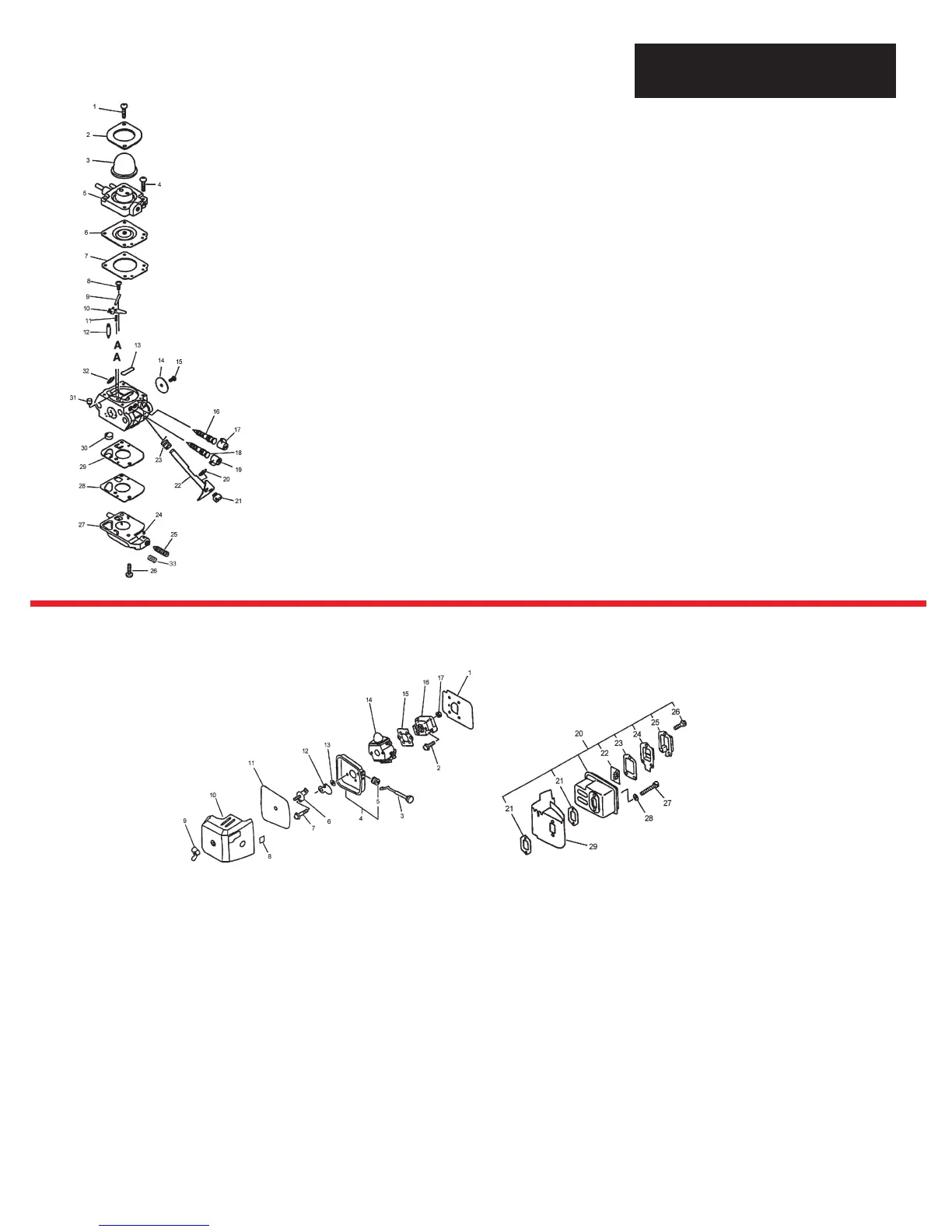

SV-4B1E Engine Parts
Carburetor
Air Cleaner & Muffler
28
KEY PART QTY DESCRIPTION
NO. NO.
12520013122 1 Carburetor Asy
Includes the following:
1 12534405360 2 Screw
2 12536308560 1 Ring
3 12538108660 1 Pump, Purge
4 12531005360 2 Screw
5 12538305360 1 Base, Purge
6A B1Diaphragm, Metering
7A B1Gasket, Metering
8 12533942030 1 Screw
9A 1Pen, Metering Arm
10 A 1 Lever, Metering
11 A 1 Spring, Metering Lever
12 A 1 Valve, Inlet Needle
13 A 1 Plug, Welch
14 12531649030 1 Valve, Throttle
15 12531413930 1 Screw
16 12531813120 1 Needle, Low Speed
17 12532909860 1 Cap, Limiter L.L.
18 12532013310 1 Needle, High Speed
19 12532939030 1 Cap, Limiter H.S.
20 12532713930 1 Clip
KEY PART QTY DESCRIPTION
NO. NO.
21 12537242030 1 Swivel
22 12531713310 1 Shaft, Throttle
23 12531342030 1 Spring, Throttle Return
24 12537813930 1 Piece, Friction
25 12533306960 1 Screw, Idle Adjust
26 12533306960 2 Screw
27 12532412820 1 Cover, Pump
28 A B 1 Gasket, Fuel Pump
29 A B 1 Diaphragm, Fuel Pump
30 A 1 Strainer
31 12537649030 1 Nozzle, Main Check Valve
32 12532715130 1 Clip
33 12533406560 1 Spring, Adjust Screw
A 12530012820 1 Rebuild Kit
B 12530320560 1 Gasket/Diaphragm Kit
KEY PART QTY DESCRIPTION
NO. NO.
1 13001042032 1 Gasket, Intake
2 90023805020 2 Screw 5 x 20
3 17851004560 1 Rod, Choke
4 13030104560 1 Case, Air Cleaner
5 17881005230 1 Grommet
6 13041005360 1 Bracket, Air Cleaner
7 90024205057 2 Screw 5 x 57
8 89012140630 1 Label, Choke
9 90052800005 1 Nut, Wing
10 13032611521 1 Cover, Air Cleaner
11 13031004560 1 Filter, Air
12 17851504560 1 Shutter, Choke
13 17851600830 1 Spacer
14 12520013122 1 Carburetor Assy
15 13001642031 1 Gasket, Intake
KEY PART QTY DESCRIPTION
NO. NO.
16 13001742031 1 Insulator
17 90050000005 2 Nut 5
20 14580011821 1 Muffler Asy
(Includes Items 21-26)
21 14551042031 2 Gasket, Muffler
(Included In Kit 88900045131)
22 14586240630 1 Screen, Muffler
23 14586642031 1 Gasket, Muffler Lid
(Included In Kit 88900045131)
24 14587642030 1 Lid, Muffler
25 14586306960 1 Fixture, Screen
26 90024204010 3 Screw 4 x 10
27 90010505050 2 Bolt 5 x 50
28 90060000005 2 Washer 5
29 14587105360 1 Cover, Muffler
NOTE: Please use the Part No.
when ordering any parts
