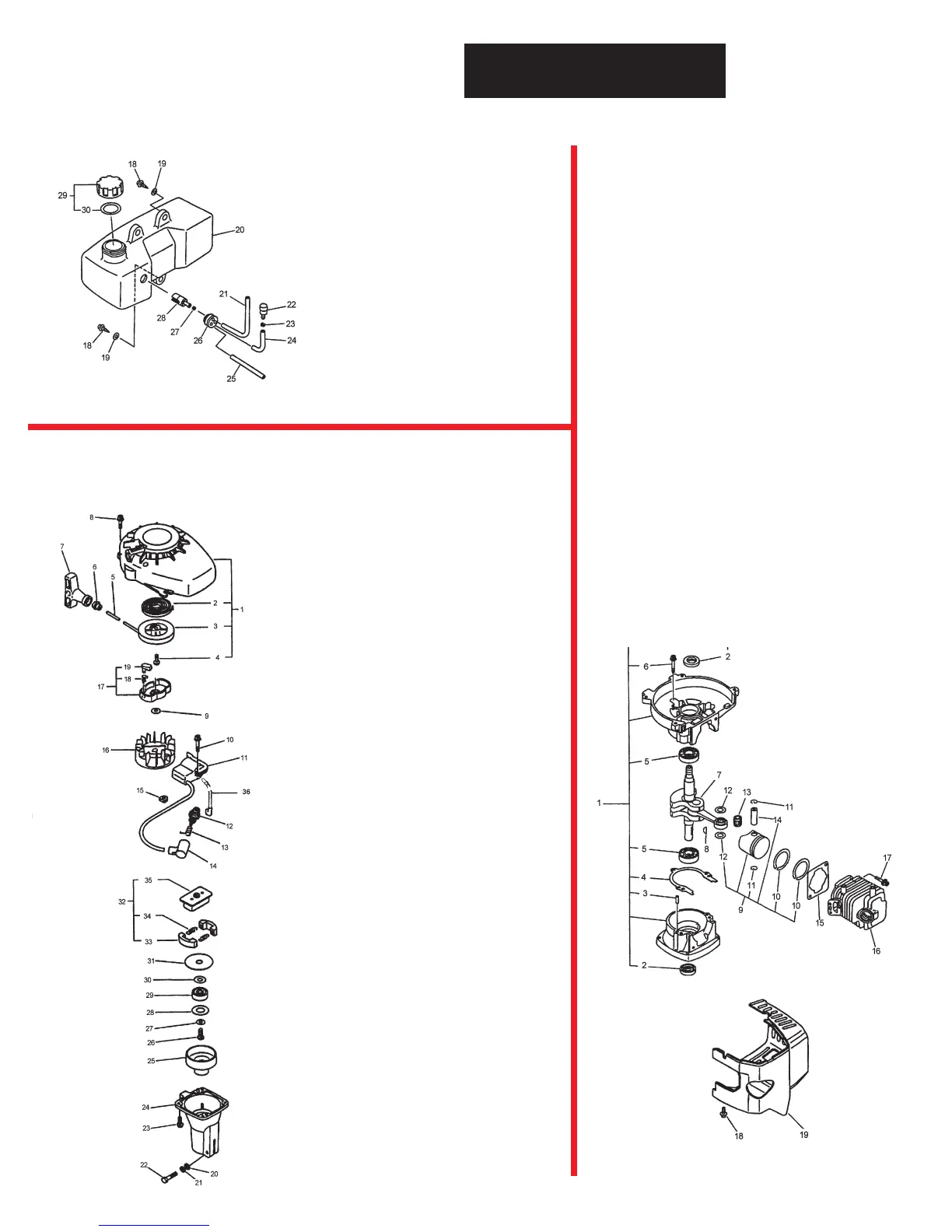

SV-4B1E Engine
Fuel Tank
Block
Starter, Pawl Catcher & Clutch
29
KEY PART QTY DESCRIPTION
NO. NO.
18 90027505015 3 Screws 5x15
19 90060300005 3 Washers
20 13100511820 1 Tank, Fuel
21 13201011520 1 Pipe 3x5x210
22 13130056430 1Valve, Check
23 13011100530 1 Clip, Pipe
24 13131244330 1 Pipe 3x 5x 70
25 13201049030 1 Pipe 3x6x50
26 13211546730 1 Grommet, Fuel
27 13201309820 1 Clip
28 13120507320 1 Strainer, Fuel
29 13100453530 1 Cap Asy, Fuel Tank
(Includes Item 30)
30 13101655830 1 Gasket, Fuel Cap
KEY PART QTY DESCRIPTION
NO. NO.
1 177200 12820 1 Starter Asy
2 17722042030 1 Spring, Rewind
3 17721544430 1 Drum, Starter
4 17723644330 1 Screw
51Rope Starter
(Use Bulk Rope
99944400040
3 x 890 (.12 x 33.5)
6 17722742030 1 Guide, Rope
7 17728811120 1 Grip, Starter
8 90023804016 4 Screw 4x16
9 90060500008 1 Washer, Spring 8
10 90016204022 2 Bolt 4 x 22
11 15660152130 1 Coil, Ignition
12 99944500071 1 Spark Plug BPM-7Y
13 15901103432 1 Coil, Spark Plug
14 15901201620 1 Cap, Spark Plug
15 15611004920 1 Bushing
16 15680105360 1 Flywheel
17 17720212220 1 Pawl Asy, Starter
(Includes Items 18 & 19)
18 17723442030 2 Spring, Pawl Return
19 17721844330 2 Pawl, Starter
20 90060000005 1 Washer 5
21 90060500005 1 Washer, Spring 5
22 90011505025 1 Bolt 5x25
23 90023804014 4 Screw 4x14
24 61022311520 1 Case Clutch
25 17501004633 1 Drum, Clutch
26 90023806012 1 Screw 6x12
27 17501411520 1 Washer, Clutch
28 17504404630 1 Washer, Clutch
29 90080836000 1 Bearing, Ball 6000
30 90060000010 1 Washer 10
31 17501904630 1 Plate, Clutch
32 17500007531 1 Clutch Asy
(Includes Items 33-35)
33 17500905131 2 Shoe, Clutch
34 17501805130 2 Spring, Clutch
35 17501605020 1 Hub, Clutch
36 16202152830 1 Lead, Ignition
KEY PART QTY DESCRIPTION
NO. NO.
1 10020411520 1Crankcase kit
(Includes Items 2-6)
2 10021242030 2 Seal, Oil
3 10021503930 2 Pin, Dowel
41Gasket, Crankcase
(Included in Kit 88900045131)
5 90081036201 2 Bearing, Ball 620
6 90016205028 3 Bolt 5x28
7 10010013120 1Crankshaft Asy
8 61032502730 1 Key, Woodruff
9 10000048732 1 Piston, Kit
(Includes Items 10-14)
10 10001105330 2 Ring, Piston
11 10001504630 2 Circlip, Piston Pin
12 10001411520 2 Spacer, Piston Pin
13 10001251230 1 Bearing, Needle
14 10001311520 1 Pin, Piston
15 10101044332 1 Gasket, Cylinder Base
(Included in Kit 889000045131)
16 10101106562 1 Cylinder
17 90016205022 2 Bolt 5x22
18 90023804018 2 Screw 4x18
19 10150612820 1Cover, Cylinder
NOTE: Please use the Part No.
when ordering any parts
