Mantis Edger User Manual

KEY # DESCRIPTION QTY PART #
1 Screw M5 x 36 mm 4 100500
2 Nut Nyloc 5mm 4 100501
Main Body 1
44 Handle Right 1 100225
45 Handle Left 1 100226
46 Handle Cross Brace 1 100227
48 Handle Clamp 1 100532
52 Bolt 1/4” x 5.5” 1 100533
53 Knob 1 100232
Mantis Edger Parts List
7
1
1
1
1
2
2
2
46
53
48
52
45
44

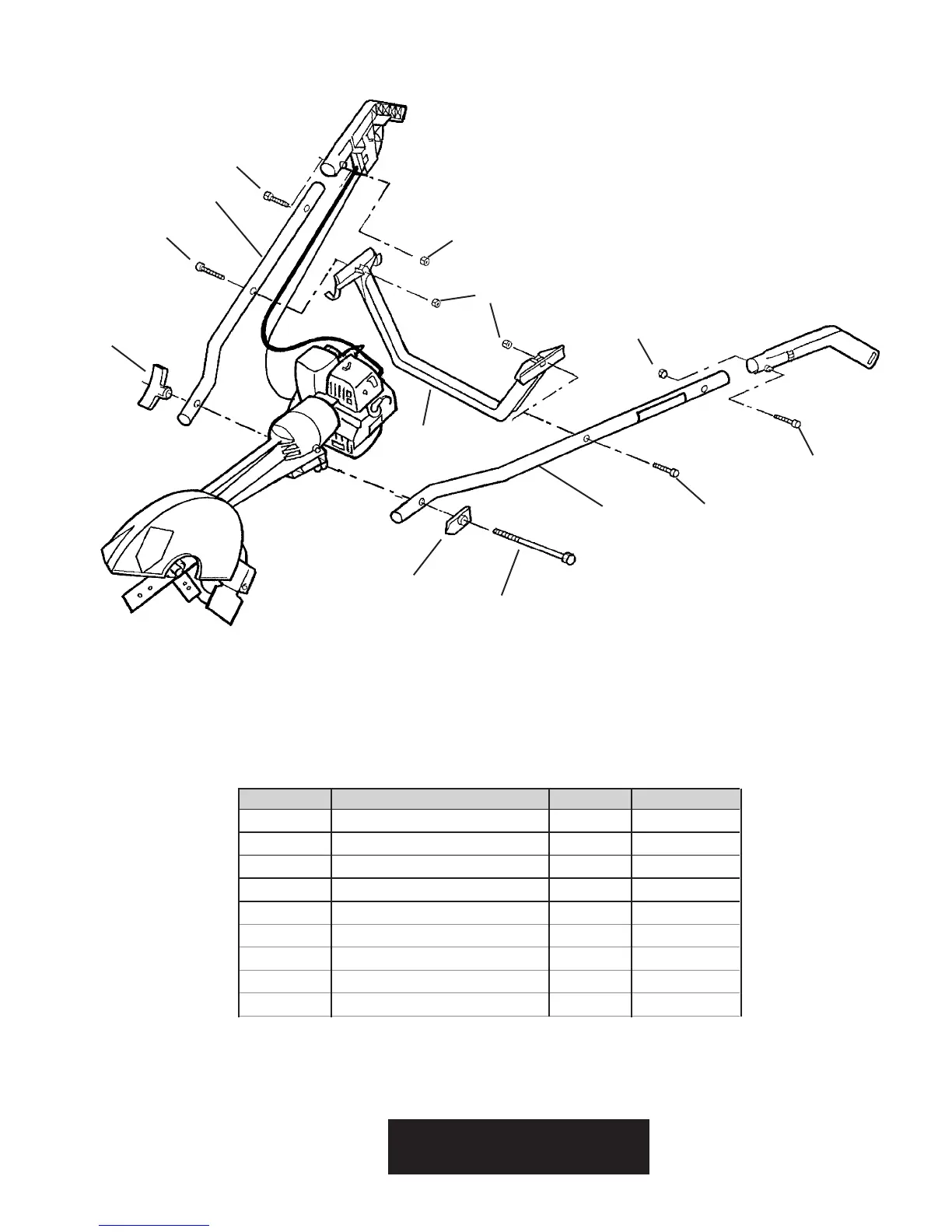

see pages 26 & 27 for parts explosion
NOTE: Please use the Part No.
when ordering any parts
