Step 1
Step 2
Step 3
Step 4

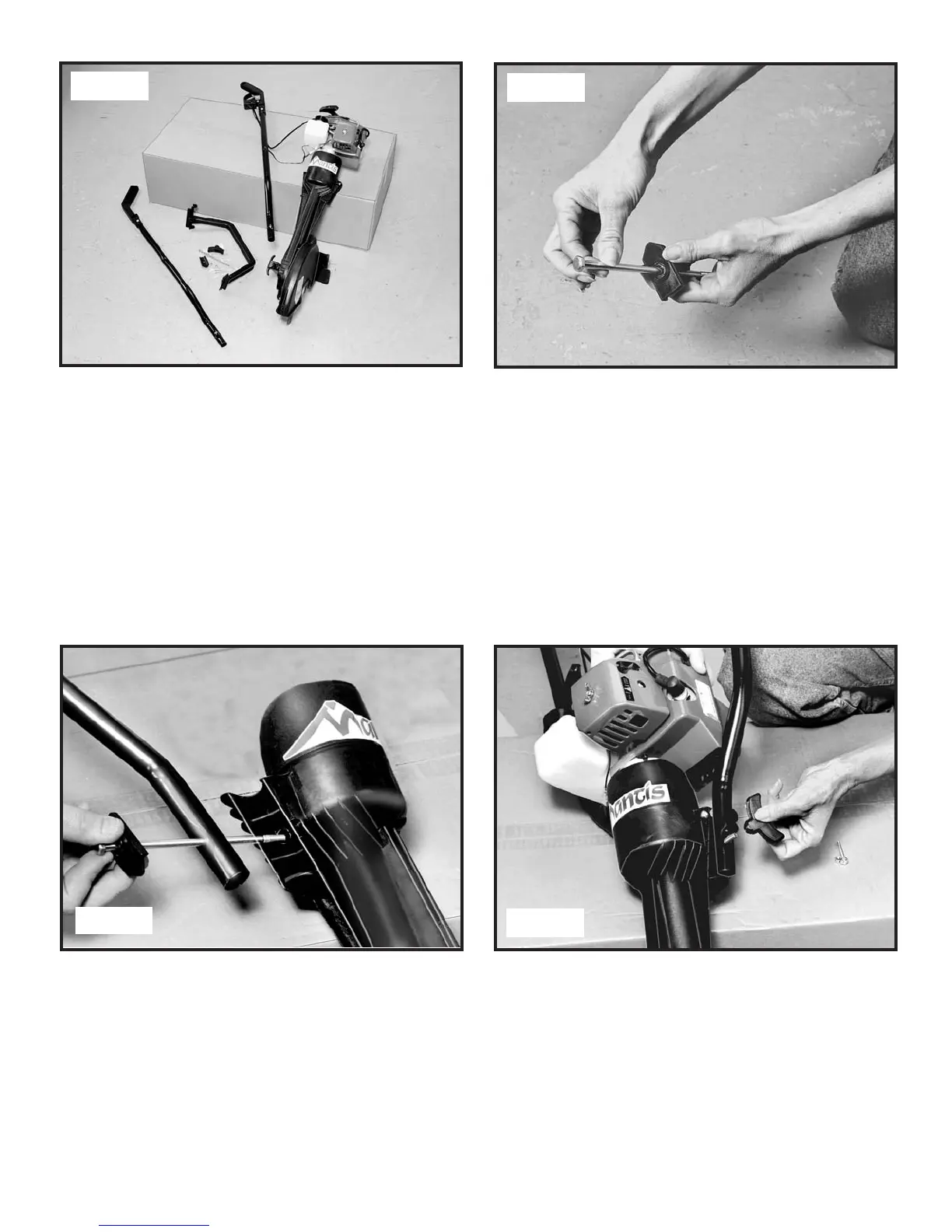

Insert the bolt through the right handle (with
the throttle trigger) and through the main
body of the Edger with the point of the plas-
tic washer facing down towards the blades.
After taking all parts out of the carton, turn
the cardboard box over and rest the engine
on top of it for ease of assembly.
Slip the flat handle clamp (key #48) onto the
long bolt (key #52) so that the hex head fits
into the recessed area.
Place the second handle over the bolt that
now protrudes from the other side and secure
it with the large plastic wing nut from the
hardware bag. Do not overtighten the wing
nut.
