O. Exploded View

61

26

21

97

37

110

109

107

108

105

22

111

102

100

99

38

98

41

10

9

11

12

13

24

37

34

31

17

23

18

33

16

25

30

20

32

5

19

15

36

3

27

8

2

35

38

9

6

9

14

11

1

28

4

29

7

113

104

38

36

35

114

37

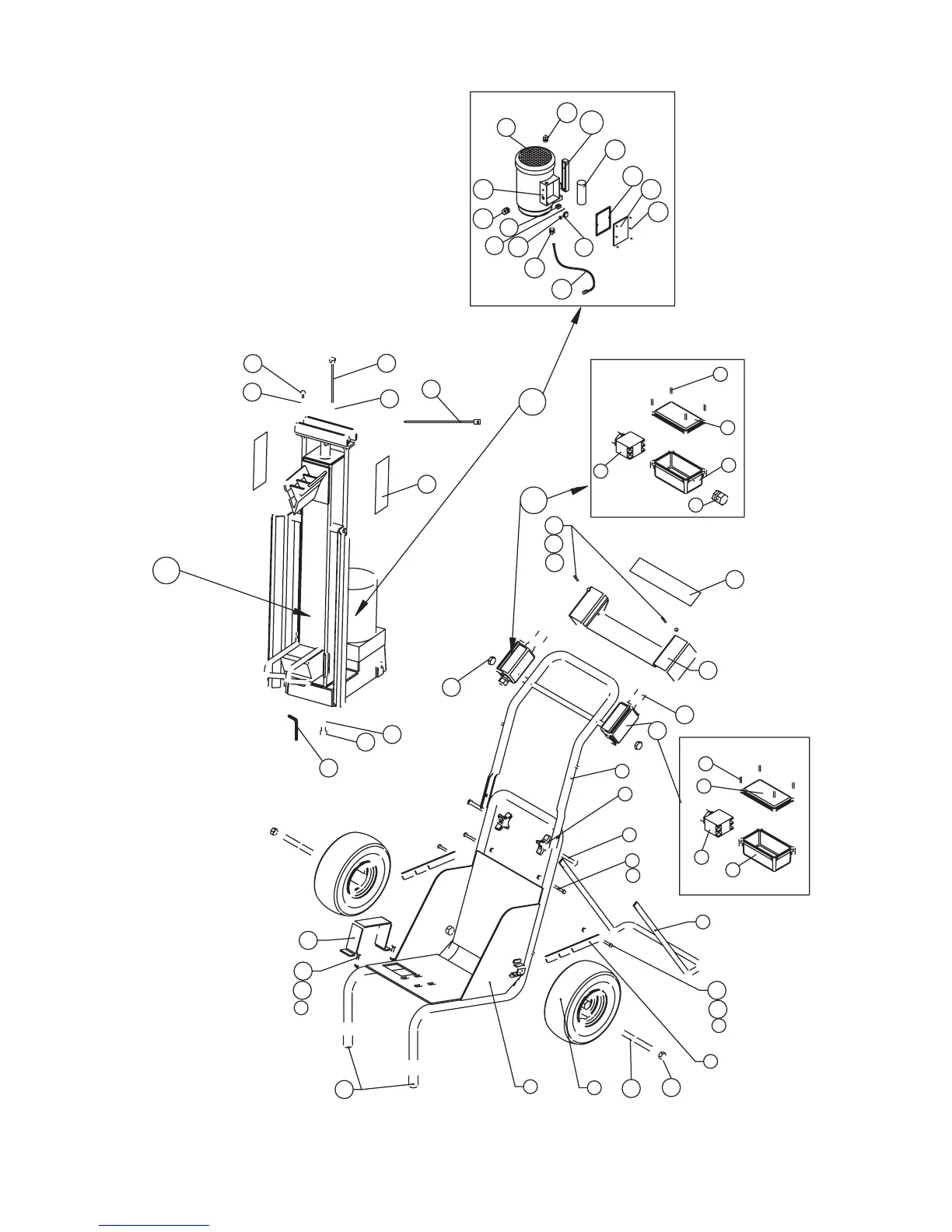

LOG SPLITTER EXPLODED VIEW

MODEL 5005

Questions and Answers:

C
Charles KingJul 31, 2025
What to do if Mantis Swift Split Log Splitter fails to split log?
- A
  Aaron WebbJul 31, 2025
  If the Mantis Log Splitter fails to split the log, first, try re-positioning the log. If that doesn't work, the log may exceed the permitted dimensions or be too hard for the machine's capacity; in this case, set it aside and try a different one. Also, check the oil level and adjust if needed. The splitting wedge may have burrs, nicks, or flat spots, requiring you to sharpen it as directed in section J. Finally, a leak of hydraulic oil may cause low hydraulic pressure, place cardboard under the log splitter to locate the leak, and worn components should be replaced.
A
Andrea FowlerAug 8, 2025
Why does Mantis Swift Split pressure plate advance with jerky motion?
- G
  garciatimothyAug 8, 2025
  If the pressure plate of your Mantis Log Splitter advances with a jerky motion or strong vibration, it could be due to air in the system. Open the bleed screw and cycle the pressure plate back and forth three to four times to help remove any air that may have mixed into the hydraulic fluid. Another possible cause is a low hydraulic fluid level; check and adjust the hydraulic oil level accordingly.
D
Diamond JosephAug 18, 2025
Why is Mantis Swift Split Log Splitter pressure plate response slow?
- K
  Keith ShermanAug 18, 2025
  If your Mantis Log Splitter has a slow pressure plate response, it might be due to a low hydraulic fluid level. Check the hydraulic oil level and adjust as necessary.
