Mantis Tiller User Manual

27
P/N 438LA
P/N 438RA
DIRECTION
Raised Hub
Teeth point in
a Clockwise
Direction
DIRECTION
Raised Hub
Teeth point in
a Counter
Clockwise
Direction
When you look at a Tine with the raised hub facing you
and the teeth are pointing in a CLOCKWISE rotation,
you have a LEFT HAND TINE.
When you look at Tine with the raised hub facing you
and the teeth are pointing in a COUNTER CLOCKWISE
rotation, you and a RIGHT HAND TINE.
ITEM NAME QTY MATERIAL
1 400254 1 Trigger Handle Assm. RH
2 400255 1 Handle Assm. LH
3 400224 2 Lower Handle - Fold Down
4 400620 1 Label
5 148 1 Handle Brace
6 478 2 Throttle Clip
7 465 1 Fender Guard
8 400908
1 Engine Assembly SV-5C/2
9 468 1 Drive Shaft
10 466 1 Worm Gear Housing
11 436 1 Gasket
12 437A 1 Housing Cover
13 651 4 Rd. Hd. Self Tapping Screw
14 423 1 Roller Bearing
15 425 2 Worm Bearing Race
I
TEM NAME QTY MATERIAL
16 424 1 Worm Thrust Bearing
17 422 1 Worm Shaft
18 426 1 Worm Disk
19 428 1 Retaining Ring
20 429 1 Worm Gear
21 431 1 Tine Shaft
22 430 2 Worm Gear Thrust Washer
23 432 2 Worm Gear Bearing
24 434 2 Bearing Seal
25 435 2 Bearing Seal Retainer
26 438RA 1 Tine Assembly (RT)
27 438LA 1 Tine Assembly (LT)
28 418-1 2 Tine Retaining Hair Pin
29 400218 1 Carrying Handle
I
TEM NAME QTY MATERIAL
30 487MA 1 Engine Label
31 4043 1 Tine Label
32 458 1 Roller Bearing
33 4058 1 Mantis Label
34 410 2 Cap Screw 1/4-20 x 1” LG.
35 972 4 Lock Nut 1/4 - 20
36 470 2 1/4 - 20 x 3” Bolt
37 140 2 Bolt 1/4-20 x 3/8” Lg.
38 377 2 Handle Clamp
39 400509 2 Bolt
40 400510 2 Knob
41 400230 2 Plug
42 400010 1 Transmission Assembly
*
* Also in Key #55
*

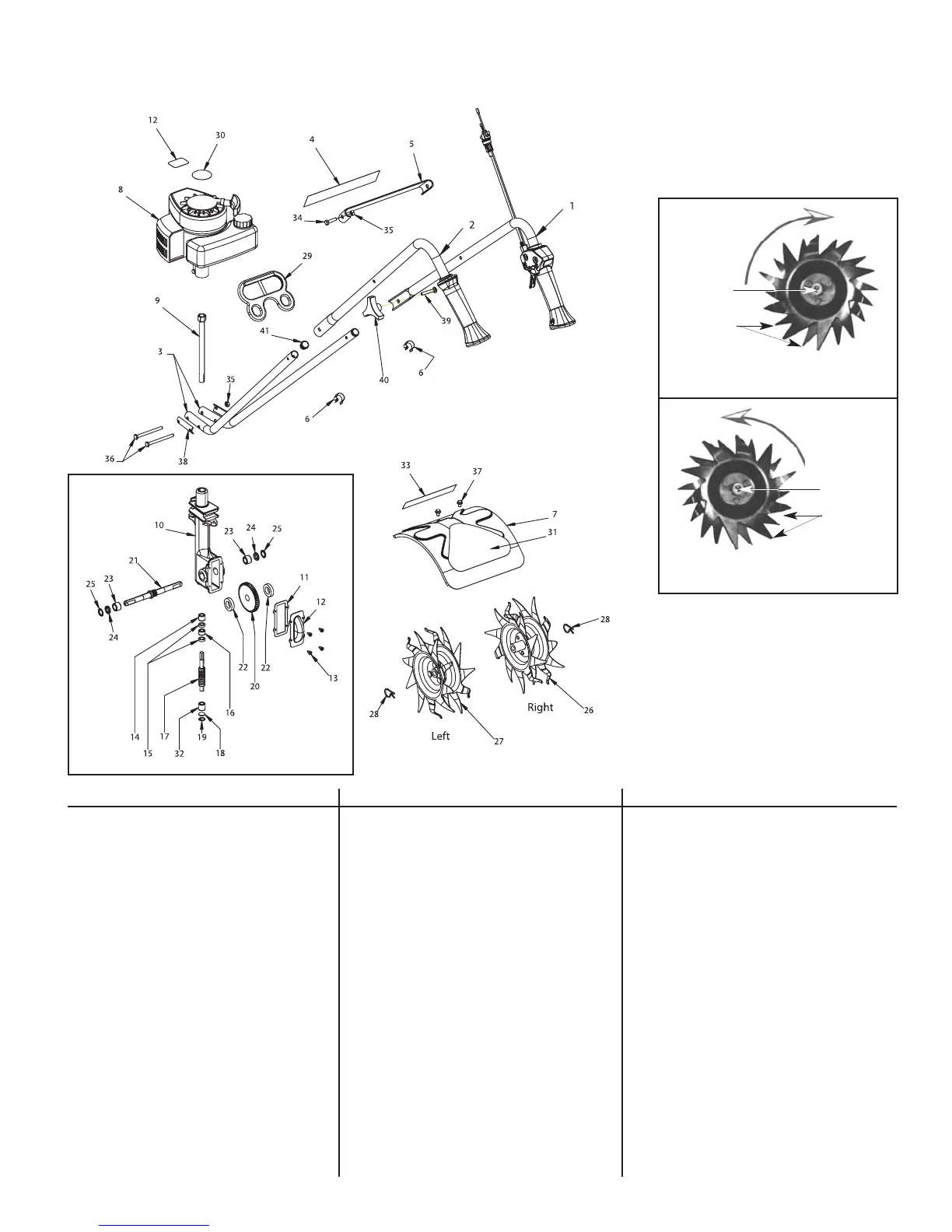

MANTIS TILLER ASSEMBLY
