28
A

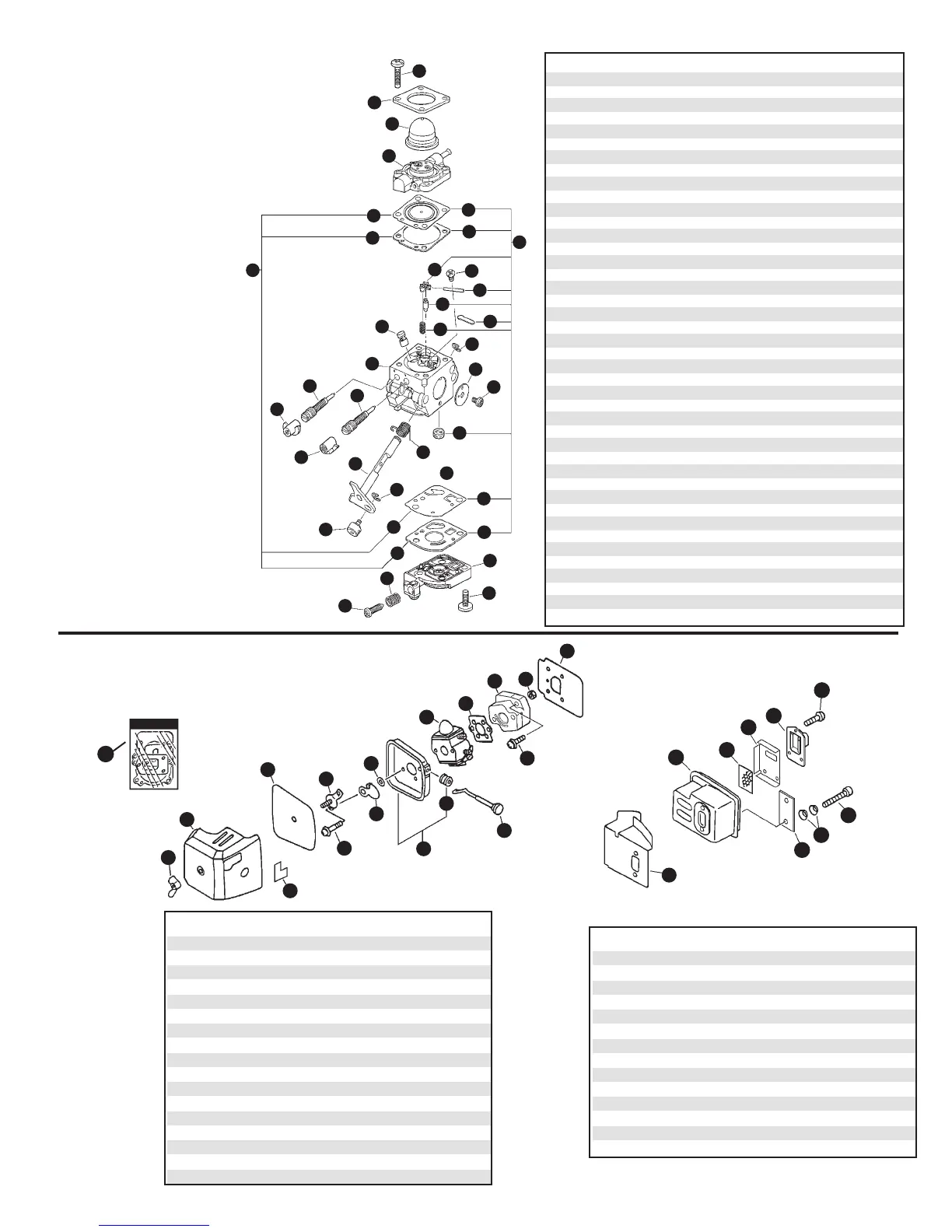

IR CLEANER, MUFFLER,& THROTTLE
SV-5C/2
ENGINE PARTS
ASSEMBLIES
CARBURETOR
BOLD Indicates New Part
ITEM PART # QTY. DESCRIPTION / REMARKS
1 90052800005 1 WING NUT
2 13032611522 1 COVER, AIR CLEANER
3 89012147530 1 LABEL, CHOKE
4 13031004560 1 FILTER, AIR
5 90024205057 2 SCREW 5X57
6 13041005360 1 BRACKET, AIR CLEANER
7 17851504560 1 SHUTTER, CHOKE
8 17851600830 1 SPACER
9 13030104560 1 CASE, AIR CLEANER / INCLUDES ITEM 10
10 17881005230 1 GROMMET
11 17851004560 1 ROD, CHOKE
12 A021001090 1 CARBURETOR -- C1U-K82
13 13001642031 1 GASKET, INTAKE
14 90023805020 2 SCREW 5X20
15 13001742031 1 INSULATOR
16 90050000005 2 NUT 5
17 13001042032 1 SHIELD, INTAKE
ITEM PART # QTY. DESCRIPTION / REMARKS
18 V104000590 1 SHIELD, EXHAUST
19 A300000521 1 MUFFLER
20 V150000371 1 EYE PLATE
21 V347000000 4 WASHER, CONICAL
22 90010505055 2 BOLT 5X55
23 14586240630 1 SCREEN, MUFFLER
24 V104000072 1 GASKET, EXHAUST
25 A313000700 1 GUIDE, EXHAUST
26 9136704012 3 SCREW 4X12
Also Included in GASKET KIT
27 P021009110 1 GASKET KIT
27
GASKET KIT
1
3
2
5
4
6
7
9
8
10
11
13
14
16
15
17
18
12
19
20
21
23
24
25
26
22
1
2
3
4
35
24
25
23
27
6
26
28
29
30
7
14
13
12
31
11
32
33
21
22
20
19
37
38
9
39
10
16
18
17
5
15
8
36
34
ITEM PART # QTY. DESCRIPTION / REMARKS
A021001090 1 CARBURETOR -- C1U-K82
1 P005000980 4 SCREW, PURGE BASE
2 P005000620 1 RETAINER, PURGE PUMP
3 12538108660 1 PUMP, PURGE
4 P005000970 1 BASE, PURGE
5 --------------- 1 BODY, CARBURETOR / NOT AVAILABLE SEPARATELY
6 12533942030 1 SCREW, METERING LEVER PIN
7 12537613120 1 NOZZLE, CHECK VALVE
8 12537242030 1 SWIVEL
9 12532713930 1 CLIP, THROTTLE SHAFT
10 P005001070 1 SHAFT, THROTTLE
11 12531342030 1 SPRING, THROTTLE RETURN
12 12531413930 1 SCREW, THROTTLE VALVE
13 12531649030 1 VALVE, THROTTLE
14 12532715130 1 CLIP, THROTTLE SHAFT
15 12531813120 1 NEEDLE - LOW SPEED
16 12532909860 1 CAP, MIXTURE LIMITER - LOW SPEED
17 12532013310 1 NEEDLE - HIGH SPEED
18 12532939030 1 CAP, MIXTURE LIMITER - HIGH SPEED
19 12533406960 1 SCREW, IDLE ADJUST
20 12533306960 1 SPRING, IDLE ADJUST
21 12532412820 1 COVER, FUEL PUMP
22 12531012820 2 SCREW, FUEL PUMP COVER
23 12530013120 1 REPAIR KIT / INCLUDES ITEMS 24-33
24 ------------------- 1 DIAPHRAGM, METERING
25 ------------------- 1 GASKET, METERING DIAPHRAGM
26 ------------------ 1 PIN, METERING LEVER
27 ------------------- 1 LEVER, METERING
28 ------------------- 1 VALVE, INLET NEEDLE
29 ------------------ 1 SPRING, METERING LEVER
30 ------------------- 1 WELCH PLUG
31 ------------------- 1 STRAINER
32 ------------------- 1 DIAPHRAGM, FUEL PUMP
33 ------------------- 1 GASKET, FUEL PUMP
34 12530313120 1 GASKET/DIAPHRAGM KIT / INCLUDES ITEMS 35-38
35 ------------------- 1 DIAPHRAGM, METERING
36 ------------------- 1 GASKET, METERING DIAPHRAGM
37 ------------------- 1 DIAPHRAGM, FUEL PUMP
38 ------------------- 1 GASKET, FUEL PUMP
To Next Page
