Connecting a pre-amplifier or power amplifier

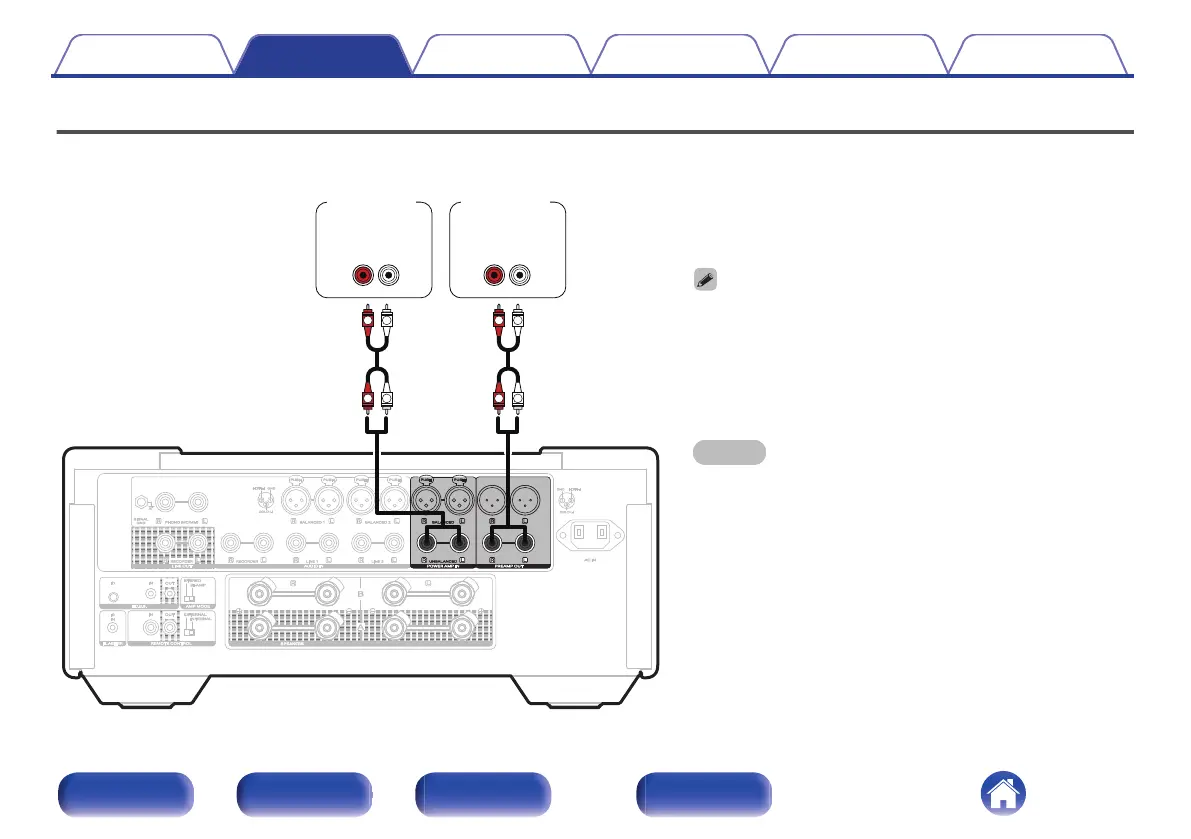

Connect a power amplifier to the unit to use it as a pre-amplifier, or connect a pre-amplifier to the unit to use it as a power amplifier.
0
When connecting a pre-amplifier and using this unit as a power
amplifier, switch the input source to “Power Amp Balanced” or
“Power Amp Unbalanced”. (v p. 45)
0
The POWER AMP IN (UNBALANCED) connectors are equipped with
a short-circuiting pin plug. Remove this plug to connect a pre-
amplifier. Store the removed short-circuiting pin plug in a safe place
so as not to lose it.
NOTE
0
Never insert the short-circuiting pin plug into the PREAMP OUT
connectors. Doing so could result in damage.
LR
L
L
R
R
L
L
R
R
LR
AUDIO
OUT
AUDIO
IN
Power
amplifier
Pre-
amplifier
