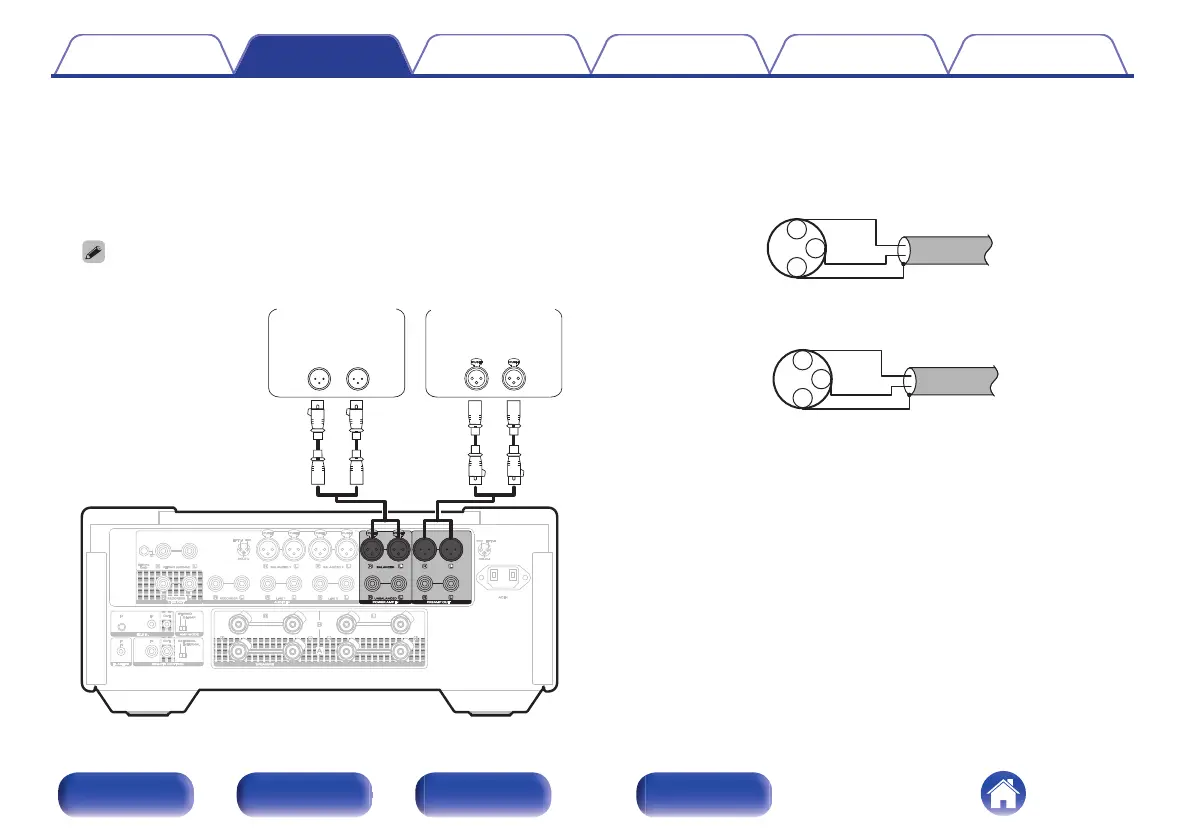

About balanced connectors
This unit has both unbalanced and balanced connectors. The
balanced connectors have three pins, making it possible to transmit
audio signals as a balanced signal, reducing the effect of external
noise. They also have a removable lock mechanism, which reduces
shaking in the connector area, making the connection highly reliable.
0
The balanced connection is an all-stage balanced configuration.
LR LR
Pre-amplifier
Power amplifier
AUDIO
OUT
AUDIO
IN
o
Phases of the balanced connectors
The XLR connector is internally wired in either of the following two
systems. This unit employs the European system.
0
European system (B PIN=HOT/ C PIN=COLD)
0
USA system (B PIN=COLD / C PIN=HOT)
If a product that employs the USA system is connected with this unit
via a balanced cable, the output signal may be phase-inverted. To
correct the inversion, connect the one side XLR connector reversing
the B PIN and C PIN.
