DIGITAL AUDIO IN
DIGITAL AUDIO IN
AUDIO IN
AUDIO IN
AUDIO IN
AUDIO IN
AUDIO OUT
AUDIO OUT
PRE OUT
PRE OUT
POWER AMP IN
POWER AMP IN
HDMI ARC
HDMI ARC
NETWORK
NETWORK
OPTICAL
OPTICAL
COAXIAL
COAXIAL
CD
CD
LINE
LINE
PHONO
PHONO
SIGNAL GND
SIGNAL GND
RECORDER
RECORDER
RECORDER
RECORDER
SUBWOOFER
SUBWOOFER
5V/1A
5V/1A
IN
IN
REMOTE CONTROL
REMOTE CONTROL
OUT
OUT
SPEAKERS
SPEAKERS
AC IN
AC IN
Bluetooth / Wi-Fi
Bluetooth / Wi-Fi
ANTENNA
ANTENNA
Bluetooth / Wi-Fi
Bluetooth / Wi-Fi
ANTENNA
ANTENNA
oiQ
0
Q
1
Q
2
Q
3
Q
4
H

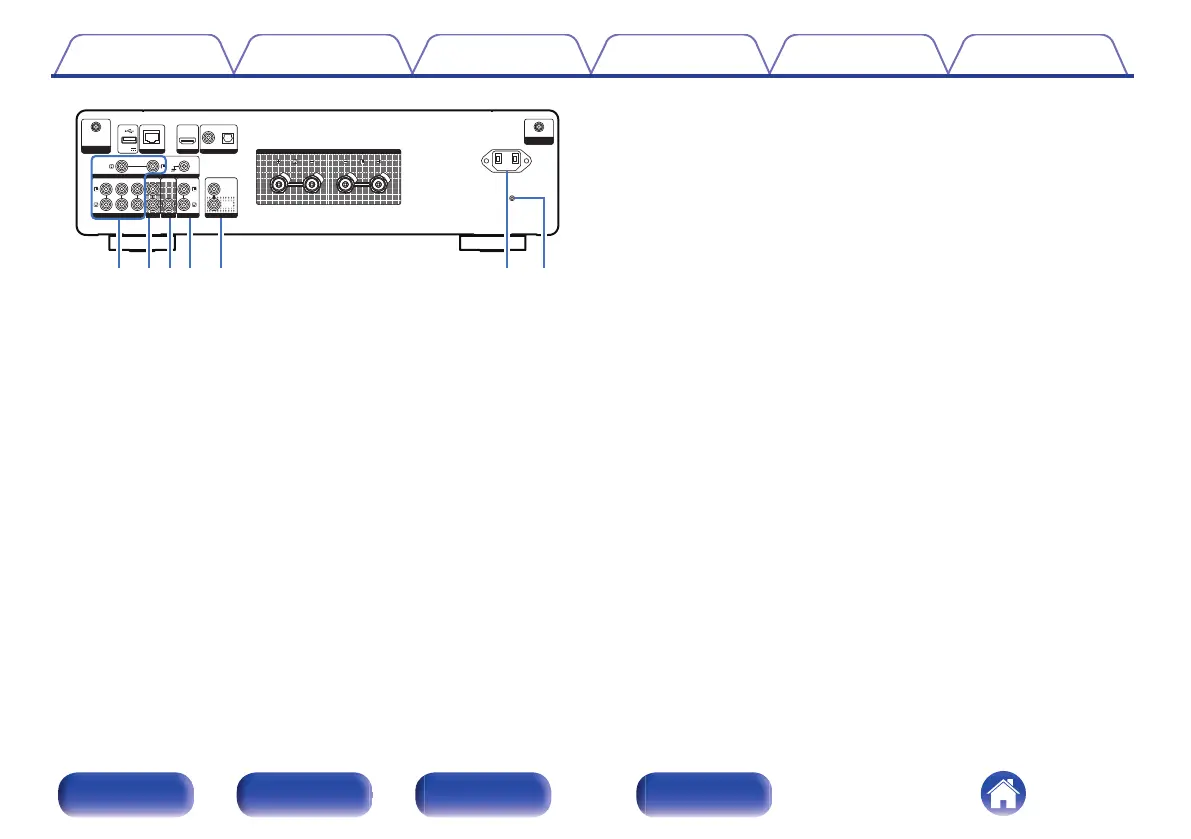

AUDIO IN connectors
Used to connect devices equipped with analog audio output
connectors.
0
“Connecting a playback device” (v p. 23)
0
“Connecting a recording device” (v p. 24)
I
AUDIO OUT connectors
Used to connect the input connector of a recorder. (v p. 24)
J
PRE OUT connector
Used to connect a subwoofer with a built-in amplifier. (v p. 21)
K
Power amplifier connectors (POWER AMP IN)
Used to connect a pre-amplifier when this unit is used as a power
amplifier. (v p. 30)
L
REMOTE CONTROL connectors
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 31)
M
AC inlet (AC IN)
Used to connect the power cord. (v p. 32)
N
Firmware reset button
Used to reset the firmware to the default state. (v p. 95)
