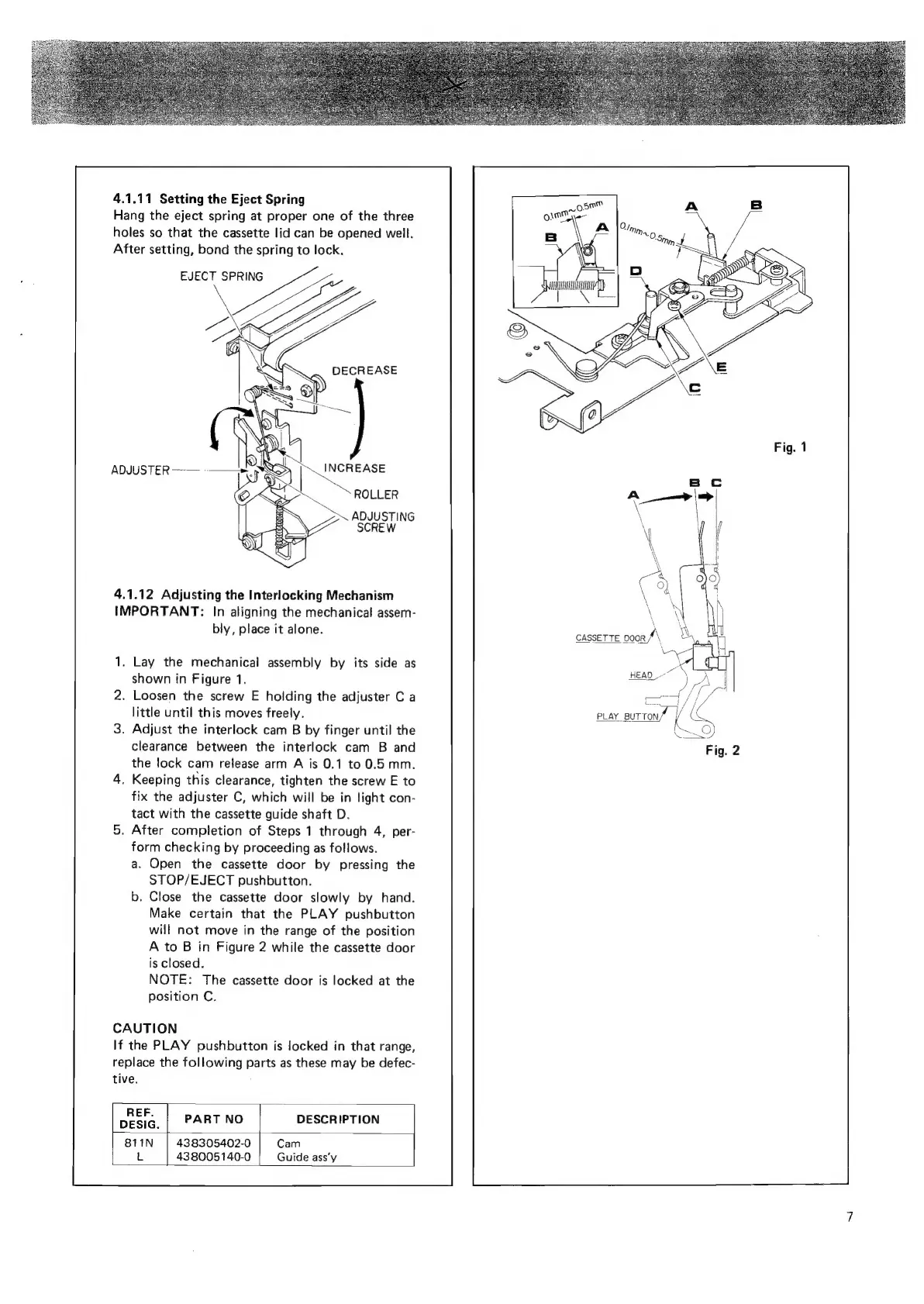

4.1.11 Setting the Eject Spring
Hang the eject spring at proper one of the three
holes so that the cassette lid can be opened well.
After setting, bond the spring to lock.
EJECT SPRING
ADJUSTER —— -- | INCREASE
ROLLER
>> ADJUSTING
SCREW
4.1.12 Adjusting the Interlocking Mechanism
IMPORTANT: In aligning the mechanical assem-
bly, place it alone.
1. Lay the mechanical assembly by its side as
shown in Figure 1.
2. Loosen the screw E holding the adjuster C a
little until this moves freely.
3. Adjust the interlock cam B by finger until the
clearance between the interlock cam B and
the lock cam release arm A is 0.1 to 0.6 mm.
. Keeping this clearance, tighten the screw E to
fix the adjuster C, which will be in light con-
tact with the cassette guide shaft D.
. After completion of Steps 1 through 4, per-
form checking by proceeding as follows.
a. Open the cassette door by pressing the
STOP/EJECT pushbutton.
b. Close the cassette door slowly by hand.
Make certain that the PLAY pushbutton
will not move in the range of the position
A to B in Figure 2 while the cassette door
is closed.
NOTE: The cassette door is locked at the
position C.
CAUTION
If the PLAY pushbutton is locked in that range,
replace the following parts as these may be defec-
tive.
REF.
DESIG.
811N 438305402-0 Cam
L 438005140-0 Guide ass’y
PART NO DESCRIPTION
