Standard configuration and connection
Up to 11.2-channels can be connected by using either UNBALANCED
RCA connectors or BALANCED XLR connectors.
When using UNBALANCED RCA connectors for connection, set the
input change switch to “UNBALANCED” on MM8077.
When using BALANCED XLR connectors for connection, set the input
change switch to “BALANCED” on MM8077.
This example explains how to make a connection when using
UNBALANCED RCA connectors.
n

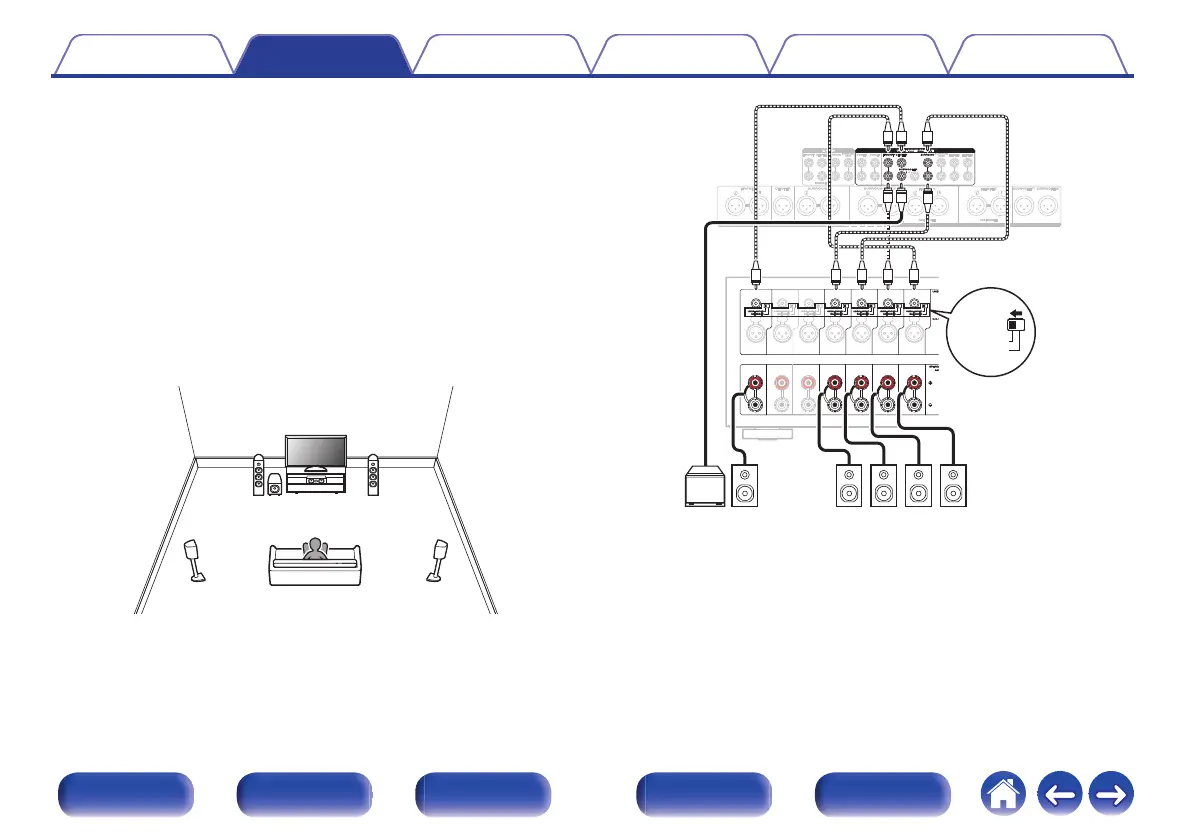

5.1-channel playback
This serves as a basic 5.1-channel surround system.
.
FL
SW C
SL
FR
SR
.
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
BALANCEDBALANCED
UNBALANCEDUNBALANCED
SW SR SL FR FLC
【
