7.1-channel playback
n

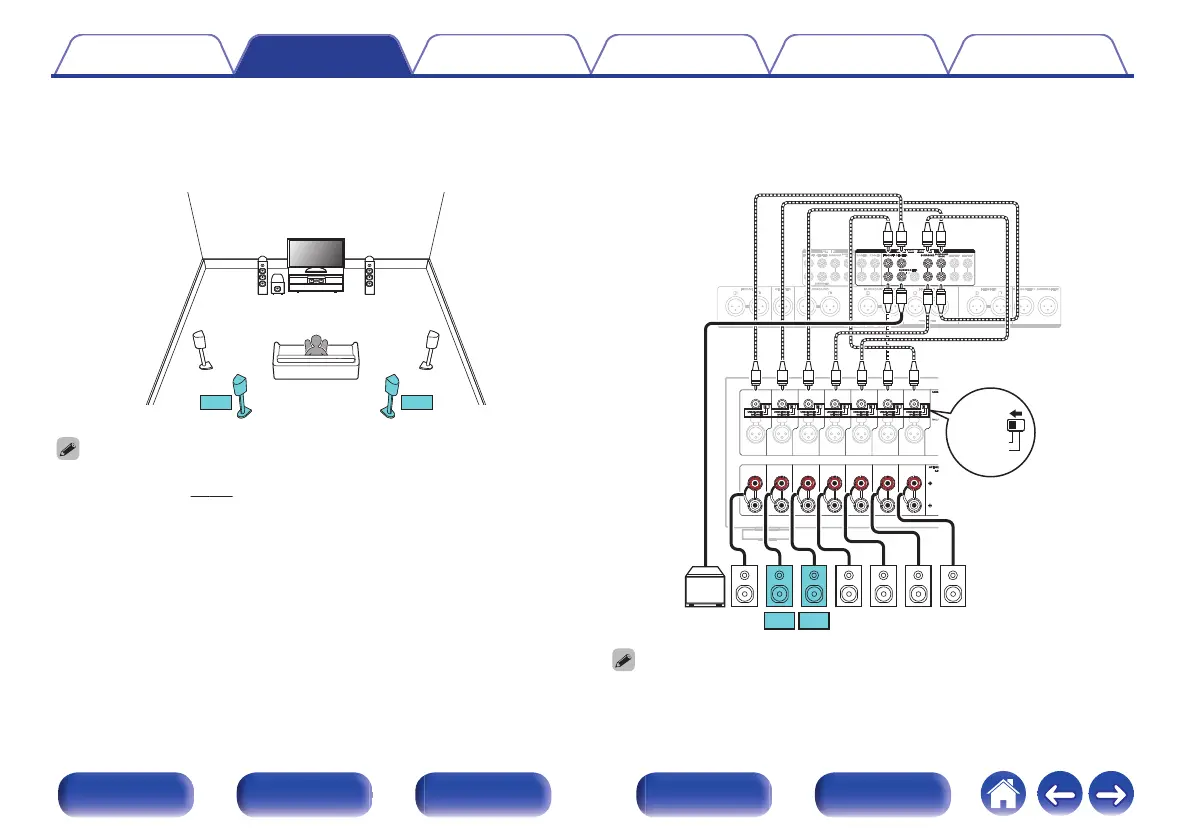

Example connections when using surround back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
.
FL
SW
C
SL
FR
SR
SBL SBR
0
Set “Floor” - “Layout” to “5ch & SB” in the menu when connecting in this
configuration. (v
p. 218)
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
BALANCED
BALANCED
UNBALANCED
UNBALANCED
SW SR SL FR FLC
SBLSBR
【
MM8077
】
0
When using a single surround back speaker, connect it to the SURROUND BACK
L terminal.
