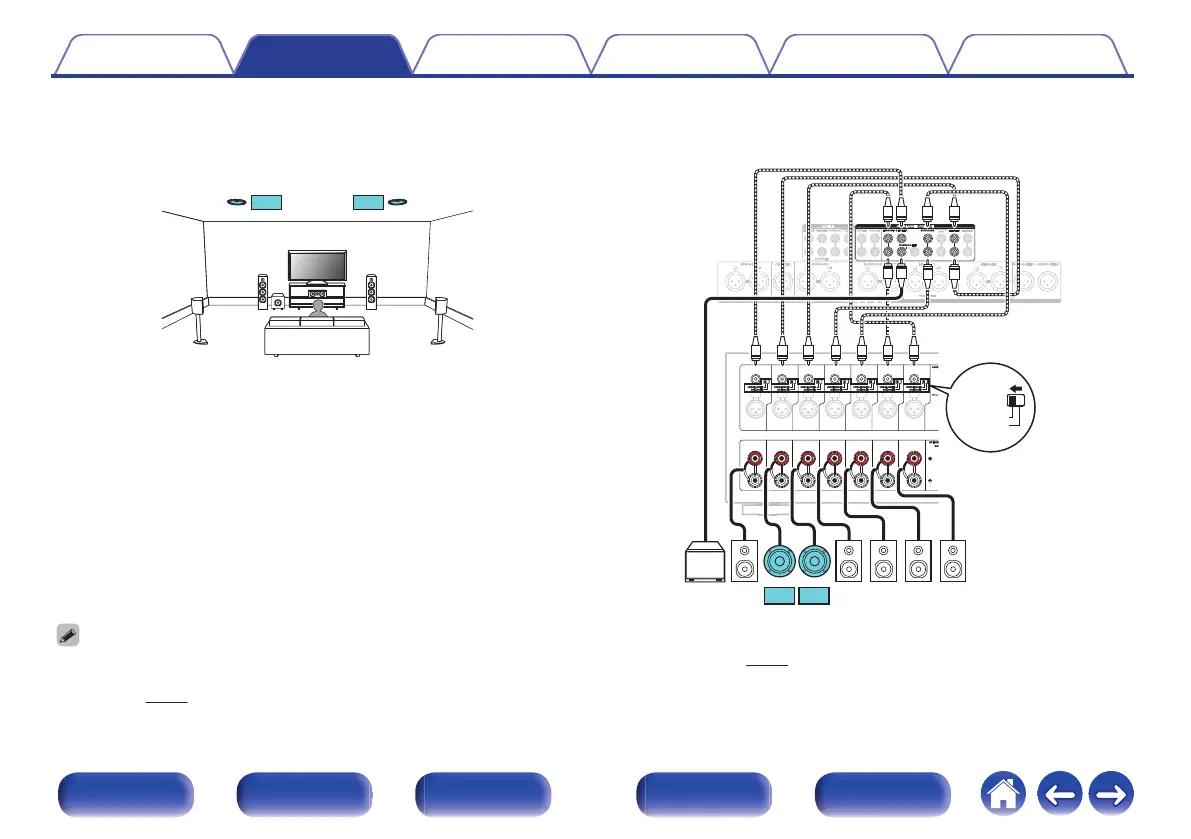

Example connections when using ceiling speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers.
.
C
FL FR
SW
SL SR
TML TMR
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
BALANCED
BALANCED
UNBALANCED
UNBALANCED
SW
SR SL FR FLC
TMLTMR
【
MM8077
】
0
Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. (v p. 218)
0
The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under “Height” - “Layout” in the
menu. (v p. 220)
