Marantz AV8805 - Page 42

o

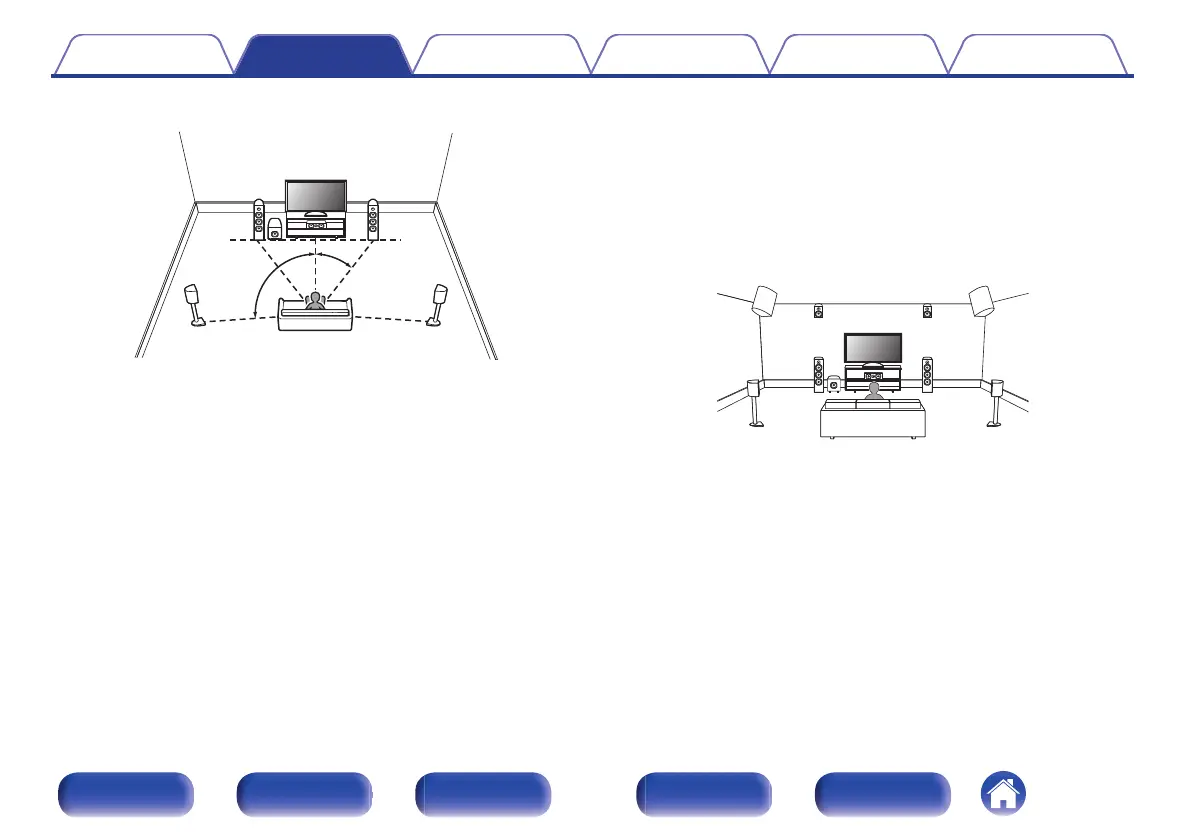

When 5.1-channel speakers are installed
.
z1
z2
FL
SW
C
SL
FR
SR
z1 22° - 30° z2 120°
o
Layout including height speakers and ceiling
speakers
n
Height speaker layout example
Combination of 5.1-channel layout and front height/rear height/center
height speakers.
.
FHL FHR
C
FL FR
SW
SL SR
RHL RHR
