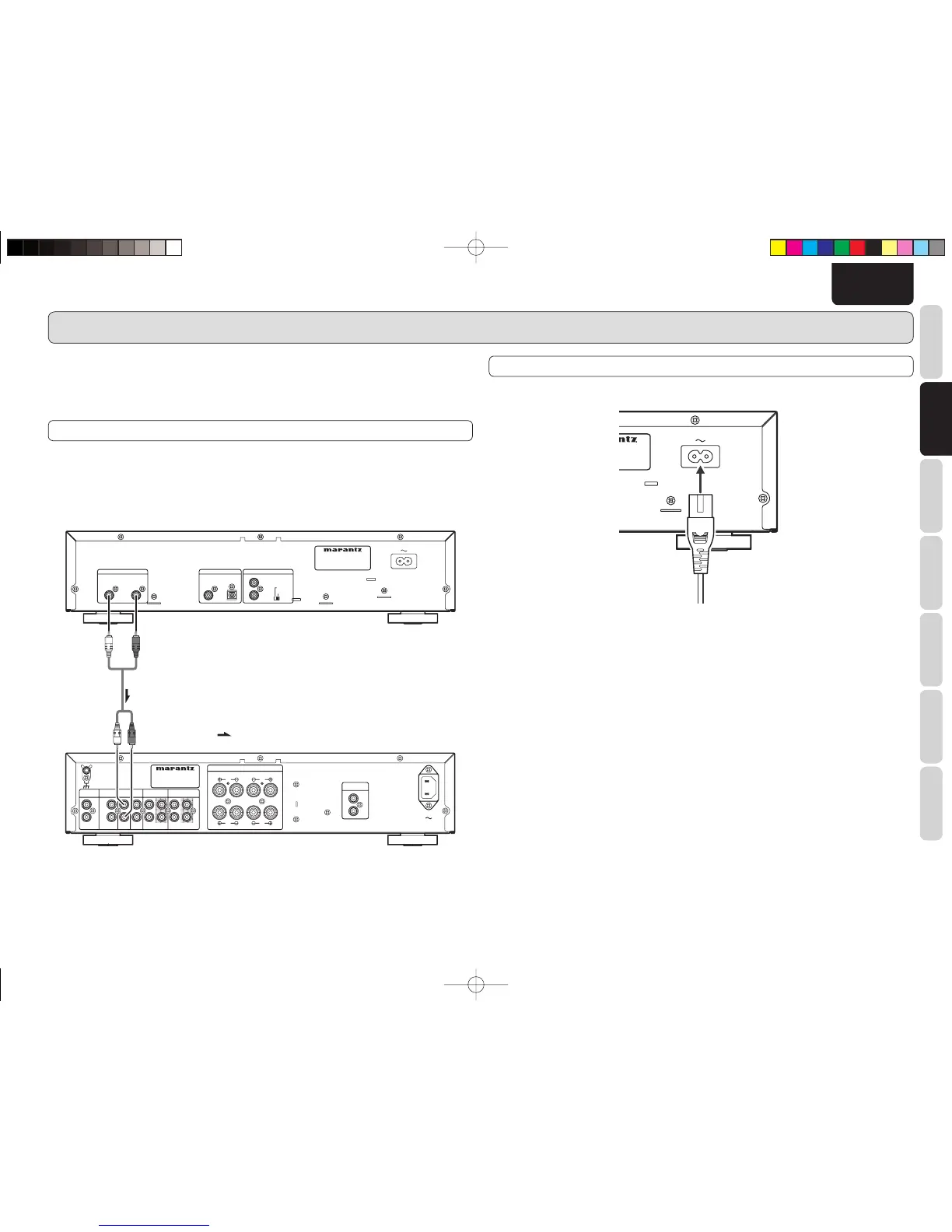

BASIC CONNECTIONS
This CD player is connected to an amplifier, CD recorder and other components for use. To ensure that the
components are connected properly, refer to the instruction manuals that come with the components to be
connected.
Before connecting the components, be absolutely sure to turn off their power.
CONNECTING TO AN AMPLIFIER
Use the audio connecting cord to connect the player with a stereo amplifier or AV amplifier.
When making the connections, insert the plugs securely into the connectors. Failure to insert the plugs
securely may result in noise.
Note:
Do not connect the player to the PHONO input connectors on the amplifier.
SPEAKER SYSTEMS
SPEAKER SYSTEMS
REMOTE
REMOTE
CONTROL
CONTROL
R
OUT
OUT
IN
IN
OUT
OUT
IN
IN
L
R
L
SYSTEM B
SYSTEM B
SYSTEM A
SYSTEM A
R L
R L
AC IN
AC IN
R
L
MODEL NO.
MODEL NO.
PM5003
PM5003
PHONO
PHONO
TUNER
TUNER
CD
CD
AUX
AUX /
DVD
DVD
IN
IN
OUT
OUT
RECORDER 2
RECORDER 2
(
MD
MD /
TAPE
TAPE
)
RECORDER 1
RECORDER 1
(
CD-R
CD-R
)
PHONO
PHONO
GND
GND
REMOTE CONTROL
REMOTE CONTROL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
ANALOG OUTPUT
ANALOG OUTPUT
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OPTICAL
OPTICAL
COAXIAL
COAXIAL
MODEL NO.
MODEL NO.
CD5003
CD5003
IN
IN
OUT
OUT
L R
AC IN
AC IN
:
(Red)(White)
Audio connecting cord (supplied)
(Red)
(White)
Signal fl ow
Amplifi er
CONNECTING THE POWER SUPPLY
1. Plug the power cord into AC IN jack on the back panel.
MODEL NO. C
D5003
CD500 3
AC IN
AC IN
2. Turn on the power switch of the audio unit (amplifier, etc.) that is connected with this unit. Set the selector
on the connected unit to this unit.
3. Plug the power cord into an AC outlet.
