INSTALLATION

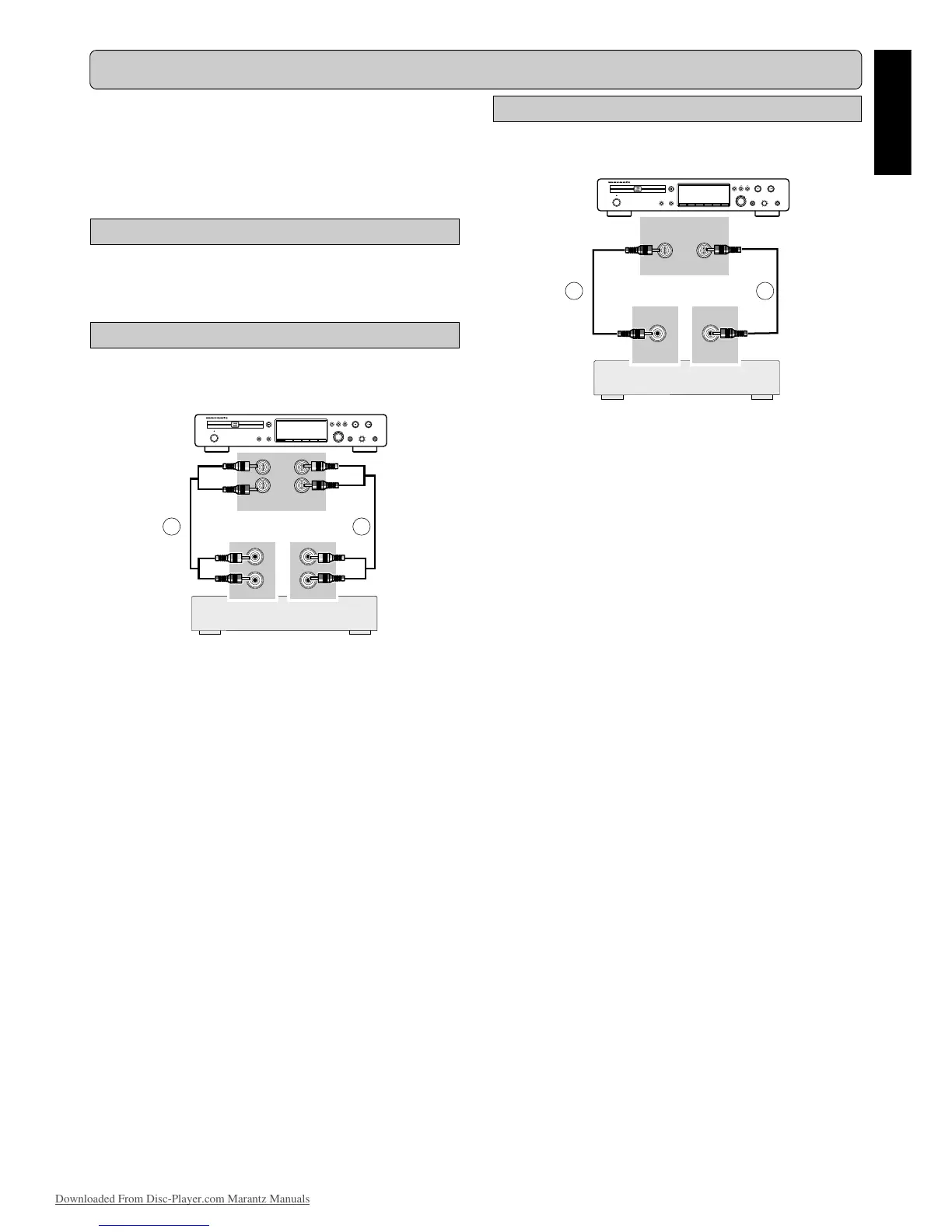

Digital Coaxial connections
For recording and playing, connect the CD-Recorder to a digital
amplifier or other equipments based on the diagram below:
Recordable
ReWritable
POWER
CD RECORDER DR6000
PLAY/PAUSESTOP
REC
-+
PUSH ENTER
EASY JOG
LEVEL PHONES
REC TYPE REW FF
FINALIZE
DELETE
CANCEL
MENU
STORE
SOURCE ERASE
OPEN/CLOSE
DISPLAY SCROLLPE
ON/OFF
OUTPUT INPUT
OUTPUT
DIGITAL IN/OUT
INPUT
34
1 For an external recording, connect the cable 3 between the
DIGITAL INPUT-socket on the CD-Recorder and the DIG-
ITAL OUTPUT-socket of an external amplifier or CD player.
2 For playback, connect cable 4 between the DIGITAL OUT-
PUT-socket on the CD-Recorder and the DIGITAL INPUT-
socket of an amplifier e.g. DAT or DCC.
Digital Optical connections
This CD-Recorder can be used to record directly or through a
(pre-) amplifier from any digital or analog audio source.
In addition, the appliance can be used as a regular CD player.
Read how to connect the CD-Recorder based on the possibili-
ties your other audio equipment offers.
Please refer to the operating instructions for your other audio
equipment first.
The following options are available:
- analog connections
- digital coaxial connections
- digital optical connections
Analog connections
For recording and playing, connect the CD-Recorder to an am-
plifier (preferably the CD-Recorder or TAPE connection) based
on the diagram below:
Recordable
ReWritable
POWER
CD RECORDER DR6000
PLAY/PAUSESTOP
REC
-+
PUSH ENTER
EASY JOG
LEVEL PHONES
REC TYPE REW FF
FINALIZE
DELETE
CANCEL
MENU
STORE
SOURCE ERASE
OPEN/CLOSE
DISPLAY SCROLLPE
ON/OFF
OUTPUT
L
R
INPUT
L
R
INPUT
ANALOG IN/OUT
OUTPUT
R
L
12
1 For recording, connect cable 1 between the ANALOG IN-
PUT-sockets on the CD-Recorder and the CD LINE- or
TAPE OUTPUT-sockets of an amplifier.
2 For playback, connect cable 2 between the ANALOG OUT-
PUT-sockets on the CD-Recorder and the ANALOG IN-
PUT-sockets of an amplifier e.g. TAPE IN, CD or AUX.
Note:
Never use the PHONO input.
Amplifier
Amplifier
