INSTALLATION D-BUS CONNECTION
For recording and playing, connect the CD-Recorder to a digital
amplifier or other equipments based on the diagram below. Be-
fore connection the cables, remove the dust caps from the dig-
ital optical connections. We recommend that you save the
caps.
Recordable
ReWritable
POWER
CD RECORDER DR6000
PLAY/PAUSESTOP
REC
-+
PUSH ENTER
EASY JOG
LEVEL PHONES
REC TYPE REW FF
FINALIZE
DELETE
CANCEL
MENU
STORE
SOURCE ERASE
OPEN/CLOSE
DISPLAY SCROLLPE
ON/OFF
OUTPUT INPUT
OPTICAL
INPUT OUTPUT
56

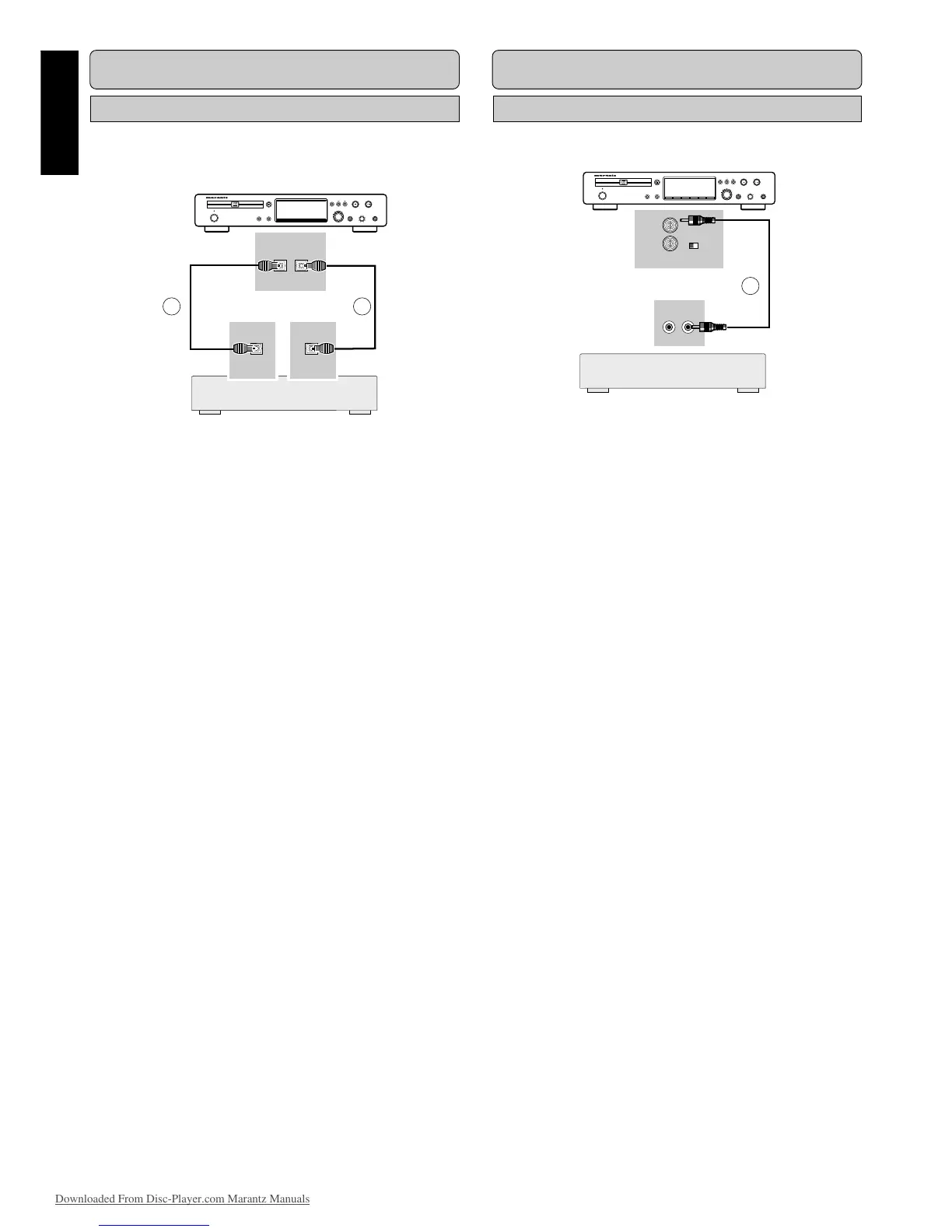

1 For external recording, connect a fiber-optic cable 5 be-
tween the DIGITAL OPTICAL INPUT of the CD-Recorder
and the DIGITAL OPTICAL OUTPUT of an external ampli-
fier or CD player.
2 For playback, connect cable 6 between the OPTICAL OUT-
PUT-socket on the CD-Recorder and the DIGITAL OPTI-
CAL INPUT-socket of an amplifier e.g. DAT or DCC.
Note:
For playback, the digital coaxial outputs or analog outputs of
the CD Player and CD-Recorder should be connected to an
amplifier
Remote control cable connections
By connecting DR6000 to the Marantz amplifier using a D-BUS
remote control cable 7, you can operate the operations of
DR6000 from the remote control of the amplifier. Set the re-
mote control selector to ‘EXTERNAL’.
Recordable
ReWritable
POWER
CD RECORDER DR6000
PLAY/PAUSESTOP
REC
-+
PUSH ENTER
EASY JOG
LEVEL PHONES
REC TYPE REW FF
FINALIZE
DELETE
CANCEL
MENU
STORE
SOURCE ERASE
OPEN/CLOSE
DISPLAY SCROLLPE
ON/OFF
INTERNALEXTERNAL
CONTROL
REMOTE
IN
OUT
REMOTE
CONTROL
OUT
IN
7
Note:
When you don’t use the D-BUS connection, ALWAYS set
the remote control selector to ‘INTERNAL’.
Marantz Amplifier
Amplifier
