CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
2-1. Short the three short lands of FPC cable with sol-
der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D4)
2-2. Disconnect Connectors (CN301), (CN401) and
(CN601). Remove two Screws (S-5A) and (S-5B)
and lift the DVD Main CBA Unit. (Fig. D4)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D4)

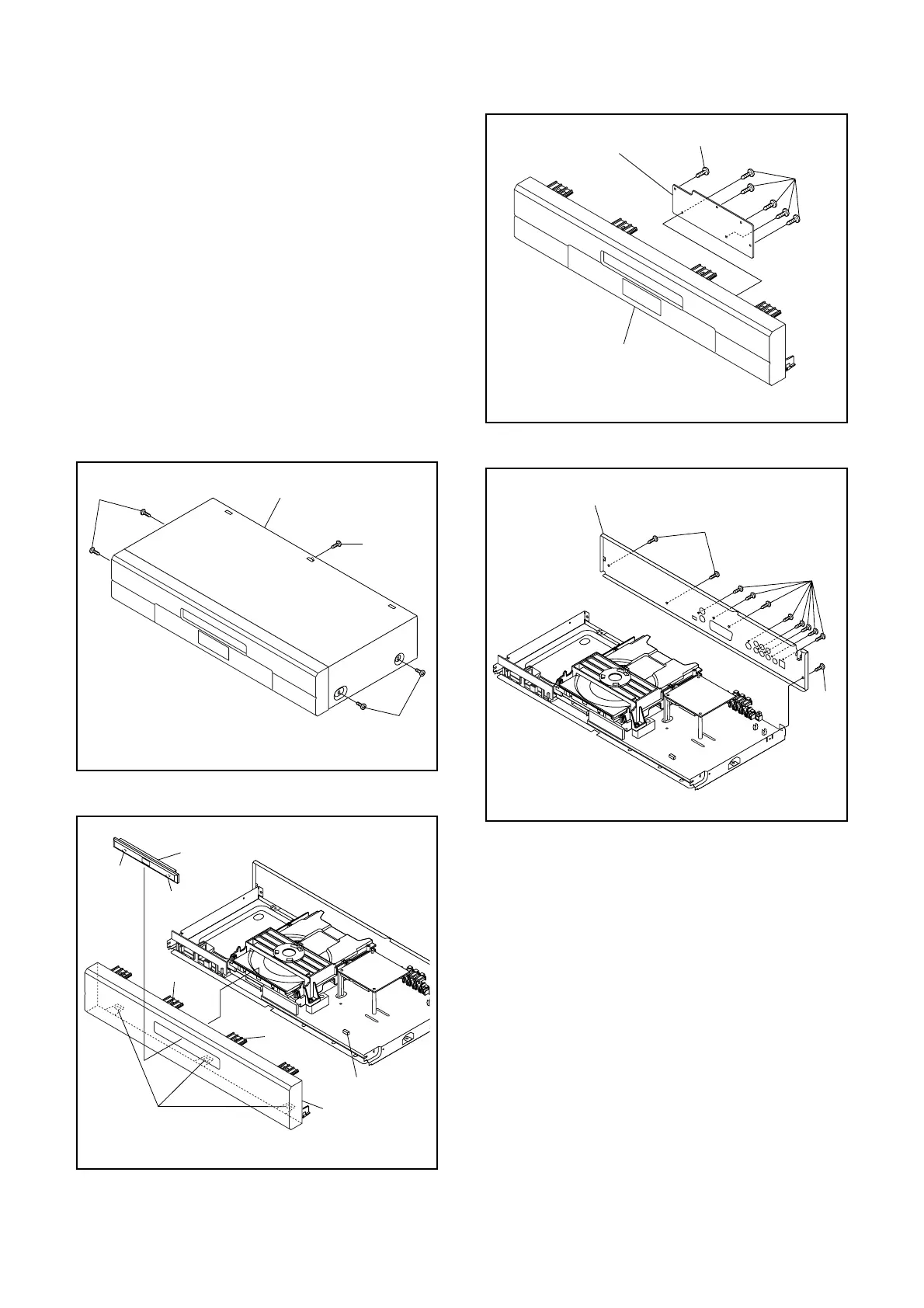

Fig. D1
[1] Top Cover
(S-1)
(S-1)
(S-1)
[2] Front Unit
Tray Panel
CN2081
(L-2)
(L-2)
(L-3)
(L-1)
(L-1)
Fig. D2
[3] Function CBA
[4] Front Assembly
(S-2)
(S-2)
Fig. D3
[5] Rear Panel
(S-4)
(S-4)
(S-3)
Fig. D4
To Next Page
