SIGNAL SYSTEM
PAL color
APPLICABLE DISCS
(1) DVD-Video Discs
1-layer 12cm single-sided discs, 2-layer 12cm single-sided
discs, 2-layer 12cm double-sided discs (1 layer per side)
1-layer 8cm single-sided discs, 2-layer 8cm single-sided
discs, 2-layer 8cm double-sided discs (1 layer per side)
(2) DVD-R/DVD-RW
(3) Compact discs (CD-DA, Video CD)
12cm discs, 8cm discs
(4) CD-R/CD-RW
S-VIDEO OUTPUT
Y output level: 1Vp-p (75 /ohms)
C output level: 0.30Vp-p
Output connectors: S connectors, 1 set
VIDEO OUTPUT
Output level: 1Vp-p (75 /ohms)
Output connector: Pin jacks, 1 set
COMPONENT OUTPUT
Y output level: 1Vp-p (75 /ohms)
C
B
/P
B
output level: 0.7Vp-p (75 /ohms)
C
R
/P
R
output level: 0.7Vp-p (75 /ohms)
Output connector: Pin jacks, 1 set
AUDIO/VIDEO
21-pin scart jack
AUDIO OUTPUT
Output level: 2Vrms
2 channel (L, R) output connector: Pin jack, 1 set
AUDIO OUTPUT PROPERTIES
(1) Frequency response
1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling)
: 4Hz to 44kHz (96 kHz sampling)
2 CDs : 4Hz to 20kHz
(2) S/N ratio : 115dB
(3)
Total harmonic distortion
: 1kHz CD: 0.0045%
(4) Dynamic range : DVD: 100dB
CD: 98dB
DIGITAL AUDIO OUTPUT
Optical digital output: Optical connector, 1 set
Coaxial digital output: Pin jack, 1 set
POWER SUPPLY
AC 230V, 50Hz
POWER CONSUMPTION
12 W
MAXIMUM EXTERNAL DIMENSIONS
440 (width) x 75 (height) x 211 (depth) mm
MASS
2.1 Kg (4.6 lbs)
REMOTE CONTROL UNIT
RC6500DV
Infrared pulse type
Supply: DC 3V, 2 R6P/AA batteries

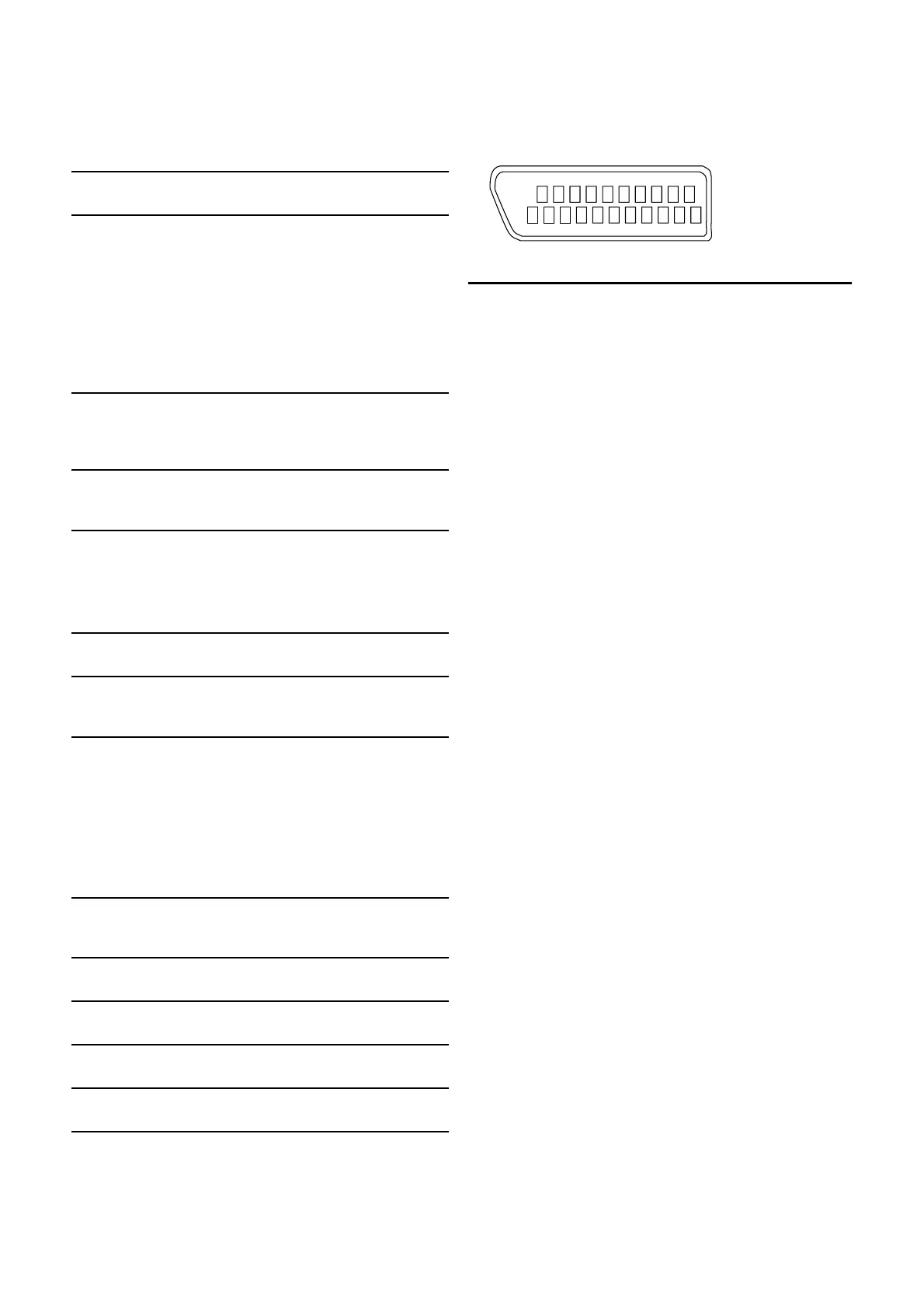

Contacts, signal levels and impedances
Contact 1
Audio Output (Right): 2.0Vrms/ 1kΩ
Contact 3
Audio Output (Left): 2.0Vrms/ 1kΩ
Contact 4
Audio, Ground
Contact 5
RGB, Ground (Blue)
Contact 7
RGB Output (Blue): 0.7Vp-p/75Ω
Contact 8
Function Select Switching Control
L : 0.0~2.0V DC
Power Off
M: 4.5~7.0V DC
Wide-Screen Mode
(16:9)
H: 9.5~12.0V DC
Normal Mode (4:3)
Contact 9
RGB, Ground (Green)
Contact 11
RGB Output (Green): 0.7Vp-p/75Ω
Contact 13
RGB, Ground (Red)
Contact 14
RGB Switching Control, Ground
Contact 15
RGB Output (Red): 0.7Vp-p/75Ω
Contact 16
RGB Switching Control
H: 3.3V DC RGB Mode
Contact 17
Video Output Signal, Ground
Contact 18
Video Input Signal, Ground
Contact 19
Video Output (CVBS): 1.0Vp-p/75Ω
Contact 21
Common Ground (shielding)
135
7
9
2
46
8
10
1214
16
1820
11
13
15
1719
21
TECHNICAL
SPECIFICATIONS
