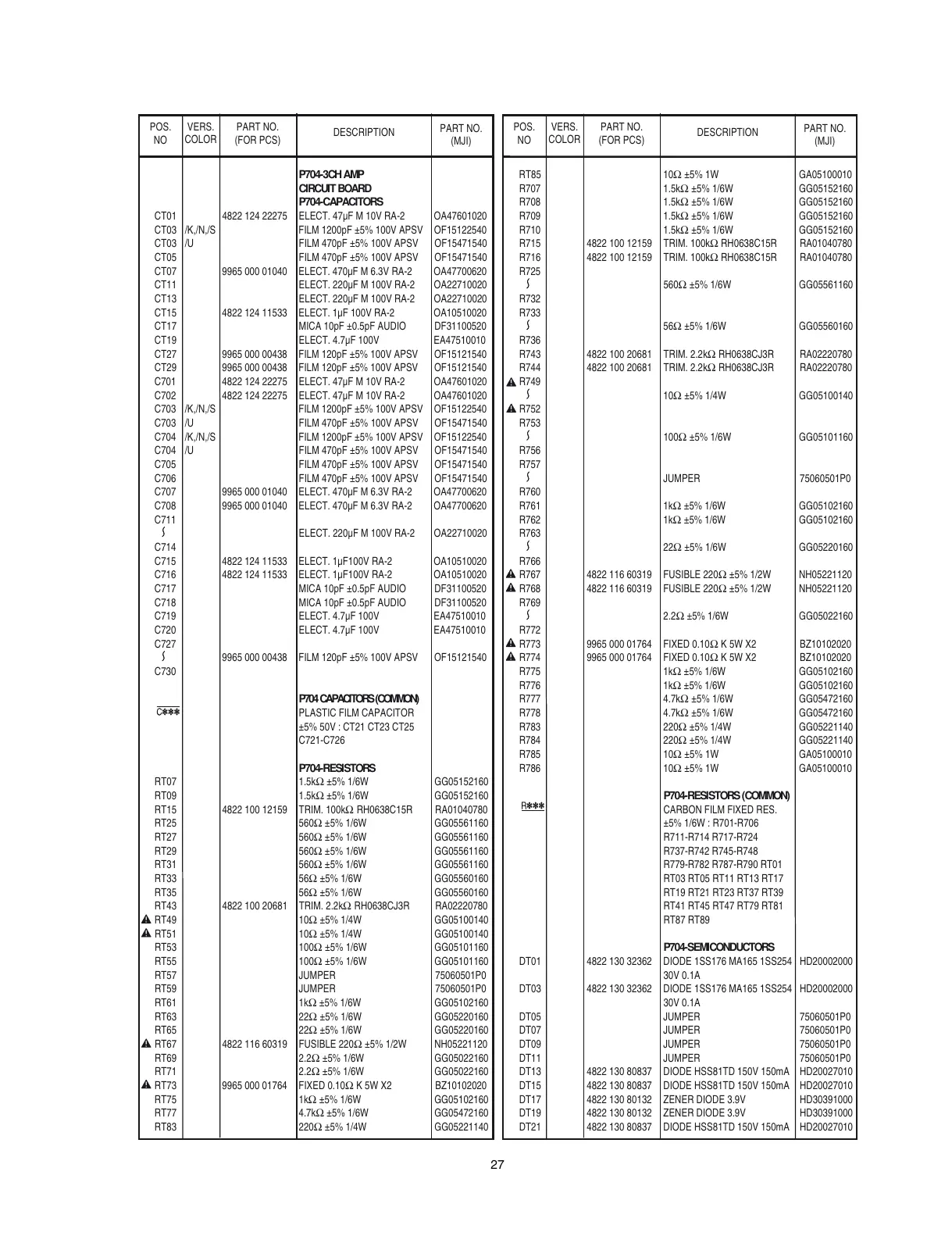

Marantz MM9000 - Page 17

27
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
P704-3CH AMP
CIRCUIT BOARD
P704-CAPACITORS
CT01 4822 124 22275 ELECT. 47µF M 10V RA-2 OA47601020
CT03 /K,/N,/S FILM 1200pF ±5% 100V APSV OF15122540
CT03 /U FILM 470pF ±5% 100V APSV OF15471540
CT05 FILM 470pF ±5% 100V APSV OF15471540
CT07 9965 000 01040 ELECT. 470µF M 6.3V RA-2 OA47700620
CT11 ELECT. 220µF M 100V RA-2 OA22710020
CT13 ELECT. 220µF M 100V RA-2 OA22710020
CT15 4822 124 11533 ELECT. 1µF 100V RA-2 OA10510020
CT17 MICA 10pF ±0.5pF AUDIO DF31100520
CT19 ELECT. 4.7µF 100V EA47510010
CT27 9965 000 00438 FILM 120pF ±5% 100V APSV OF15121540
CT29 9965 000 00438 FILM 120pF ±5% 100V APSV OF15121540
C701 4822 124 22275 ELECT. 47µF M 10V RA-2 OA47601020
C702 4822 124 22275 ELECT. 47µF M 10V RA-2 OA47601020
C703 /K,/N,/S FILM 1200pF ±5% 100V APSV OF15122540
C703 /U FILM 470pF ±5% 100V APSV OF15471540
C704 /K,/N,/S FILM 1200pF ±5% 100V APSV OF15122540
C704 /U FILM 470pF ±5% 100V APSV OF15471540
C705 FILM 470pF ±5% 100V APSV OF15471540
C706 FILM 470pF ±5% 100V APSV OF15471540
C707 9965 000 01040 ELECT. 470µF M 6.3V RA-2 OA47700620
C708 9965 000 01040 ELECT. 470µF M 6.3V RA-2 OA47700620
C711
ELECT. 220µF M 100V RA-2 OA22710020
C714
C715 4822 124 11533 ELECT. 1µF100V RA-2 OA10510020
C716 4822 124 11533 ELECT. 1µF100V RA-2 OA10510020
C717 MICA 10pF ±0.5pF AUDIO DF31100520
C718 MICA 10pF ±0.5pF AUDIO DF31100520
C719 ELECT. 4.7µF 100V EA47510010
C720 ELECT. 4.7µF 100V EA47510010
C727
9965 000 00438 FILM 120pF ±5% 100V APSV OF15121540
C730
P704 CAPACITORS (COMMON)
PLASTIC FILM CAPACITOR
±5% 50V : CT21 CT23 CT25
C721-C726
P704-RESISTORS
RT07 1.5kΩ ±5% 1/6W GG05152160
RT09 1.5kΩ ±5% 1/6W GG05152160
RT15 4822 100 12159 TRIM. 100kΩ RH0638C15R RA01040780
RT25 560Ω ±5% 1/6W GG05561160
RT27 560Ω ±5% 1/6W GG05561160
RT29 560Ω ±5% 1/6W GG05561160
RT31 560Ω ±5% 1/6W GG05561160
RT33 56Ω ±5% 1/6W GG05560160
RT35 56Ω ±5% 1/6W GG05560160
RT43 4822 100 20681 TRIM. 2.2kΩ RH0638CJ3R RA02220780
RT49 10Ω ±5% 1/4W GG05100140
RT51 10Ω ±5% 1/4W GG05100140
RT53 100Ω ±5% 1/6W GG05101160
RT55 100Ω ±5% 1/6W GG05101160
RT57 JUMPER 75060501P0
RT59 JUMPER 75060501P0
RT61 1kΩ ±5% 1/6W GG05102160
RT63 22Ω ±5% 1/6W GG05220160
RT65 22Ω ±5% 1/6W GG05220160
RT67 4822 116 60319 FUSIBLE 220Ω ±5% 1/2W NH05221120
RT69 2.2Ω ±5% 1/6W GG05022160
RT71 2.2Ω ±5% 1/6W GG05022160
RT73 9965 000 01764 FIXED 0.10Ω K 5W X2 BZ10102020
RT75 1kΩ ±5% 1/6W GG05102160
RT77 4.7kΩ ±5% 1/6W GG05472160
RT83 220Ω ±5% 1/4W GG05221140
RT85 10Ω ±5% 1W GA05100010
R707 1.5kΩ ±5% 1/6W GG05152160
R708 1.5kΩ ±5% 1/6W GG05152160
R709 1.5kΩ ±5% 1/6W GG05152160
R710 1.5kΩ ±5% 1/6W GG05152160
R715 4822 100 12159 TRIM. 100kΩ RH0638C15R RA01040780
R716 4822 100 12159 TRIM. 100kΩ RH0638C15R RA01040780
R725
560Ω ±5% 1/6W GG05561160
R732
R733
56Ω ±5% 1/6W GG05560160
R736
R743 4822 100 20681 TRIM. 2.2kΩ RH0638CJ3R RA02220780
R744 4822 100 20681 TRIM. 2.2kΩ RH0638CJ3R RA02220780
R749
10Ω ±5% 1/4W GG05100140
R752
R753
100Ω ±5% 1/6W GG05101160
R756
R757
JUMPER 75060501P0
R760
R761 1kΩ ±5% 1/6W GG05102160
R762 1kΩ ±5% 1/6W GG05102160
R763
22Ω ±5% 1/6W GG05220160
R766
R767 4822 116 60319 FUSIBLE 220Ω ±5% 1/2W NH05221120
R768 4822 116 60319 FUSIBLE 220Ω ±5% 1/2W NH05221120
R769
2.2Ω ±5% 1/6W GG05022160
R772
R773 9965 000 01764 FIXED 0.10Ω K 5W X2 BZ10102020
R774 9965 000 01764 FIXED 0.10Ω K 5W X2 BZ10102020
R775 1kΩ ±5% 1/6W GG05102160
R776 1kΩ ±5% 1/6W GG05102160
R777 4.7kΩ ±5% 1/6W GG05472160
R778 4.7kΩ ±5% 1/6W GG05472160
R783 220Ω ±5% 1/4W GG05221140
R784 220Ω ±5% 1/4W GG05221140
R785 10Ω ±5% 1W GA05100010
R786 10Ω ±5% 1W GA05100010
P704-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : R701-R706
R711-R714 R717-R724
R737-R742 R745-R748
R779-R782 R787-R790 RT01
RT03 RT05 RT11 RT13 RT17
RT19 RT21 RT23 RT37 RT39
RT41 RT45 RT47 RT79 RT81
RT87 RT89
P704-SEMICONDUCTORS
DT01 4822 130 32362 DIODE 1SS176 MA165 1SS254
30V 0.1A
HD20002000
DT03 4822 130 32362 DIODE 1SS176 MA165 1SS254
30V 0.1A
HD20002000
DT05 JUMPER 75060501P0
DT07 JUMPER 75060501P0
DT09 JUMPER 75060501P0
DT11 JUMPER 75060501P0
DT13 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010
DT15 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010
DT17 4822 130 80132 ZENER DIODE 3.9V HD30391000
DT19 4822 130 80132 ZENER DIODE 3.9V HD30391000
DT21 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010
