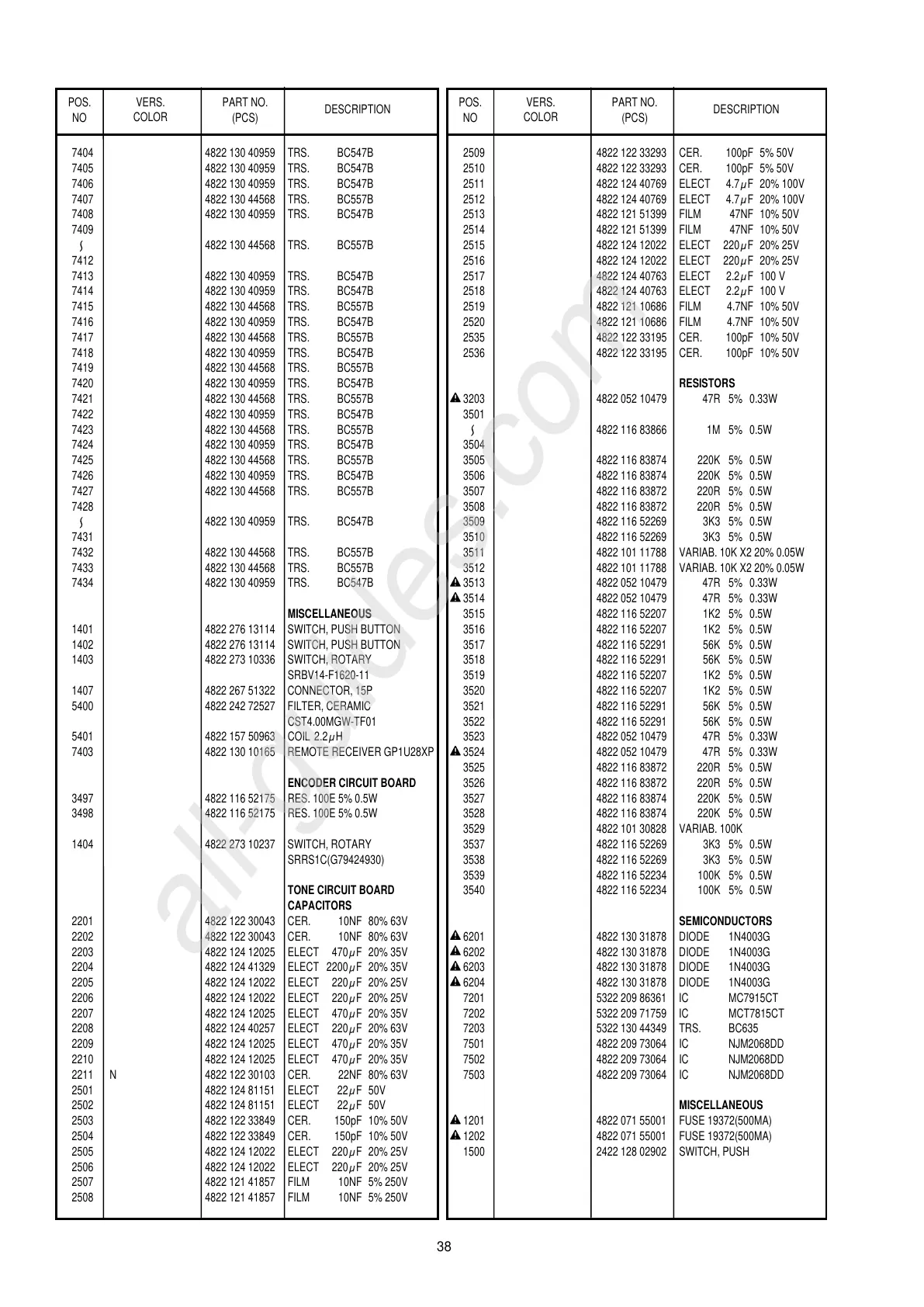

Marantz PM7000 Service Manual

38
POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
7404 4822 130 40959 TRS. BC547B
7405 4822 130 40959 TRS. BC547B
7406 4822 130 40959 TRS. BC547B
7407 4822 130 44568 TRS. BC557B
7408 4822 130 40959 TRS. BC547B
7409
4822 130 44568 TRS. BC557B
7412
7413 4822 130 40959 TRS. BC547B
7414 4822 130 40959 TRS. BC547B
7415 4822 130 44568 TRS. BC557B
7416 4822 130 40959 TRS. BC547B
7417 4822 130 44568 TRS. BC557B
7418 4822 130 40959 TRS. BC547B
7419 4822 130 44568 TRS. BC557B
7420 4822 130 40959 TRS. BC547B
7421 4822 130 44568 TRS. BC557B
7422 4822 130 40959 TRS. BC547B
7423 4822 130 44568 TRS. BC557B
7424 4822 130 40959 TRS. BC547B
7425 4822 130 44568 TRS. BC557B
7426 4822 130 40959 TRS. BC547B
7427 4822 130 44568 TRS. BC557B
7428
4822 130 40959 TRS. BC547B
7431
7432 4822 130 44568 TRS. BC557B
7433 4822 130 44568 TRS. BC557B
7434 4822 130 40959 TRS. BC547B
MISCELLANEOUS
1401 4822 276 13114 SWITCH, PUSH BUTTON
1402 4822 276 13114 SWITCH, PUSH BUTTON
1403 4822 273 10336 SWITCH, ROTARY
SRBV14-F1620-11
1407 4822 267 51322 CONNECTOR, 15P
5400 4822 242 72527 FILTER, CERAMIC
CST4.00MGW-TF01
5401 4822 157 50963 COIL 2.2 H
7403 4822 130 10165 REMOTE RECEIVER GP1U28XP
ENCODER CIRCUIT BOARD
3497 4822 116 52175 RES. 100E 5% 0.5W
3498 4822 116 52175 RES. 100E 5% 0.5W
1404 4822 273 10237 SWITCH, ROTARY
SRRS1C(G79424930)
TONE CIRCUIT BOARD
CAPACITORS
2201 4822 122 30043 CER. 10NF 80% 63V
2202 4822 122 30043 CER. 10NF 80% 63V
2203 4822 124 12025 ELECT 470 F 20% 35V
2204 4822 124 41329 ELECT 2200 F 20% 35V
2205 4822 124 12022 ELECT 220 F 20% 25V
2206 4822 124 12022 ELECT 220 F 20% 25V
2207 4822 124 12025 ELECT 470 F 20% 35V
2208 4822 124 40257 ELECT 220 F 20% 63V
2209 4822 124 12025 ELECT 470 F 20% 35V
2210 4822 124 12025 ELECT 470 F 20% 35V
2211 N 4822 122 30103 CER. 22NF 80% 63V
2501 4822 124 81151 ELECT 22 F 50V
2502 4822 124 81151 ELECT 22 F 50V
2503 4822 122 33849 CER. 150pF 10% 50V
2504 4822 122 33849 CER. 150pF 10% 50V
2505 4822 124 12022 ELECT 220 F 20% 25V
2506 4822 124 12022 ELECT 220 F 20% 25V
2507 4822 121 41857 FILM 10NF 5% 250V
2508 4822 121 41857 FILM 10NF 5% 250V
2509 4822 122 33293 CER. 100pF 5% 50V
2510 4822 122 33293 CER. 100pF 5% 50V
2511 4822 124 40769 ELECT 4.7 F 20% 100V
2512 4822 124 40769 ELECT 4.7 F 20% 100V
2513 4822 121 51399 FILM 47NF 10% 50V
2514 4822 121 51399 FILM 47NF 10% 50V
2515 4822 124 12022 ELECT 220
F 20% 25V
2516 4822 124 12022 ELECT 220 F 20% 25V
2517 4822 124 40763 ELECT 2.2 F 100 V
2518 4822 124 40763 ELECT 2.2 F 100 V
2519 4822 121 10686 FILM 4.7NF 10% 50V
2520 4822 121 10686 FILM 4.7NF 10% 50V
2535 4822 122 33195 CER. 100pF 10% 50V
2536 4822 122 33195 CER. 100pF 10% 50V
RESISTORS
3203 4822 052 10479 47R 5% 0.33W
3501
4822 116 83866 1M 5% 0.5W
3504
3505 4822 116 83874 220K 5% 0.5W
3506 4822 116 83874 220K 5% 0.5W
3507 4822 116 83872 220R 5% 0.5W
3508 4822 116 83872 220R 5% 0.5W
3509 4822 116 52269 3K3 5% 0.5W
3510 4822 116 52269 3K3 5% 0.5W
3511 4822 101 11788 VARIAB. 10K X2 20% 0.05W
3512 4822 101 11788 VARIAB. 10K X2 20% 0.05W
3513 4822 052 10479 47R 5% 0.33W
3514 4822 052 10479 47R 5% 0.33W
3515 4822 116 52207 1K2 5% 0.5W
3516 4822 116 52207 1K2 5% 0.5W
3517 4822 116 52291 56K 5% 0.5W
3518 4822 116 52291 56K 5% 0.5W
3519 4822 116 52207 1K2 5% 0.5W
3520 4822 116 52207 1K2 5% 0.5W
3521 4822 116 52291 56K 5% 0.5W
3522 4822 116 52291 56K 5% 0.5W
3523 4822 052 10479 47R 5% 0.33W
3524 4822 052 10479 47R 5% 0.33W
3525 4822 116 83872 220R 5% 0.5W
3526 4822 116 83872 220R 5% 0.5W
3527 4822 116 83874 220K 5% 0.5W
3528 4822 116 83874 220K 5% 0.5W
3529 4822 101 30828 VARIAB. 100K
3537 4822 116 52269 3K3 5% 0.5W
3538 4822 116 52269 3K3 5% 0.5W
3539 4822 116 52234 100K 5% 0.5W
3540 4822 116 52234 100K 5% 0.5W
SEMICONDUCTORS
6201 4822 130 31878 DIODE 1N4003G
6202 4822 130 31878 DIODE 1N4003G
6203 4822 130 31878 DIODE 1N4003G
6204 4822 130 31878 DIODE 1N4003G
7201 5322 209 86361 IC MC7915CT
7202 5322 209 71759 IC MCT7815CT
7203 5322 130 44349 TRS. BC635
7501 4822 209 73064 IC NJM2068DD
7502 4822 209 73064 IC NJM2068DD
7503 4822 209 73064 IC NJM2068DD
MISCELLANEOUS
1201 4822 071 55001 FUSE 19372(500MA)
1202 4822 071 55001 FUSE 19372(500MA)
1500 2422 128 02902 SWITCH, PUSH
