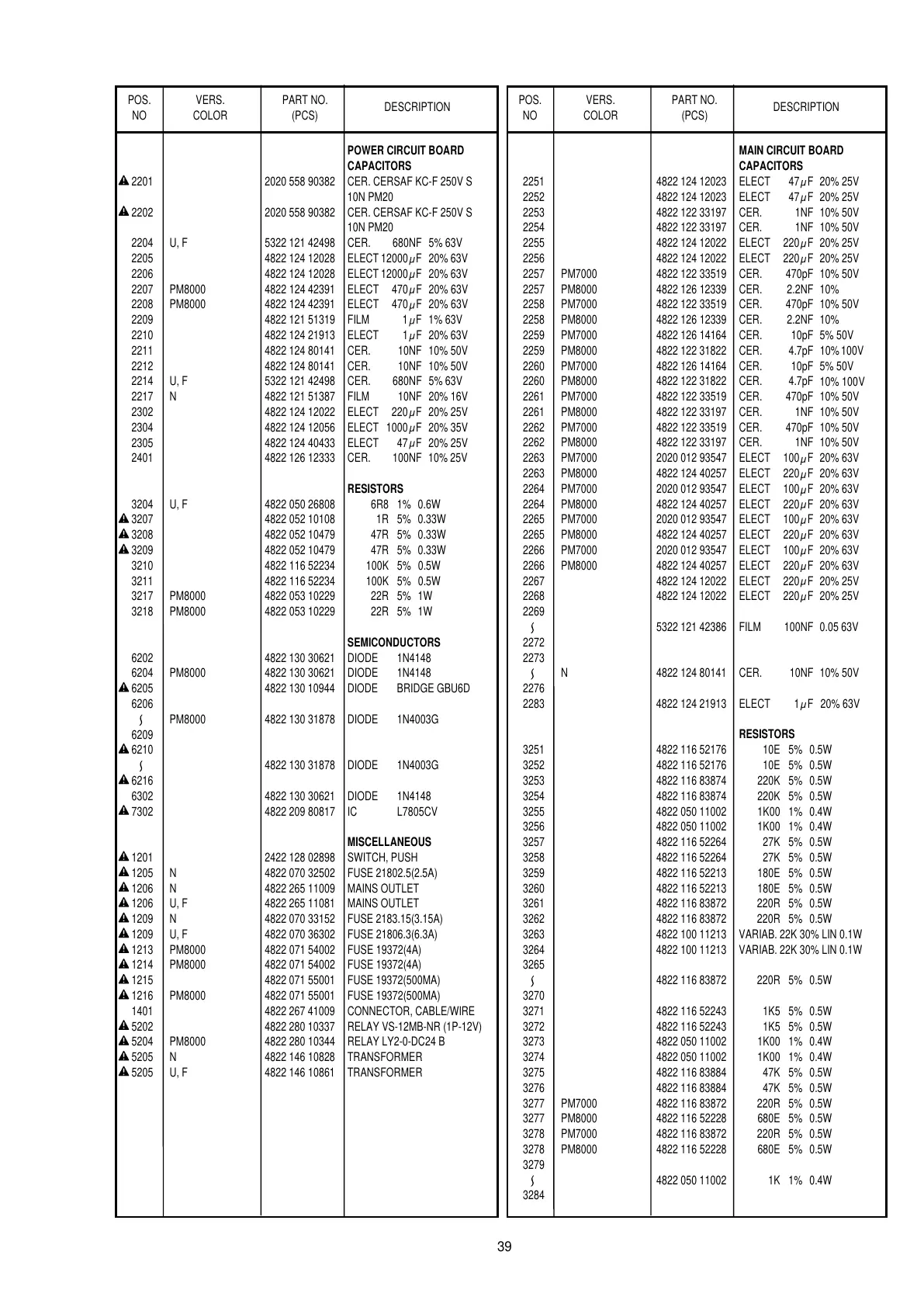

Marantz PM7000 Service Manual

39
POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
POS.
NO
VERS.
COLOR
PART NO.
(PCS)
DESCRIPTION
POWER CIRCUIT BOARD
CAPACITORS
2201 2020 558 90382 CER. CERSAF KC-F 250V S
10N PM20
2202 2020 558 90382 CER. CERSAF KC-F 250V S
10N PM20
2204 U, F 5322 121 42498 CER. 680NF 5% 63V
2205 4822 124 12028 ELECT 12000 F 20% 63V
2206 4822 124 12028 ELECT 12000 F 20% 63V
2207 PM8000 4822 124 42391 ELECT 470 F 20% 63V
2208 PM8000 4822 124 42391 ELECT 470 F 20% 63V
2209 4822 121 51319 FILM 1 F 1% 63V
2210 4822 124 21913 ELECT 1 F 20% 63V
2211 4822 124 80141 CER. 10NF 10% 50V
2212 4822 124 80141 CER. 10NF 10% 50V
2214 U, F 5322 121 42498 CER. 680NF 5% 63V
2217 N 4822 121 51387 FILM 10NF 20% 16V
2302 4822 124 12022 ELECT 220 F 20% 25V
2304 4822 124 12056 ELECT 1000 F 20% 35V
2305 4822 124 40433 ELECT 47 F 20% 25V
2401 4822 126 12333 CER. 100NF 10% 25V
RESISTORS
3204 U, F 4822 050 26808 6R8 1% 0.6W
3207 4822 052 10108 1R 5% 0.33W
3208 4822 052 10479 47R 5% 0.33W
3209 4822 052 10479 47R 5% 0.33W
3210 4822 116 52234 100K 5% 0.5W
3211 4822 116 52234 100K 5% 0.5W
3217 PM8000 4822 053 10229 22R 5% 1W
3218 PM8000 4822 053 10229 22R 5% 1W
SEMICONDUCTORS
6202 4822 130 30621 DIODE 1N4148
6204 PM8000 4822 130 30621 DIODE 1N4148
6205 4822 130 10944 DIODE BRIDGE GBU6D
6206
PM8000 4822 130 31878 DIODE 1N4003G
6209
6210
4822 130 31878 DIODE 1N4003G
6216
6302 4822 130 30621 DIODE 1N4148
7302 4822 209 80817 IC L7805CV
MISCELLANEOUS
1201 2422 128 02898 SWITCH, PUSH
1205 N 4822 070 32502 FUSE 21802.5(2.5A)
1206 N 4822 265 11009 MAINS OUTLET
1206 U, F 4822 265 11081 MAINS OUTLET
1209 N 4822 070 33152 FUSE 2183.15(3.15A)
1209 U, F 4822 070 36302 FUSE 21806.3(6.3A)
1213 PM8000 4822 071 54002 FUSE 19372(4A)
1214 PM8000 4822 071 54002 FUSE 19372(4A)
1215 4822 071 55001 FUSE 19372(500MA)
1216 PM8000 4822 071 55001 FUSE 19372(500MA)
1401 4822 267 41009 CONNECTOR, CABLE/WIRE
5202 4822 280 10337 RELAY VS-12MB-NR (1P-12V)
5204 PM8000 4822 280 10344 RELAY LY2-0-DC24 B
5205 N 4822 146 10828 TRANSFORMER
5205 U, F 4822 146 10861 TRANSFORMER
MAIN CIRCUIT BOARD
CAPACITORS
2251 4822 124 12023 ELECT 47 F 20% 25V
2252 4822 124 12023 ELECT 47 F 20% 25V
2253 4822 122 33197 CER. 1NF 10% 50V
2254 4822 122 33197 CER. 1NF 10% 50V
2255 4822 124 12022 ELECT 220 F 20% 25V
2256 4822 124 12022 ELECT 220 F 20% 25V
2257 PM7000 4822 122 33519 CER. 470pF 10% 50V
2257 PM8000 4822 126 12339 CER. 2.2NF 10%
2258 PM7000 4822 122 33519 CER. 470pF 10% 50V
2258 PM8000 4822 126 12339 CER. 2.2NF 10%
10%
2259 PM7000 4822 126 14164 CER. 10pF 5% 50V
2259 PM8000 4822 122 31822 CER. 4.7pF 100V
2260 PM7000 4822 126 14164 CER. 10pF 5% 50V
2260 PM8000 4822 122 31822 CER. 4.7pF
2261 PM7000 4822 122 33519 CER. 470pF 10% 50V
10% 100V
2261 PM8000 4822 122 33197 CER. 1NF 10% 50V
2262 PM7000 4822 122 33519 CER. 470pF 10% 50V
2262 PM8000 4822 122 33197 CER. 1NF 10% 50V
2263 PM7000 2020 012 93547 ELECT 100 F 20% 63V
2263 PM8000 4822 124 40257 ELECT 220 F 20% 63V
2264 PM7000 2020 012 93547 ELECT 100 F 20% 63V
2264 PM8000 4822 124 40257 ELECT 220 F 20% 63V
2265 PM7000 2020 012 93547 ELECT 100 F 20% 63V
2265 PM8000 4822 124 40257 ELECT 220 F 20% 63V
2266 PM7000 2020 012 93547 ELECT 100 F 20% 63V
2266 PM8000 4822 124 40257 ELECT 220 F 20% 63V
2267 4822 124 12022 ELECT 220 F 20% 25V
2268 4822 124 12022 ELECT 220 F 20% 25V
2269
5322 121 42386 FILM 100NF 0.05 63V
2272
2273
N 4822 124 80141 CER. 10NF 10% 50V
2276
2283 4822 124 21913 ELECT 1 F 20% 63V
RESISTORS
3251 4822 116 52176 10E 5% 0.5W
3252 4822 116 52176 10E 5% 0.5W
3253 4822 116 83874 220K 5% 0.5W
3254 4822 116 83874 220K 5% 0.5W
3255 4822 050 11002 1K00 1% 0.4W
3256 4822 050 11002 1K00 1% 0.4W
3257 4822 116 52264 27K 5% 0.5W
3258 4822 116 52264 27K 5% 0.5W
3259 4822 116 52213 180E 5% 0.5W
3260 4822 116 52213 180E 5% 0.5W
3261 4822 116 83872 220R 5% 0.5W
3262 4822 116 83872 220R 5% 0.5W
3263 4822 100 11213 VARIAB. 22K 30% LIN 0.1W
3264 4822 100 11213 VARIAB. 22K 30% LIN 0.1W
3265
4822 116 83872 220R 5% 0.5W
3270
3271 4822 116 52243 1K5 5% 0.5W
3272 4822 116 52243 1K5 5% 0.5W
3273 4822 050 11002 1K00 1% 0.4W
3274 4822 050 11002 1K00 1% 0.4W
3275 4822 116 83884 47K 5% 0.5W
3276 4822 116 83884 47K 5% 0.5W
3277 PM7000 4822 116 83872 220R 5% 0.5W
3277 PM8000 4822 116 52228 680E 5% 0.5W
3278 PM7000 4822 116 83872 220R 5% 0.5W
3278 PM8000 4822 116 52228 680E 5% 0.5W
3279
4822 050 11002 1K 1% 0.4W
3284
