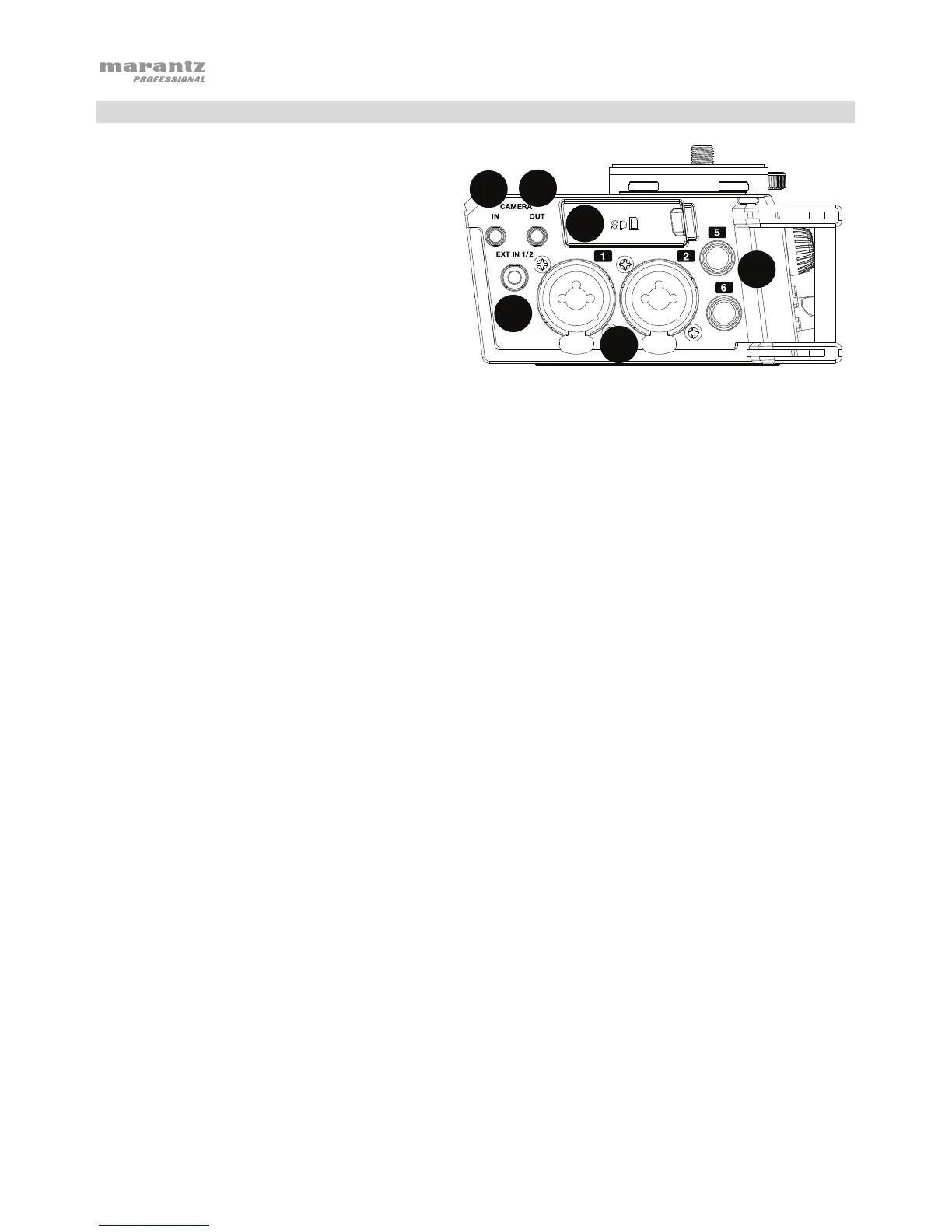

Left Side Panel
1. XLR+1/4” TRS inputs: Connect a
microphone or line-level device to these
XLR+1/4” (6.35 mm) inputs.
2. 1/8” (3.5 mm) Camera Input: Connect
the audio output of a camera to this 1/8”
(3.5 mm) TRS input.
3. 1/8” (3.5 mm) Camera Output:
Connect this 1/8” (3.5 mm) TRS output
to the audio input of a camera. Go to
Menu > Output Control to adjust the
volume output.
4. External Input: Connect a stereo
microphone or audio source to this 1/8” (3.5 mm) TRS input. See Menu > Mic Power to learn
how to turn phantom power on or off for this input.
5. SD Card Slot: Insert an SD card here.
6. 1/4” (6.35 mm) Inputs: Connect a mic-level or line-level device to these 1/4” (6.35 mm) inputs
using the included XLRF-1/4" cables. Phantom power can be supplied to these inputs.
Note: Before connecting any device (condenser or dynamic microphones, line-level devices,
etc.) to any XLR, 1/4” input, or external inputs, ensure phantom power is turned off. Connecting
or disconnecting devices to or from these inputs while phantom power is on can damage the
device or PMD-706.
