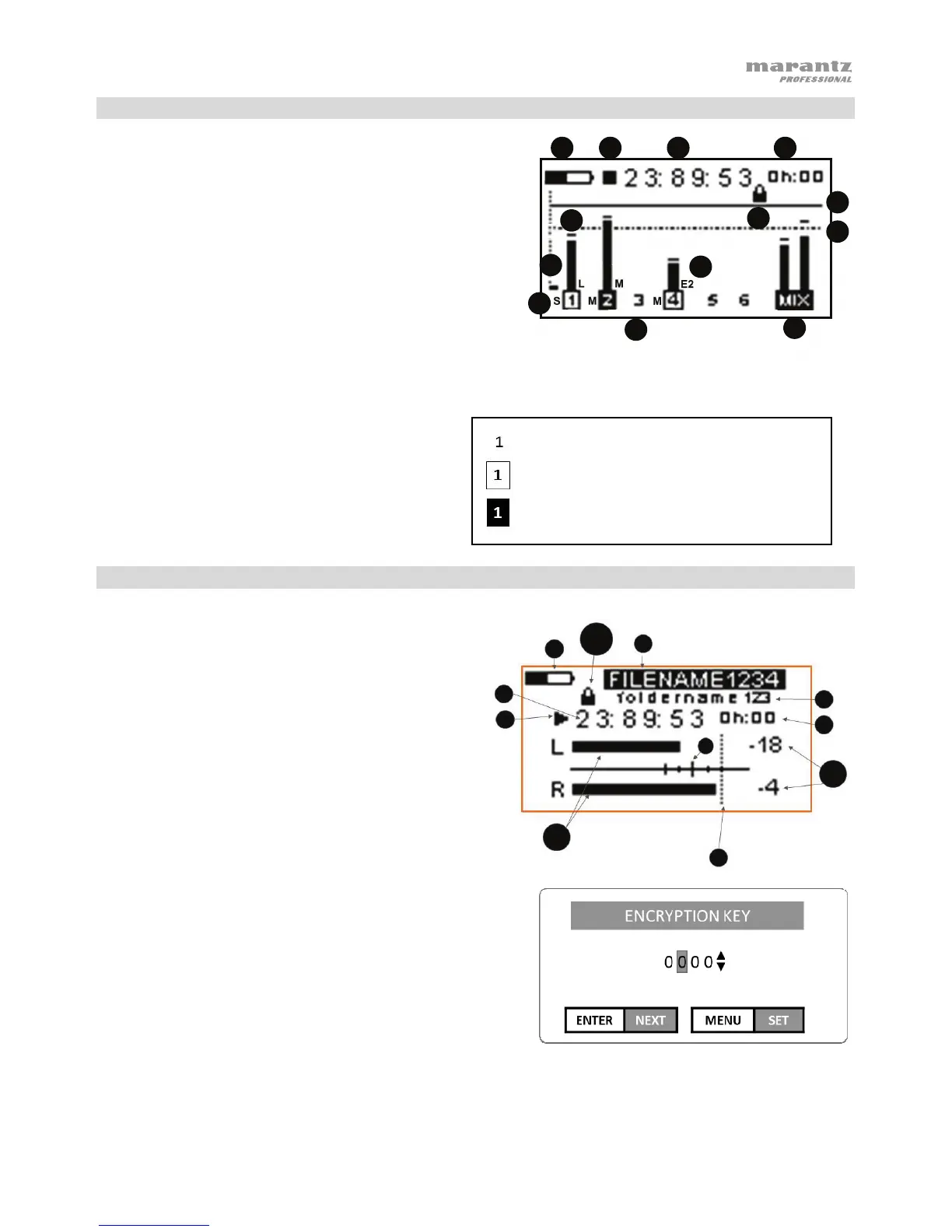

Home Screen Display
1. Record/Pause/Stop indicator
2. Elapsed time
3. Remaining record time available
4. 0 dB reference line
5. -12 dB reference line
6. Battery indicator
7. Mix channel
8. Channels 1-6 setup info
9. Signal indicator bar
10. Peak threshold
11. Recording type: stereo (S), mono (M), dual (D)
12. Input setting: mic (M), line (L), Ext 1 (E1), Ext 2
(E2)
13. Encryption on/off
Play Screen
1. Battery indicator
2. File name
3. Folder name
4. Running time of playback
5. Remaining time of playback
6. Play/Stop/Pause/FF/Rewind indicator
7. Left/Right playback meters
8. 0 dB level
9. Level indicators: -6 dB, -12 dB (major),
-15 dB, -18 dB
10. Digital readout of playback level
11. Encryption on/off: See Menu 7 – Rec Set for
details on how to enter an encryption key.
Note: If you try to play an encrypted file, you
must enter the encryption key first.
1 2 3
4
5
6
7
8
9
10
10
11
11
12
12
13
13
Channel Reporting Symbols
Channel is active and has NO phantom power applied
Channel is not active
Channel is active and has phantom power applied
1
1
2
3
4
5
6
7
8
9
10
10
11
11
