SCLK

MCLK

LRCK

SDATA

AOUTL+

AOUTR+

SERIAL INTERFACE

AND FORMAT SELECT

INTERPOLATION

SOFT MUTE

∆Σ

MODULATOR

DYNAMIC

DE-EMPHASIS

SWITCHED

AOUTL-

AOUTR-

FILT+

FILTER

INTERPOLATION

FILTER

MULTI-BIT

∆Σ

MODULATOR

MULTI-BIT

ELEMENT

MATCHING

LOGIC

DYNAMIC

ELEMENT

MATCHING

LOGIC

CAPACITOR-DAC

AND FILTER

SWITCHED

CAPACITOR-DAC

AND FILTER

VREF CMOUTFILT-

VOLTAGE REFERENCE

HARDWARE MODE CONTROL

CLOCK

DIVIDER

(CONTROL PORT)

(AD0/CS)

M3 M2

(AD1/CDIN) (SCL/CCLK)

(SDA/CDOUT)

RESET MUTEC MUTE

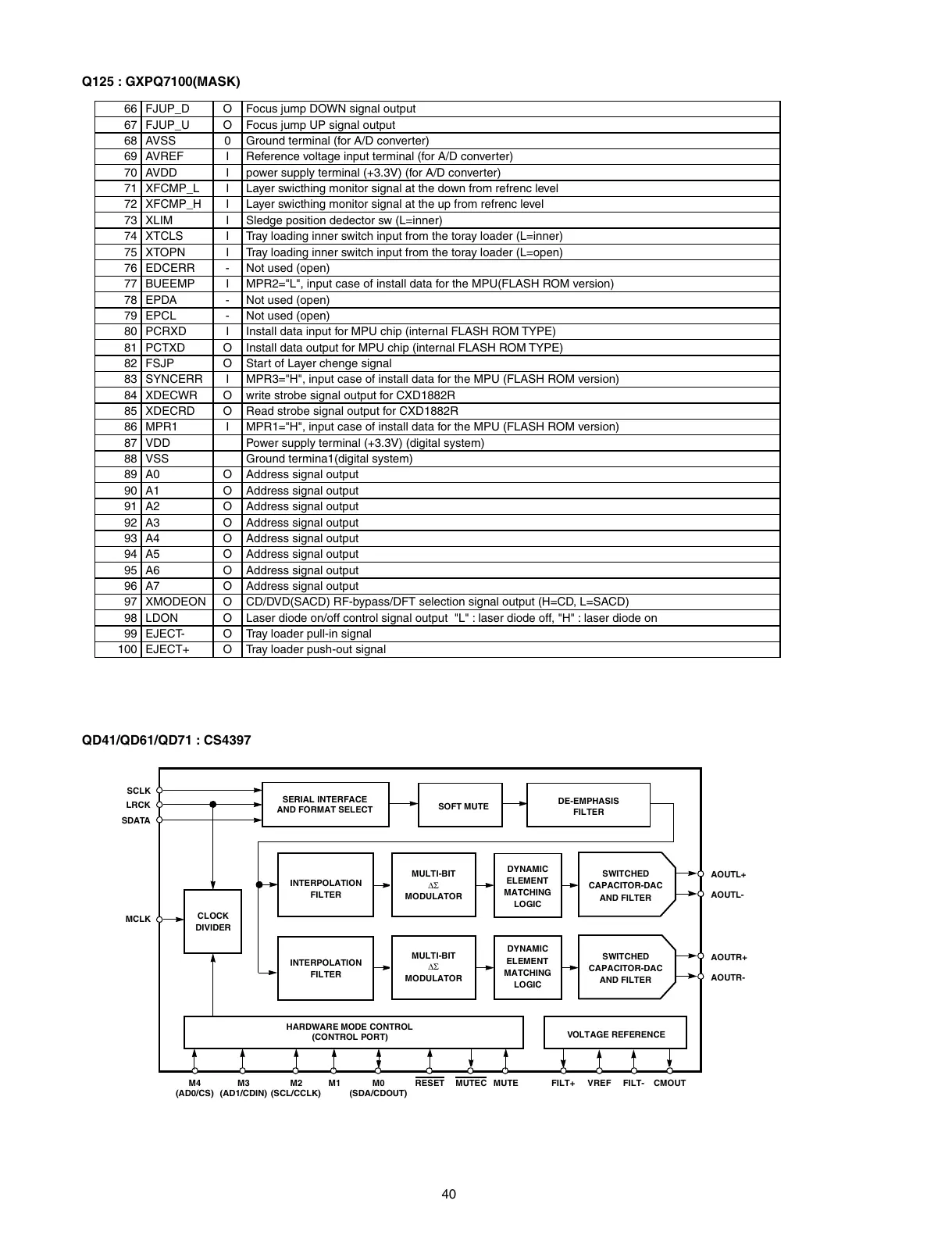

Q125 : GXPQ7100(MASK)

QD41/QD61/QD71 : CS4397

66 FJUP_D O Focus jump DOWN signal output

67 FJUP_U O Focus jump UP signal output

68 AVSS 0 Ground terminal (for A/D converter)

69 AVREF I Reference voltage input terminal (for A/D converter)

70 AVDD I power supply terminal (+3.3V) (for A/D converter)

71 XFCMP_L I Layer swicthing monitor signal at the down from refrenc level

72 XFCMP_H I Layer swicthing monitor signal at the up from refrenc level

73 XLIM I Sledge position dedector sw (L=inner)

74 XTCLS I Tray loading inner switch input from the toray loader (L=inner)

75 XTOPN I Tray loading inner switch input from the toray loader (L=open)

76 EDCERR - Not used (open)

77 BUEEMP I MPR2="L", input case of install data for the MPU(FLASH ROM version)

78 EPDA - Not used (open)

79 EPCL - Not used (open)

80 PCRXD I Install data input for MPU chip (internal FLASH ROM TYPE)

81 PCTXD O Install data output for MPU chip (internal FLASH ROM TYPE)

82 FSJP O Start of Layer chenge signal

83 SYNCERR I MPR3="H", input case of install data for the MPU (FLASH ROM version)

84 XDECWR O write strobe signal output for CXD1882R

85 XDECRD O Read strobe signal output for CXD1882R

86 MPR1 I MPR1="H", input case of install data for the MPU (FLASH ROM version)

87 VDD Power supply terminal (+3.3V) (digital system)

88 VSS Ground termina1(digital system)

89 A0 O Address signal output

90 A1 O Address signal output

91 A2 O Address signal output

92 A3 O Address signal output

93 A4 O Address signal output

94 A5 O Address signal output

95 A6 O Address signal output

96 A7 O Address signal output

97 XMODEON O CD/DVD(SACD) RF-bypass/DFT selection signal output (H=CD, L=SACD)

98 LDON O Laser diode on/off control signal output "L" : laser diode off, "H" : laser diode on

99 EJECT- O Tray loader pull-in signal

100 EJECT+ O Tray loader push-out signal

All manuals and user guides at all-guides.com

Other manuals for Marantz SA-17S1

User Guide27 pages

Specifications4 pages

Questions and Answers:

Need help?

Do you have a question about the Marantz SA-17S1 and is the answer not in the manual?

Marantz SA-17S1 Specifications

Audio Specifications

frequency response (SACD)	2Hz-50kHz (+0, 3dB)
dynamic range (SACD)	114dB
signal to noise ratio (SACD)	114dB
total harmonic distortion (SACD)	0, 000008
channel separation (SACD)	100dB
frequency response (CDDA)	2Hz-20kHz
dynamic range (CDDA)	100dB
signal to noise ratio (CDDA)	114dB
total harmonic distortion (CDDA)	0, 00002
channel separation (CDDA)	100dB
