CONNECTIONS
Depending on your amplifier/receiver/Stereo System, there are various ways to connect to this player. For
correct connection please refer to instruction manuals of stereo system to be connected.
Caution: Do not connect output from this unit to PHONO input of your audio system.

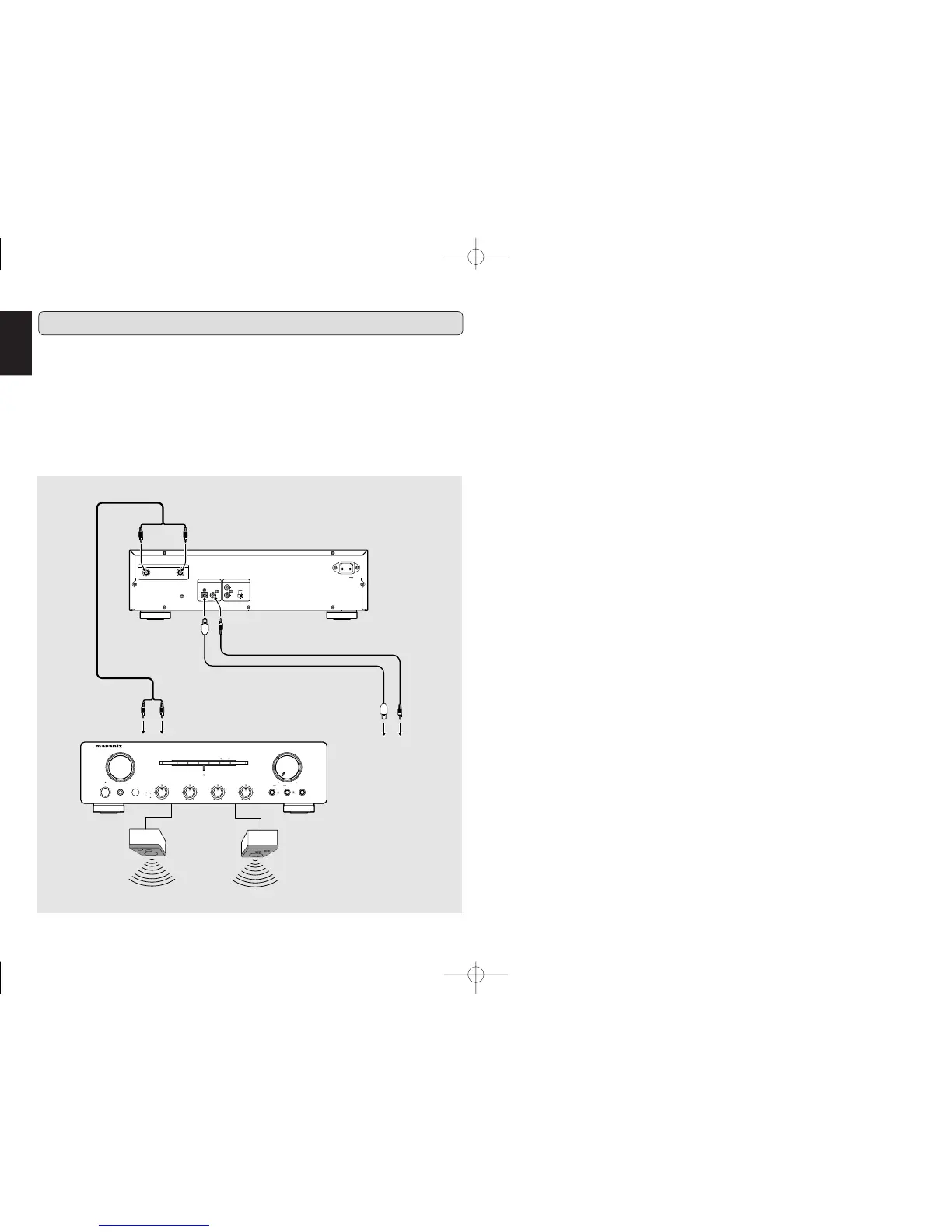

1. Connect the audio cable q to this unit’s front speaker outputs and the stereo inputs on your amplifier,
receiver or stereo system.
2. Connect the optical cable w, coaxial cable e to the digital input on your AV amplifier, D/A converter, CD-
R, etc..
* Signal will be output from the digital audio out jacks (OPT./COAX.) only when an Audio CD disc is played.
No signal is output when playing a Super Audio CD.
AC INAC IN
OPT. COAX.
DIGITAL AUDIO OUT REMOTE CONTROL
EXT.
INT.
OUT
IN
RL
ANALOG OUTPUT
MUTEMUTE
RECORDERRECORDER 2211 AUX/DVDAUX/DVDTUNERTUNERPHONOPHONO CDCD
STANDBYSTANDBY
SPEAKERSSPEAKERS
OFFOFF
ONON
INTEGRATED AMPLIFIERINTEGRATED AMPLIFIER
TREBLETREBLE BALANCEBALANCE
POWER ON/OFFPOWER ON/OFF
PHONESPHONES
BASSBASS
RECORDER2RECORDER2
INPUT SELECTORINPUT SELECTOR
RRLL
VOLUMEVOLUME
++
--
++
--
1 21 2
2 12 1
RECORDERRECORDER
TUNERTUNER
PHONOPHONO
MAXMAXMINMIN
11
SOURCE DIRECTSOURCE DIRECT
22
COPYCOPY
OFFOFF
REC SELECTORREC SELECTOR
CDCD
AUX/DVDAUX/DVD
ONON
OFFOFF
To Analog Audio output
(white)
(red)
To Digital Audio
output
w
(Optional)
e
(Optional)
Left
speaker
Right
speaker
Audio cable q
(Supplied)
To audio input
terminals on amplifier
Connect to digital input
terminals of receiver, D/A
converter or CD recorder,
etc..
